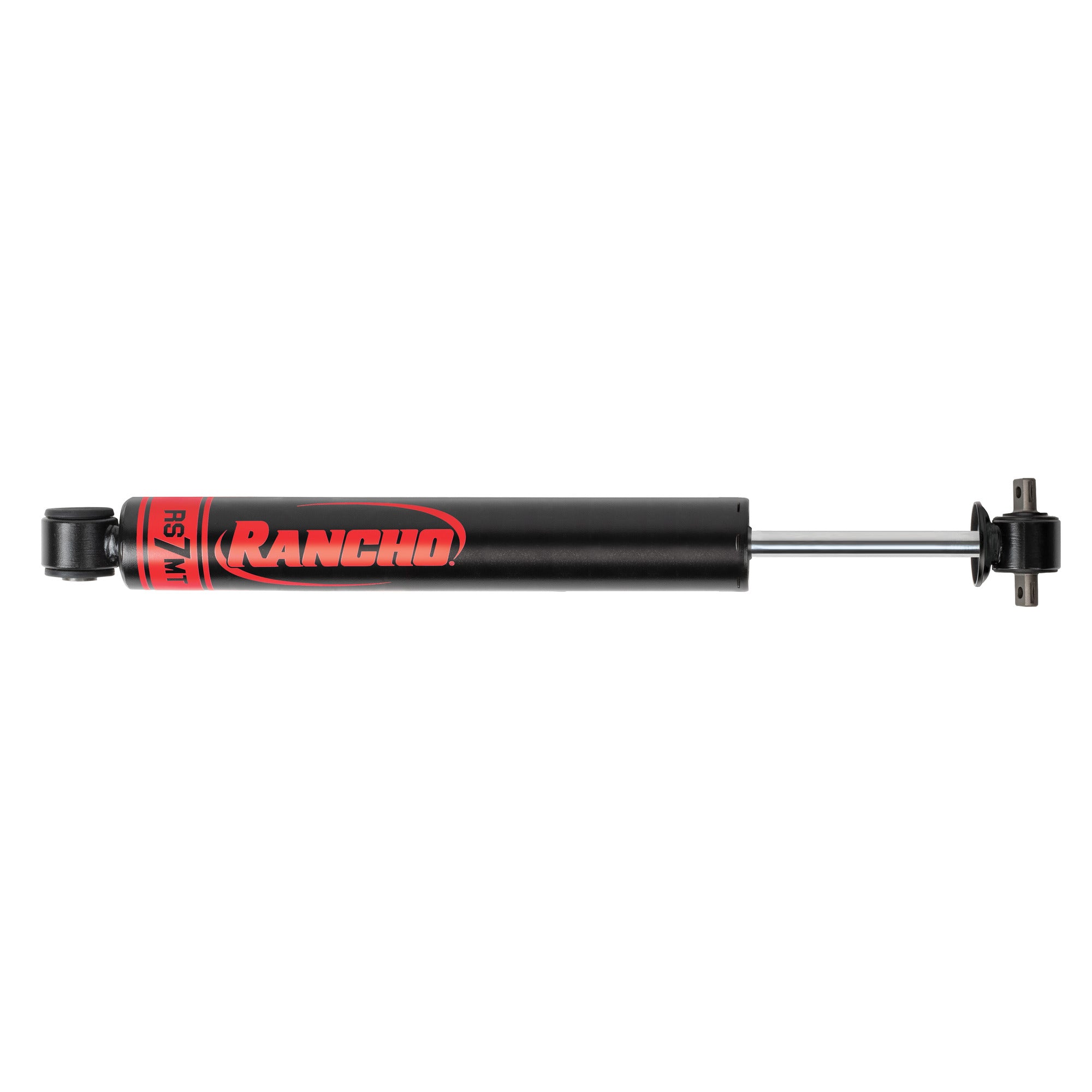

Rancho RS77328 Rear RS7MT Shock Jeep Wrangler, Wrangler JK
Application tuned for precision on-road and off-road handling, Rancho RS7MT monotube shocks are highly effective in the dissipation of heat, making them ideal for extreme off-road use and larger wheel and tire packages. RS7MT shocks feature an integrated dirt wiper sealing system that keeps dirt and debris out, hardened piston rod that resists scuffs and corrosion plus an internal rebound bumper to smooth out your ride on any terrain.
Rancho RS7MT Shock Absorber RS77328
Adjustable Damping - No
Body Diameter - 1.97
Body Diameter - 2
Body Length - 14.61
Boot Included - No
Color - Black
Compressed Length - 15.62
Extended Length - 23.87
Gas Charged - Yes
Hydraulic Lockout - No
Includes Bump Stop - No
Internal Construction Type - Single Tube
Internal Rebound Bumper - Yes
Lower Mount Code - LS38
Lower Mount Type - Loop Bushing and Sleeve Mount - 1/2" Sleeve ID X 1.1/2" Sleeve OAL
Part Description - Shock Absorber
Parts Pack(s) - None
Shock Absorber Body End Measuring Point - Eyelet
Shock Absorber Rod End Measuring Point - Eyelet
Travel Length - 8.25
Upper Mount Code - XP12
Upper Mount Type - Cross Pin Mount - Open Ended, 3/8" Hole ID (Both Ends) X 3.3/16" Pin Length (Hole Center to Center)
