Features & Benefits

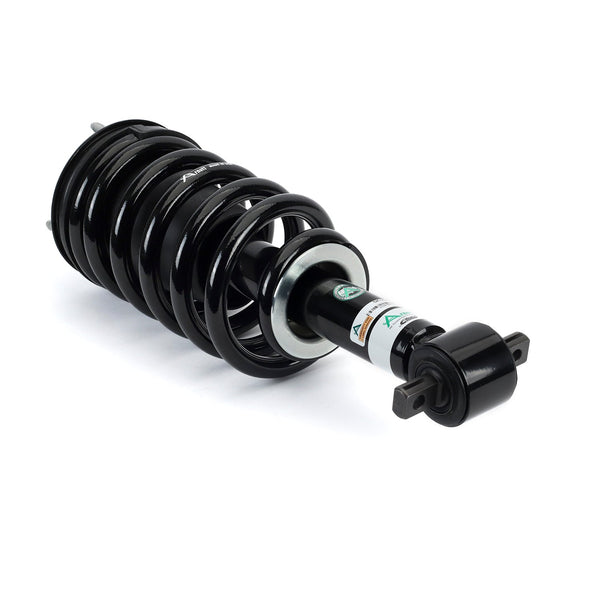

The Arnott SK-3354 coil strut assembly is engineered for the front of 2015-2020 GM Short Wheelbase (2WD) SUVs equipped with Z95 MagneRide. Designed as a direct replacement, it restores the vehicle to proper factory ride height while delivering a smooth, reliable ride. For GMs K2 platform, Arnott offers two ride height solutions. The SK-3354 returns the vehicle to its original height, while the SK-5357 provides an additional 1 inch lift, providing flexibility to match your driving needs. This completely new coil-over strut is built from premium components, including a custom-valved shock absorber and a durable powder-coated coil spring. Every unit is rigorously tested in The Arnott R&D lab and driven across countless miles on test vehicles to ensure long-lasting performance and real-world reliability. The SK-3354 also converts the factory Z95 MagneRide system to Arnott custom-tuned passive valving. An included electronics bypass solution ensures seamless integration. The strut is fully pre-assembled for true plug-and-play installation, fits either the front right or left position, and comes with a detailed installation manual for added convenience. Proudly designed and assembled in the USA, the SK-3354 is recommended to be replaced in pairs for the best results. It is an excellent passive alternative for aging air or electronic suspensions, restoring comfort, stability, and confidence to every drive.
FEATURES
- Converts factory Z95 MagneRide to Arnott's custom-tuned passive valving with included electronics bypass solution
- Restores vehicle to original ride height
- Fits front right or left position
- Fully pre-assembled for Plug-N-Play installation
- Detailed installation manual available
- Designed and assembled in the USA
- Replace in Pairs
SPECIFICATIONS
- Active Or Passive Suspension: Passive
- Adjustable: No
- Adjustable Compression: No
- Adjustable Damping: No
- Adjustable Rebound: No
- Adjustable Ride Height: No
- Air Adjustable: No
- Air Bladder: No
- Air Bladder Material: No
- Air Ride Suspension: No
- Bearing Plate Included: Yes
- Bladder Heavy Duty Crimping Rings Included: No
- Bladder Sleeve(s) Included: No
- Bladder(s) Included: No
- Body Diameter: 50
- Body End Measuring Point: Center Eye
- Boot Color: Black
- Boot Included: Yes
- Coil Over Springs Included: Yes
- Coil Spring Included: Yes
- Compressed Length: 313
- Dust Shield Included: Yes
- Dust Shield Material: Rubber
- Extended Length: 452
- Gas Charged: Yes
- Grade Type: Standard
- Heavy Duty Crimping Rings: No
- Housing Material: Steel
- Internal Construction Type: Twin-tube
- Internal Damper Type: Hydraulic
- Lower Mount Type: Cross Pin
- Lower Mounting Isolator Included: Yes
- Mounting Hardware Included: Yes
- New Or Remanufactured: New
- Outer Housing Diameter: 50
- Progressive Spring Rate: No
- Protective Aluminum Can: No
- Shock Absorber Rod End Measuring Point: Shoulder of Stud
- Shock Spring Assisted: Yes
- Shock/strut Color: Black
- Spring Isolators Included: Yes
- Spring Rate Type: Linear
- Spring Seat Included: Yes
- Springs Included: Yes
- Travel Length: 139
- Upper Mount Type: Bolt
- Upper Mounting Isolator Included: Yes
Replaces OEM part Numbers: 23151123, 23312167, 23464589, 84061228, 84176631, 84977478
-
