Features & Benefits

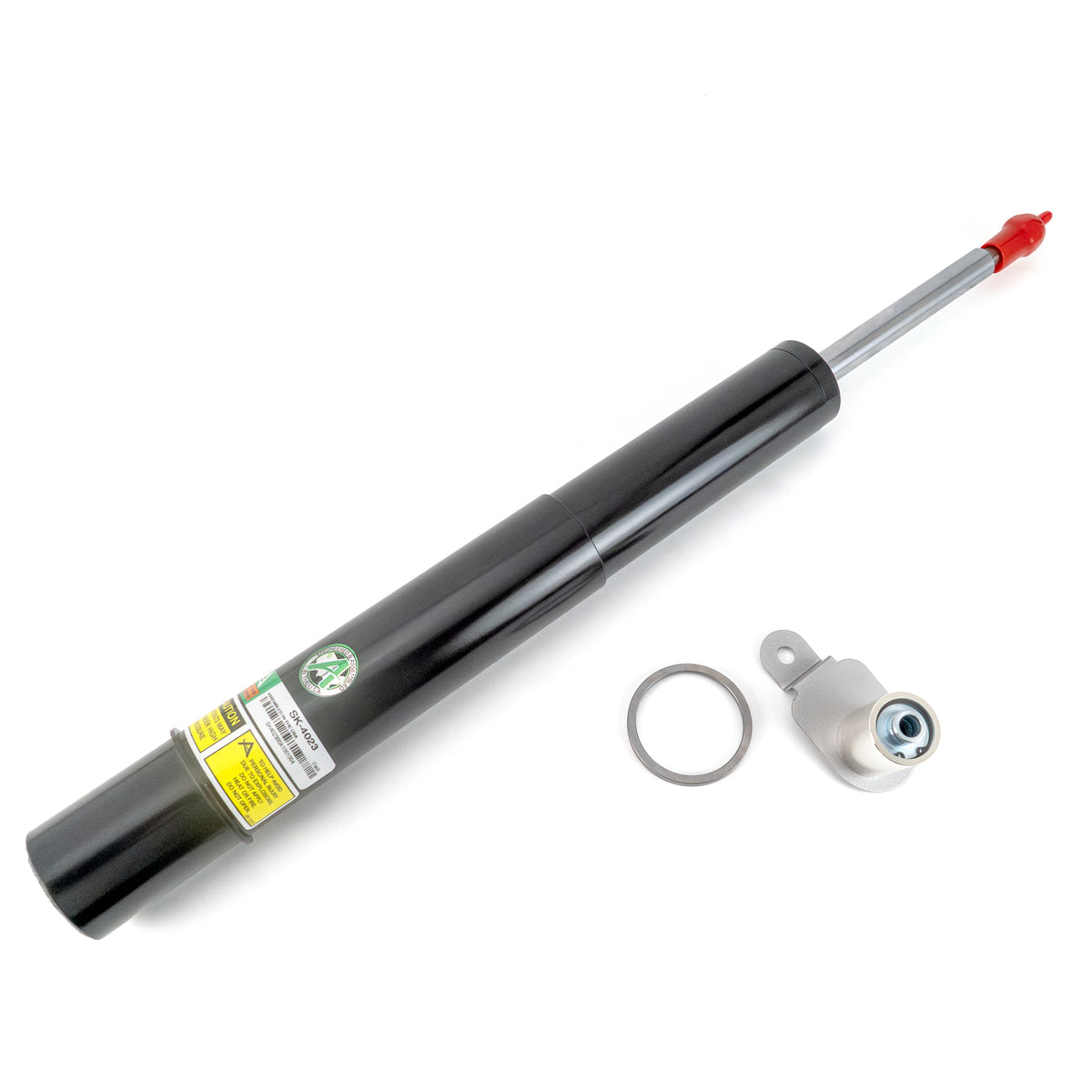

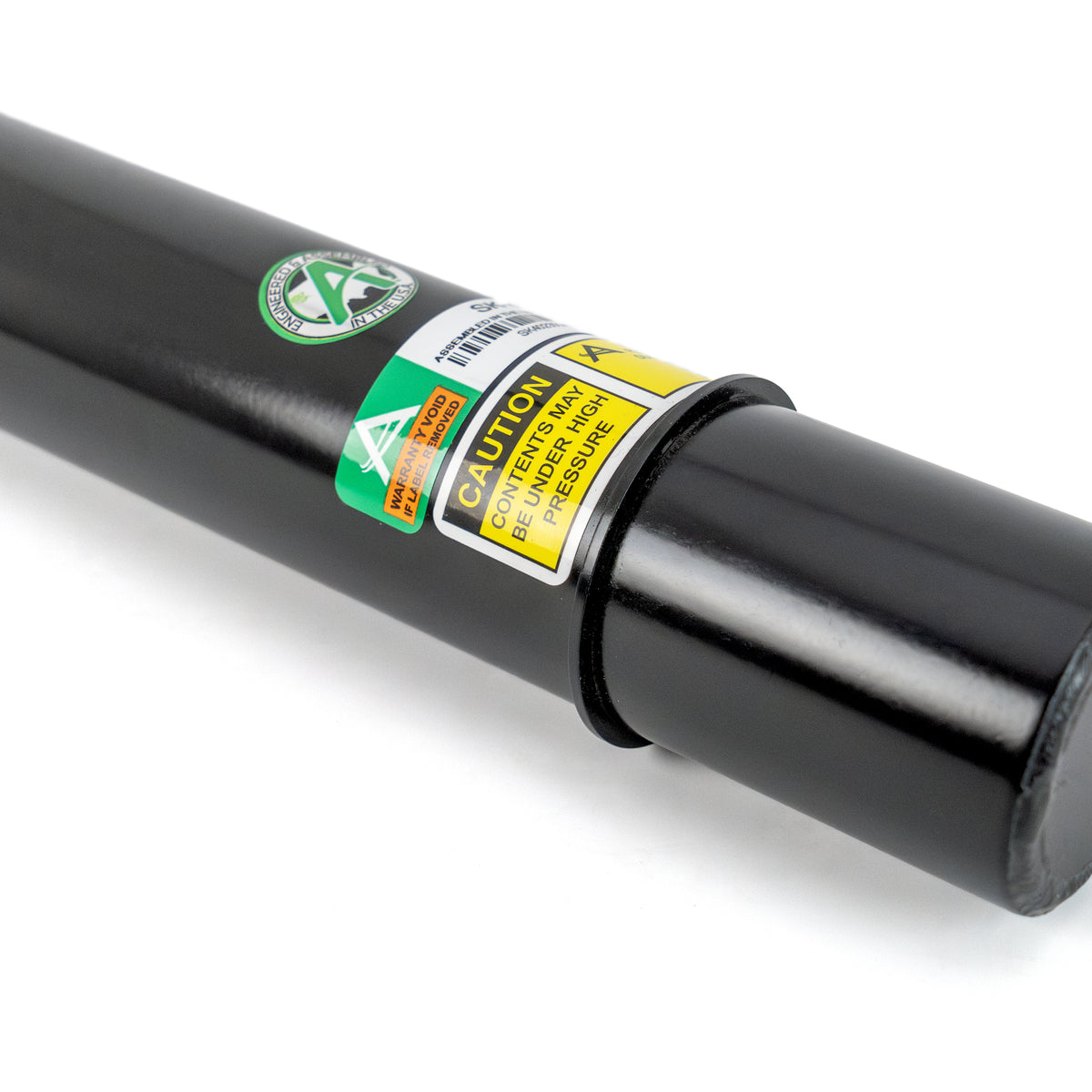

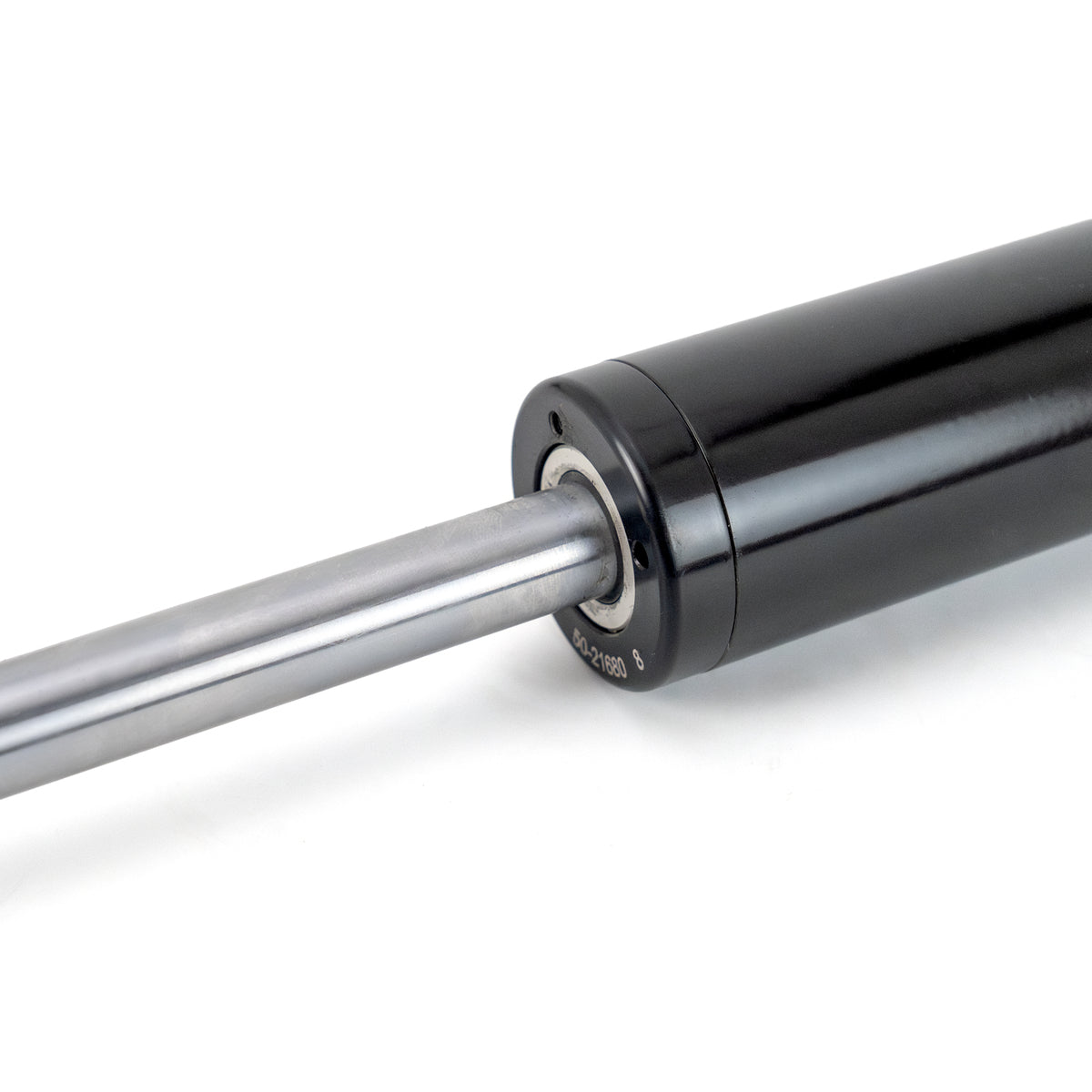

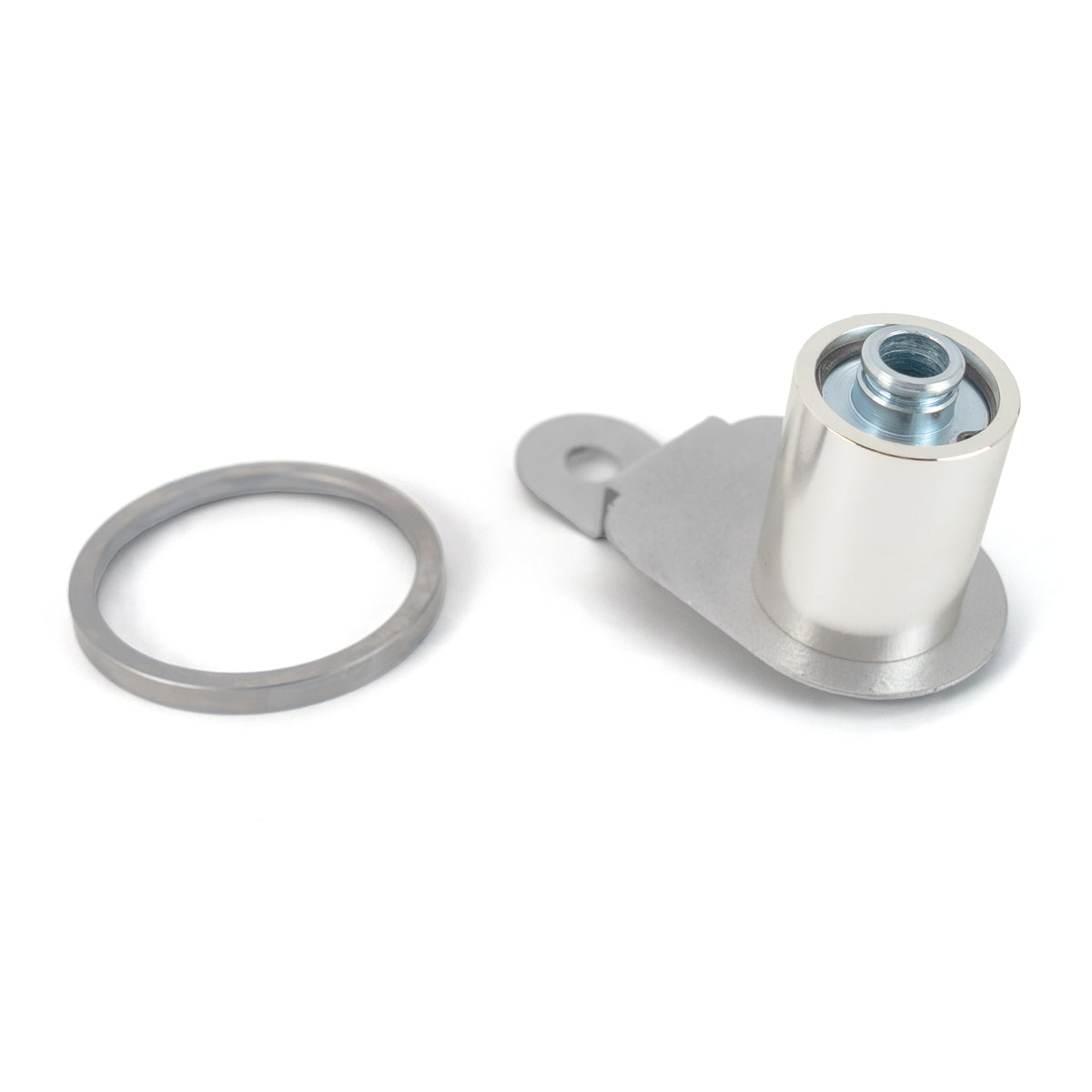

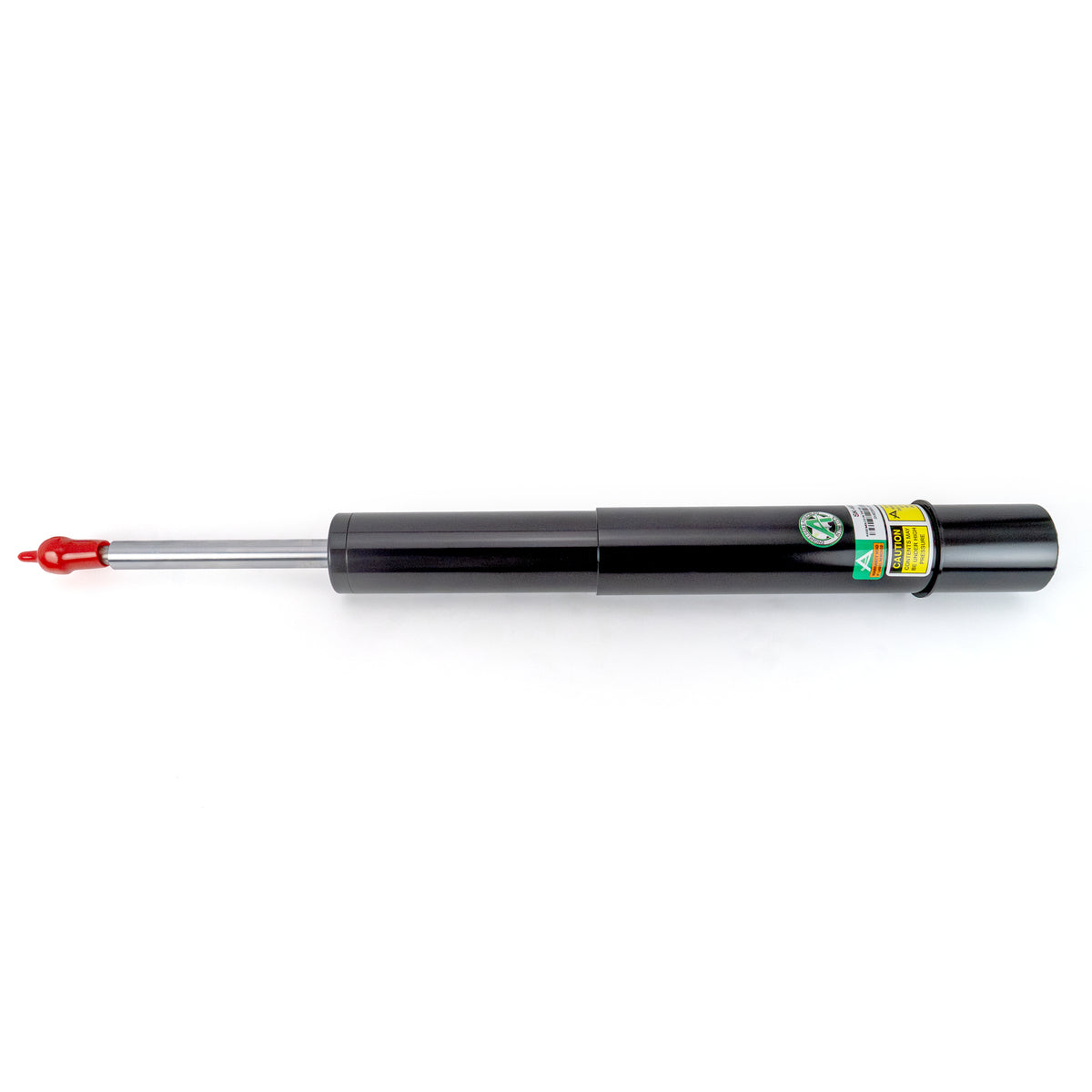

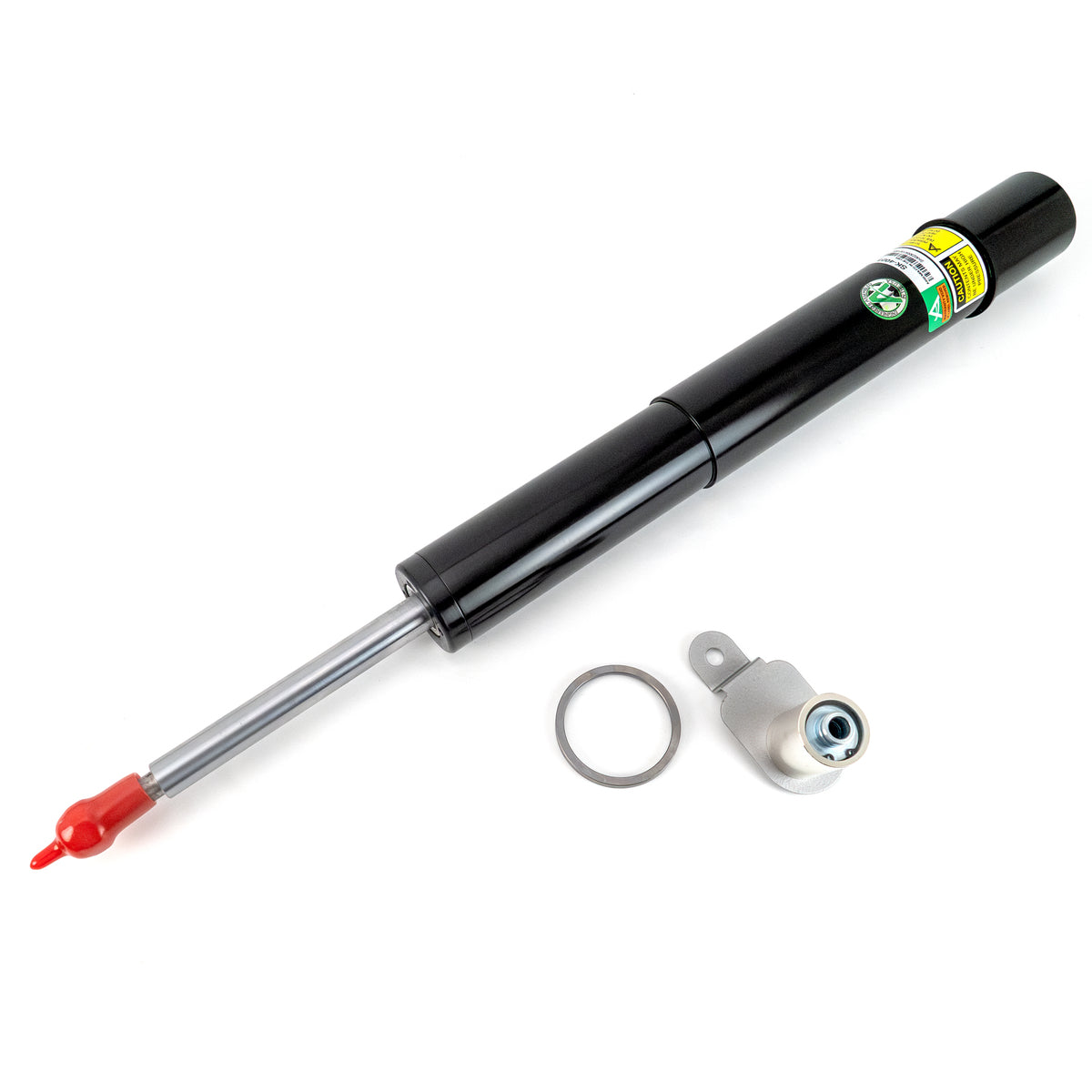

Arnott engineered new aftermarket suspension strut for the front right or left side of the 2018-2020 Land Rover Velar (L560) with CVD. This assembly replaces the OE strut and features a new custom tuned shock absorber to provide an excellent ride and outstanding performance. The Arnott strut is assembled in the USA with Tier 1 air spring sleeve protected by an aluminum can along with an aluminum top mount. The new strut is assembled in the USA with Arnott's long-lasting seals, O-ring and bump stop.
FEATURES
- Exclusively for Land Rover Range Rover Velar (L560) with Coil Suspenson
- Fits FRONT RIGHT or LEFT
- Tested extensively to ensure proper functionality and longevity
- Designed & assembled in the USA
- Replace in Pairs
- NOTE: Spring seat should be reused from original assembly
SPECIFICATIONS
- Active Or Passive Suspension: Passive
- Adjustable: No
- Adjustable Compression: No
- Adjustable Damping: No
- Adjustable Rebound: No
- Adjustable Ride Height: No
- Air Adjustable: NO
- Air Bladder: NO
- Air Ride Suspension: NO
- Body End Measuring Point: Center Eye
- Boot Included: No
- Coil Over Springs Included: No
- Compressed Length: 436.9
- Dust Shield Included: No
- Extended Length: 561.3
- Gas Charged: YES
- Grade Type: Standard
- Internal Construction Type: Monotube
- Lower Mount Type: Special
- Lower Mounting Isolator Included: NO
- Mounting Hardware Included: NO
- New Or Remanufactured: New
- Protective Aluminum Can: No
- Shock Spring Assisted: NO
- Shock/strut Color: Black
- Spring Isolators Included: NO
- Spring Rate Type: Linear
- Spring Seat Included: NO
- Springs Included: NO
- Travel Length: 126.4
- Upper Mount Type: Special
- Upper Mounting Isolator Included: NO
Replaces OEM part Numbers: LR090615
-
