Features & Benefits

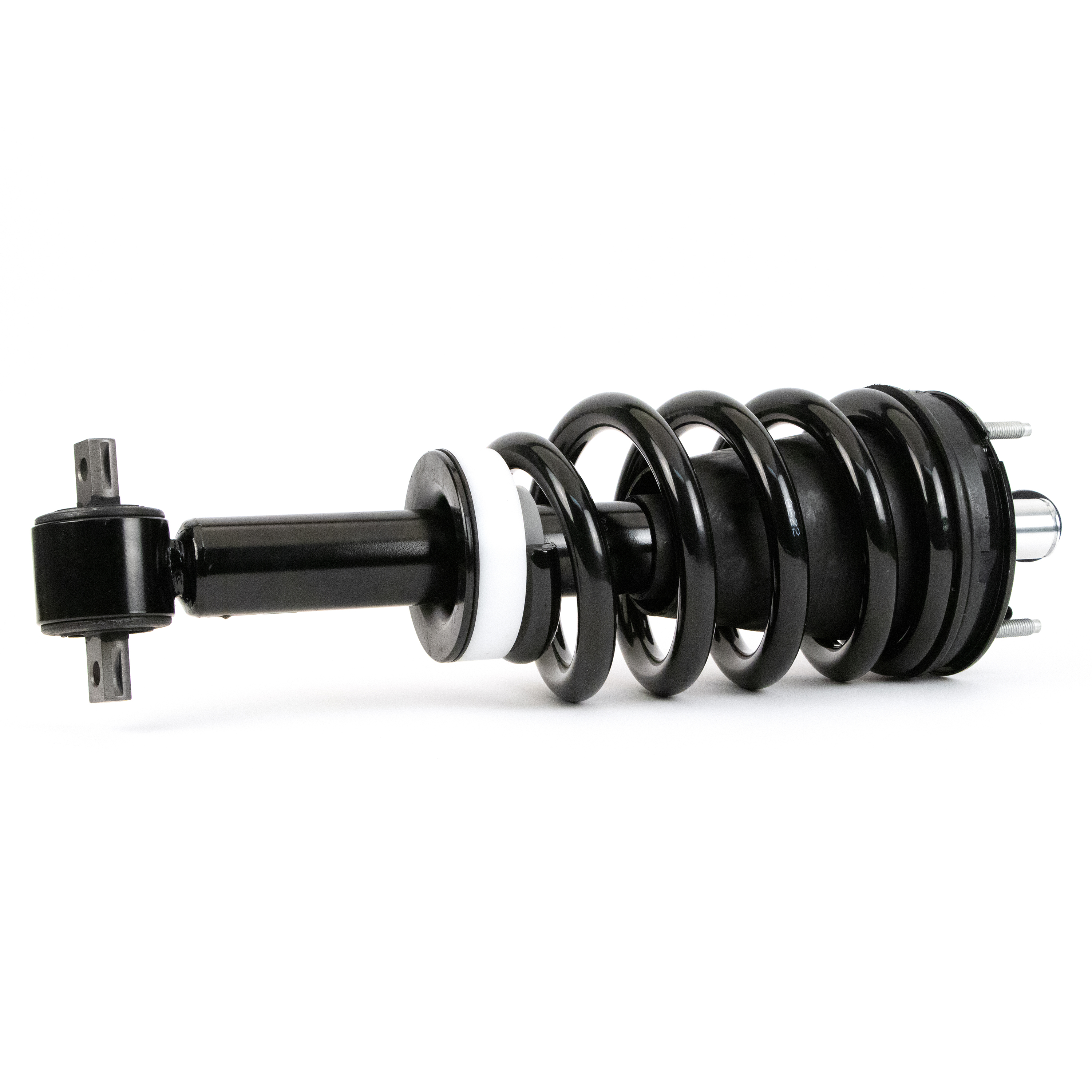

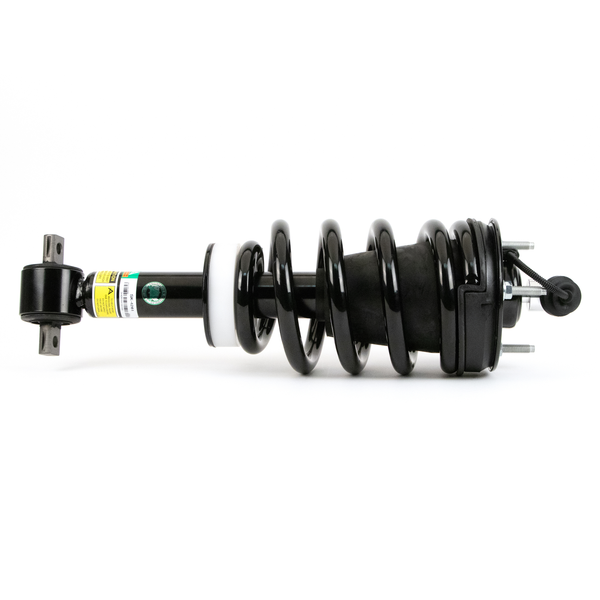

The Arnott SK-4261 coil strut assembly is designed for the front of 2014-2018 GMC Sierra and Chevrolet Silverado trucks (4WD) equipped with Z95 MagneRide. This direct replacement assembly is engineered to restore factory ride height and dependable performance. The SK-4261 also gives drivers added flexibility. In addition to fitting truck applications, it can be used to achieve a 1 inch lift on 2015-2020 GM Short Wheelbase (4WD) and Long Wheelbase (RWD/4WD) SUVs, as well as 2014-2018 Sierra and Silverado (2WD) models with MagneRide. Each unit is completely new and built from premium components, including a powder-coated coil spring and a custom-valved shock absorber. Arnott engineers validate every strut through rigorous lab testing and thousands of miles on our test fleet, ensuring performance, durability, and comfort under real-world conditions. The SK-4261 converts the factory Z95 MagneRide to Arnott custom-tuned passive valving, with an included electronics bypass solution for seamless integration. The strut fits either front position, arrives fully pre-assembled for plug-and-play installation, and includes a detailed installation manual. Designed and assembled in the USA, the SK-4261 is recommended to be replaced in pairs for the best results. It is an excellent passive solution for aging electronic or air suspension systems, restoring confidence, stability, and a smooth ride.
FEATURES
- Converts factory Z95 MagneRide to Arnott's custom-tuned passive valving with included electronics bypass solution
- Restores vehicle to original ride height
- Fits front right or left position
- Fully pre-assembled for Plug-N-Play installation
- Detailed installation manual available
- Designed and assembled in the USA
- Replace in Pairs
SPECIFICATIONS
- Active Or Passive Suspension: Passive
- Adjustable: No
- Adjustable Compression: No
- Adjustable Damping: No
- Adjustable Rebound: No
- Adjustable Ride Height: No
- Air Adjustable: No
- Air Bladder: No
- Air Bladder Material: No
- Air Ride Suspension: No
- Bearing Plate Included: Yes
- Bladder Heavy Duty Crimping Rings Included: No
- Bladder Sleeve(s) Included: No
- Bladder(s) Included: No
- Body Diameter: 50.038
- Body End Measuring Point: Center Eye
- Boot Color: Black
- Boot Included: Yes
- Coil Over Springs Included: Yes
- Coil Spring Included: Yes
- Compressed Length: 312.928
- Dust Shield Included: Yes
- Dust Shield Material: Rubber
- Extended Length: 452.12
- Gas Charged: Yes
- Grade Type: Standard
- Heavy Duty Crimping Rings: No
- Housing Material: Steel
- Internal Construction Type: Twin-tube
- Internal Damper Type: Hydraulic
- Lower Mount Type: Cross Pin
- Lower Mounting Isolator Included: Yes
- Mounting Hardware Included: Yes
- New Or Remanufactured: New
- Outer Housing Diameter: 50.038
- Progressive Spring Rate: No
- Protective Aluminum Can: No
- Shock Absorber Rod End Measuring Point: Shoulder of Stud
- Shock Spring Assisted: Yes
- Shock/strut Color: Black
- Spring Isolators Included: Yes
- Spring Rate Type: Linear
- Spring Seat Included: Yes
- Springs Included: Yes
- Travel Length: 139.192
- Upper Mount Type: Bolt
- Upper Mounting Isolator Included: Yes
Replaces OEM part Numbers: 23151123, 23312167, 23464589, 84061228, 84176631, 84977478
-
