Features & Benefits

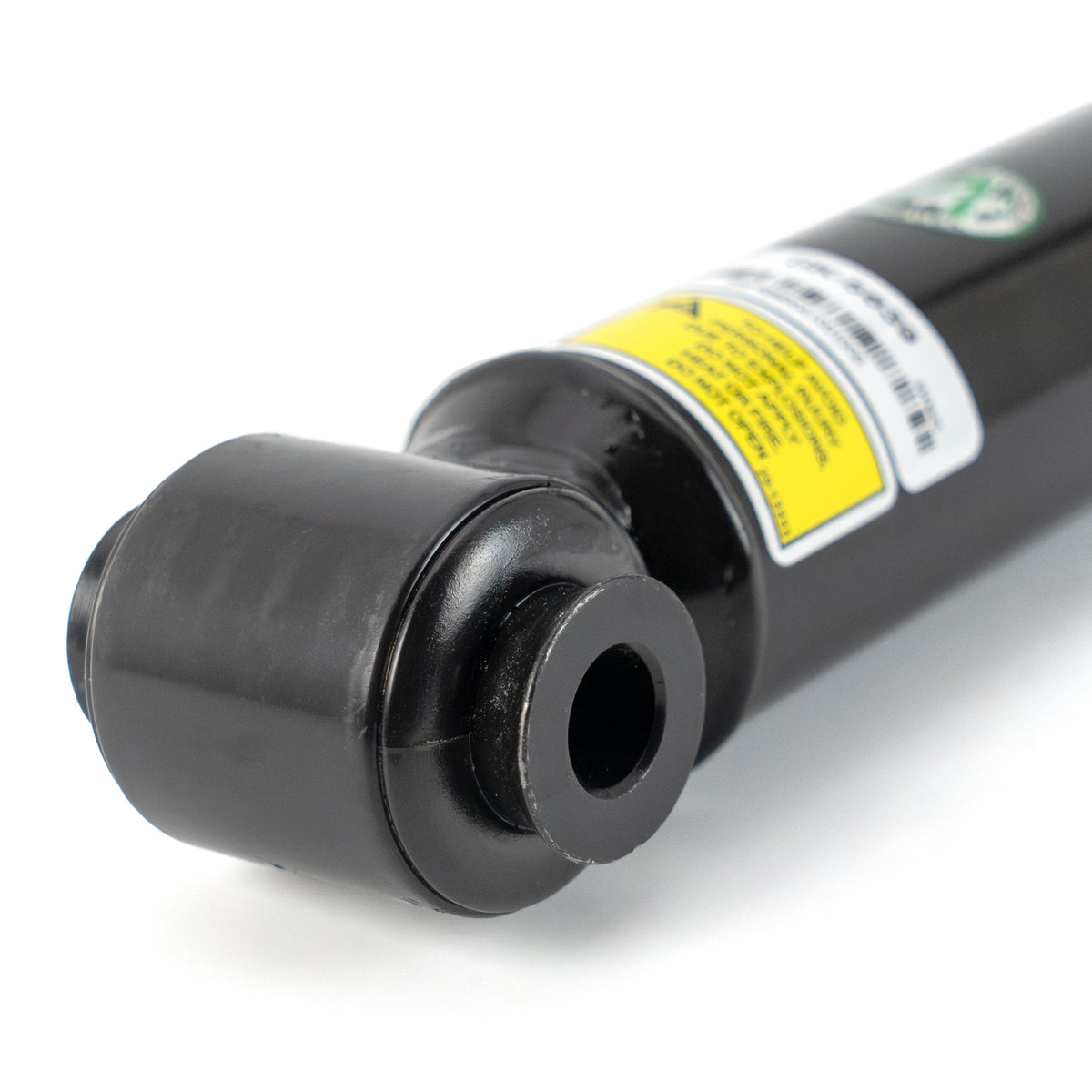

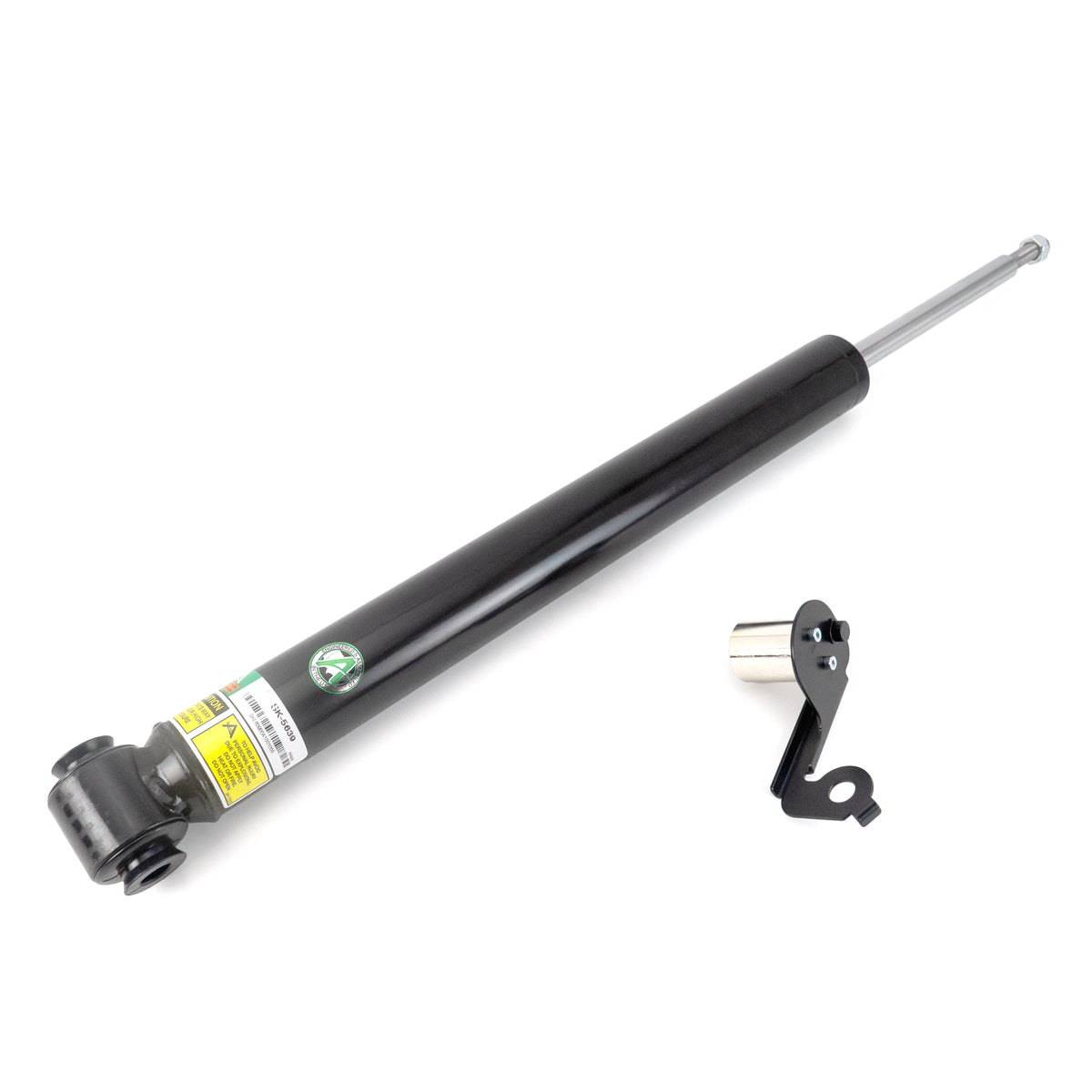

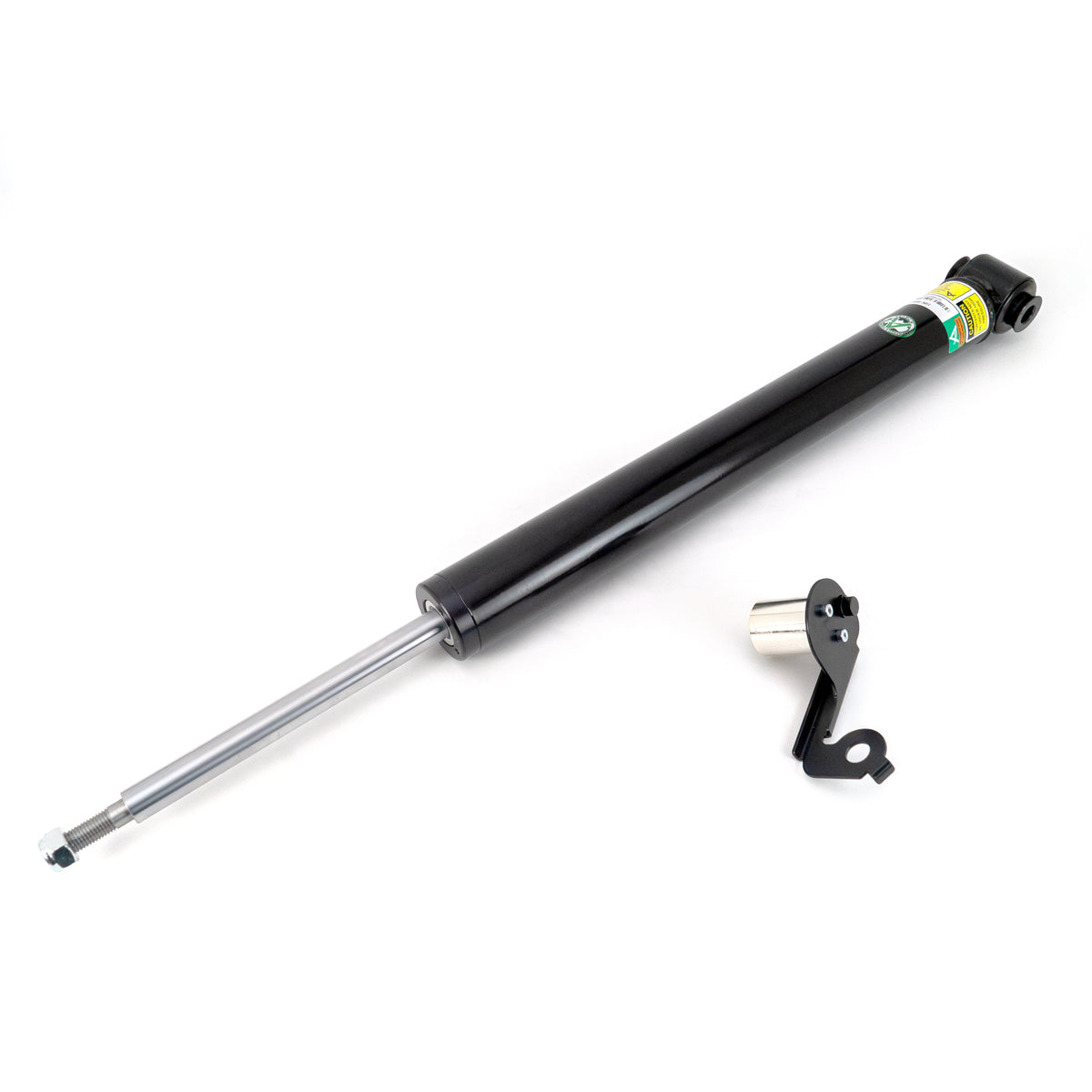

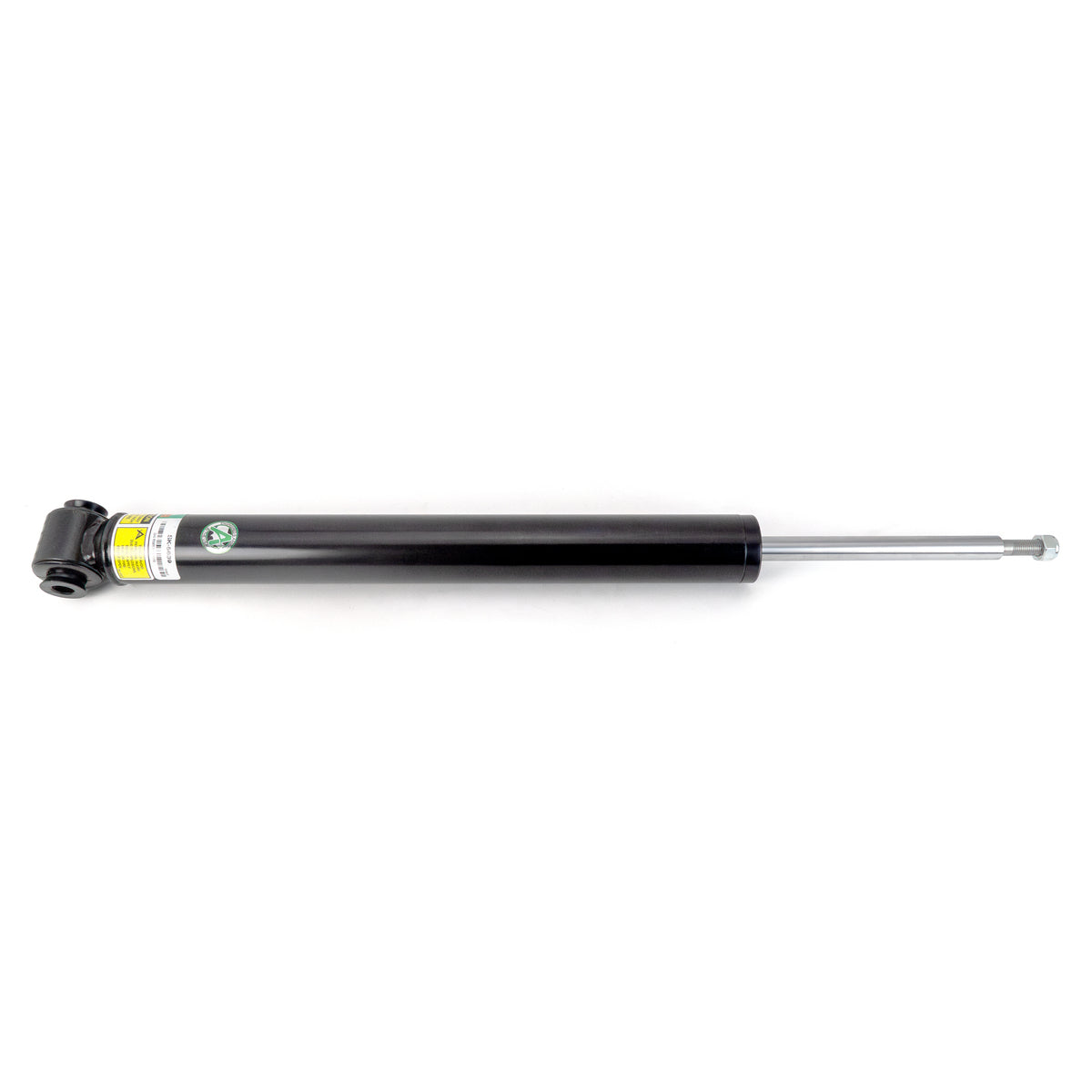

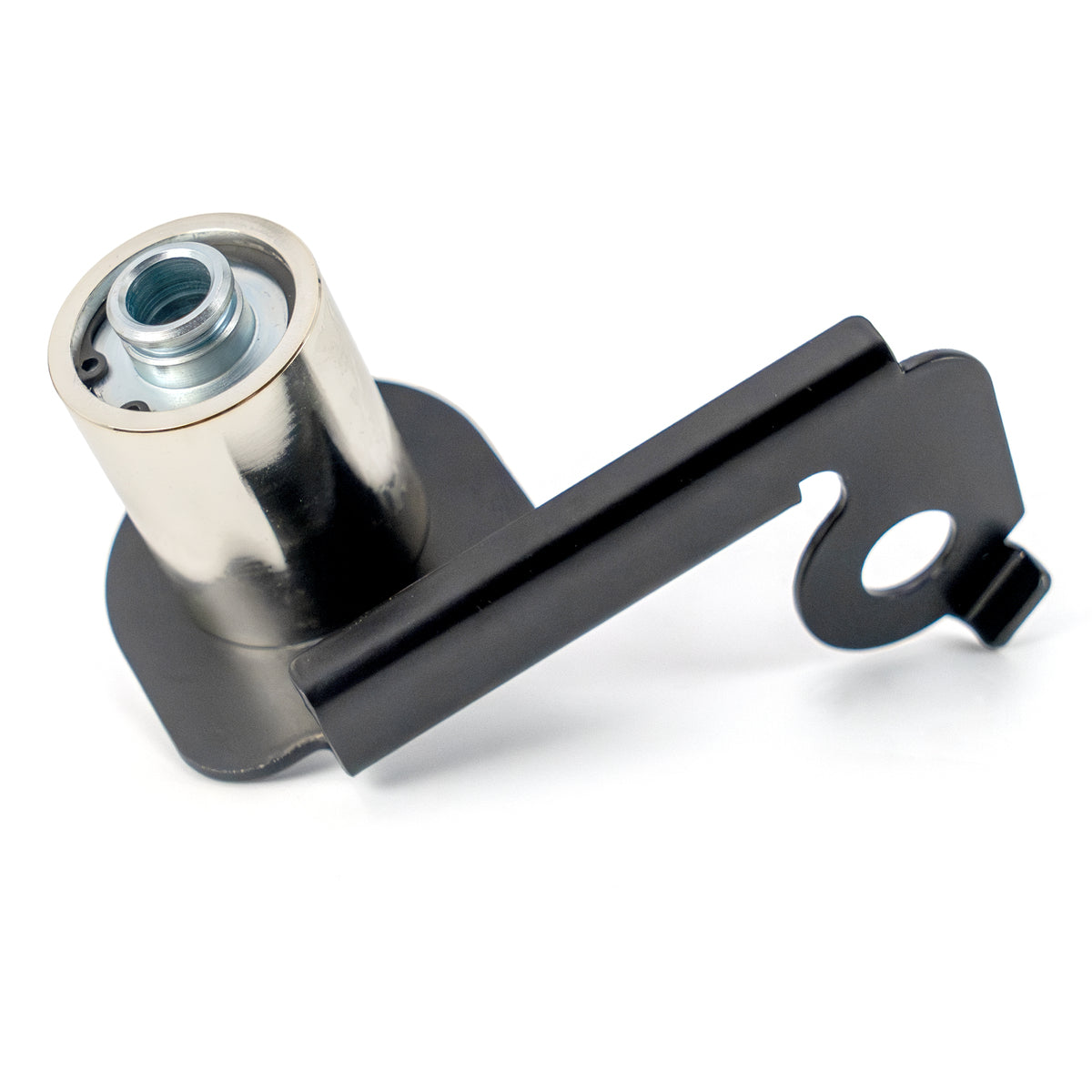

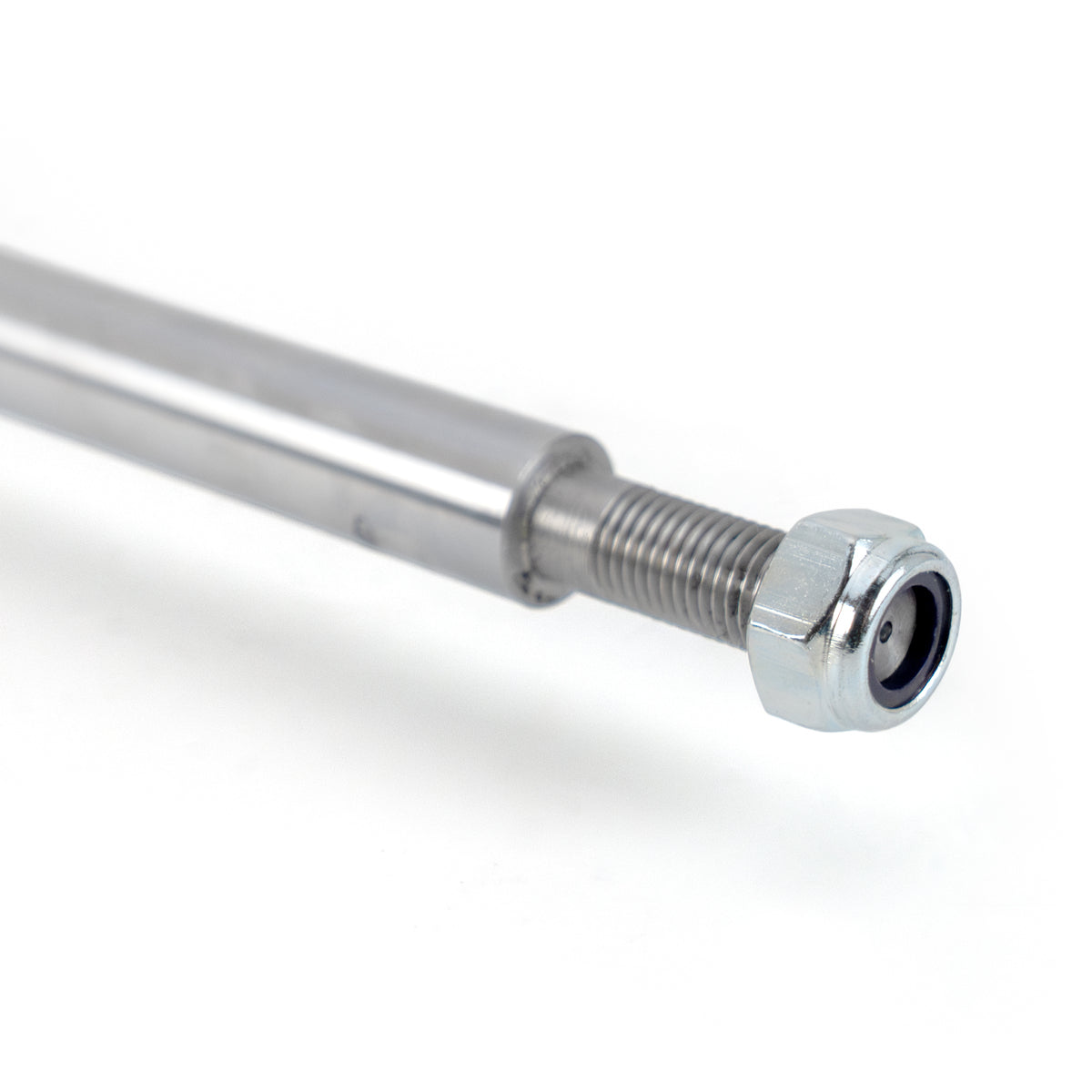

SK-5639 is an Arnott designed new rear shock for the 2018-2020 Land Rover Velar (L560 Chassis) with CVD. This premium mono tube shock, which fits the REAR RIGHT, includes a custom tuned and thoroughly road-tested damper which provides a smooth ride and excellent performance. Included in the Arnott design are new top and bottom mounts, polyurethane bump stop, and a protective dust cover. This aftermarket rear shock is designed, tested and assembled in the USA.
FEATURES
- Adaptive to Passive
- Exclusively for the Land Rover Velar (L560) with CVD
- Fits REAR RT
- Custom Tuned Damper
- Designed & Assembled in the USA
- Premium Shock
SPECIFICATIONS
- Adjustable Damping: No
- Adjustable Ride Height: No
- Air Ride Suspension: YES
- Bearing Plate Included: NO
- Boot Included: No
- Compressed Length: 522
- Extended Length: 667
- Gas Charged: YES
- Grade Type: Standard
- Internal Construction Type: Monotube
- Internal Damper Type: Hydraulic
- Lower Mount Type: Loop Bushing
- Lower Mounting Isolator Included: YES
- Mounting Hardware Included: YES
- New Or Remanufactured: New
- Shock Spring Assisted: NO
- Springs Included: NO
- Travel Length: 145
- Upper Mount Type: Special
- Upper Mounting Isolator Included: NO
Replaces OEM part Numbers: LR106829, LR109360, LR123528, LR147263, LR090656, LR090655, LR108022, LR147262
-
