  • Features & Benefits

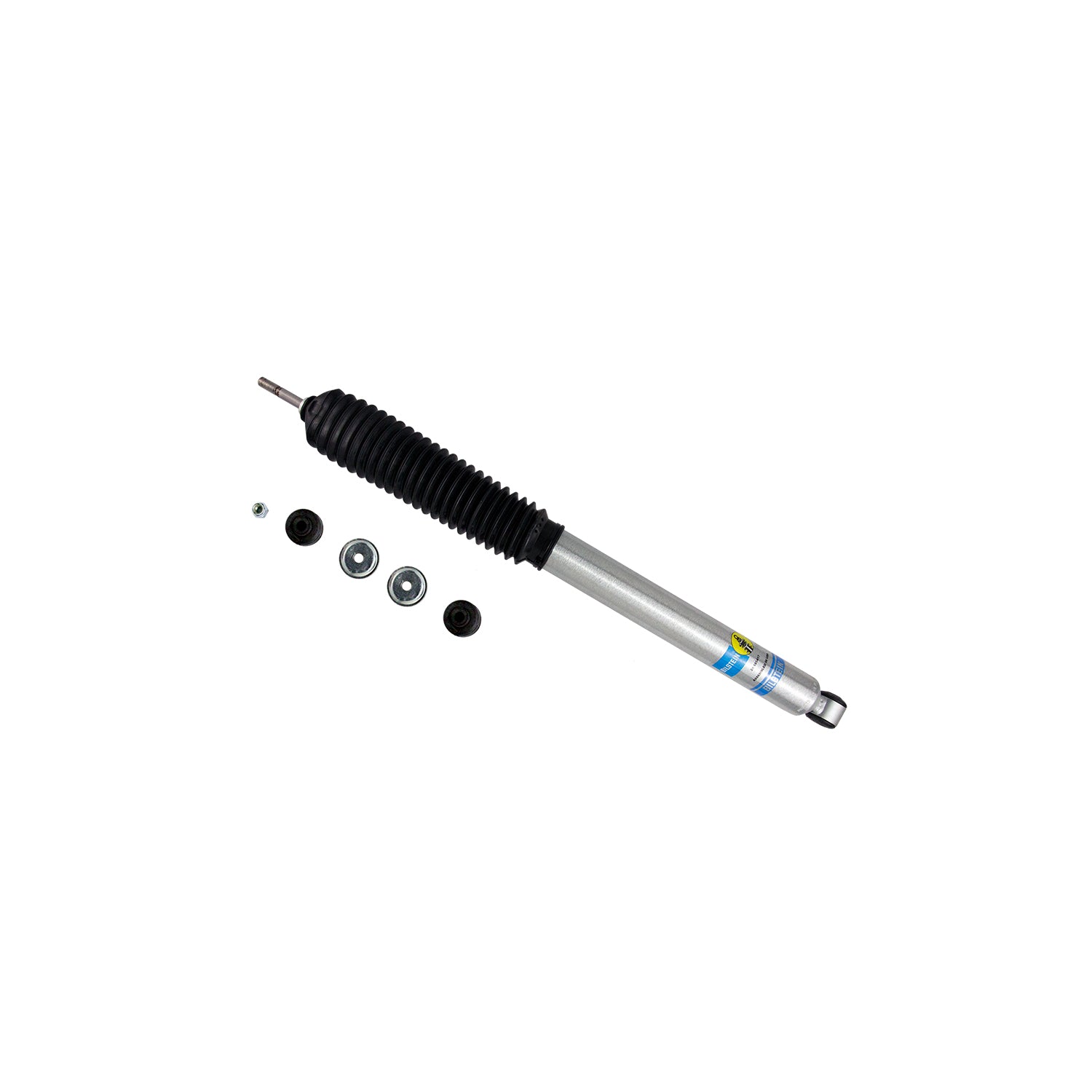

    Bilstein's B8 5100 24-185417 shock for your Ford F-150, F-150 Heritage is one of the top choices for on and off-road enthusiasts looking for a performance shock to improve their vehicle's performance, especially on lifted trucks and SUVs, those who tow or love to take it off-road. Bilstein 5100 Shocks are also available for stock height trucks.

    Features of the Bilstein 24-185417

    Monotube Design:

    Much like its predecessor the Bilstein 4600 series, the 5100 series also features a monotube design, providing consistent damping and better heat dissipation.

    Zinc Plated Finish:

    The Bilstein 5100 series shocks have a unique and stylish zinc-plated finish for superior corrosion resistance. Making them durable in conditions favored by Bilstein Lifted, Off-Road and Drivers who tow.

    High-Flow Piston:

    The 5100's larger diameter and high-flow piston design provides better control and responsiveness for your truck or SUV.

    Velocity-Sensitive Valving:

    This feature automatically adjusts to the road conditions, providing optimal damping whether you're driving on the highway or off-road.

    Tuned Specifically for Your Lifted Vehicle:

    The Bilstein 5100 shock is specifically tuned for Trucks and SUV's with lift kits, ensuring that the shocks complement the altered suspension geometry.

    Benefits of the Bilstein 24-185417

    Enhanced Off-Road Capability:

    The 5100 series is designed for the ability to go off-road, offering better control and stability over rough roads and terrain, but still gives you a consistent smooth on road feel.

    Improved Ride Comfort for Lifted, Off-Road or Towing:

    These shocks provide a smooth and controlled ride, taking on bumps and vibrations effectively and gives you greater control on uneven roadways.

    Durability and Longevity:

    The zinc-plated finish and Bilstein's high-quality materials ensure that the shocks are resistant to corrosion and wear, offering long-lasting performance.

    The Best Handling and Stability:

    The high-flow piston and velocity-sensitive valving improve the vehicle's handling and stability enabling the driver to have greater control and stability.

    Specifications

    • Adjustable Damping: Non-Adjustable
    • Body Design: Smooth Body (Non-Coilover)
    • Body Diameter (ID): 46mm
    • Boot Included: Black Bellows
    • Collapsed Length (IN): 16.38
    • Collapsed Length (MM): 416.0
    • Extended Length (IN): 27.32
    • Extended Length (MM): 694.0
    • Finish: Zinc Plated
    • Internal Design: Monotube
    • Lower Mount Type: Eye 12mm
    • Reservoir: No
    • Spring Seat Included: No
    • Upper Mount Type: Stem
