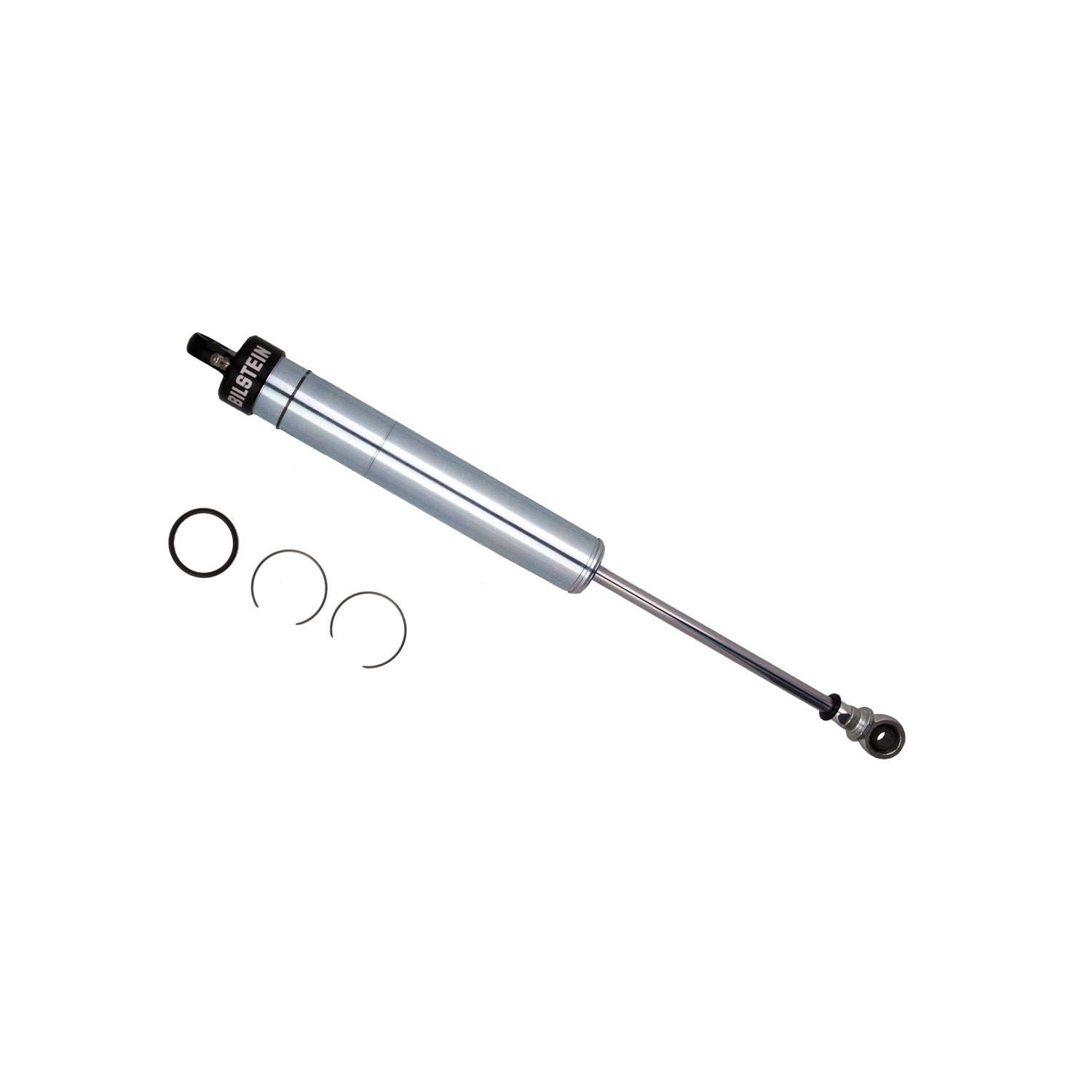

Bilstein 33-247731 SN2 Series Modular Shock Absorber 9" Travel Digressive Valving


Vendor: Bilstein

Part: 33-247731

Availability: Nationwide Backorder

Price: $199.00

This item is not available in the USA. You can pre-order and you will be notified when it is available. We will not charge your Credit Card until the items ordered are shipped. We will take an authorization when the order is processed, which may show as a Pending charge for 7 days. You will not lose your place in line. Thank You from Shockwarehouse.

Free Shipping for all order over $95
Payment methods
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Meta Pay
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Venmo
  • Visa

100% secure and protected payments

Dimensions:
Travel Length: 8.8 inches
Collapsed Length: 15.12 inches
Extended Length: 23.9 inches
Collapsed Length: 384mm
Extended Length: 607mm
Compression: Digressive
Rebound: Digressive

Bilstein SN2 series of shocks were built for Late Models, Modifieds, and Sprint Car's specifically, however they have an unlimited amount of applications and uses due to the fact that they are completely modular in design.

Features:
-Billet Aluminum End Cap
-Your Choice Of Either Linear Or Digressive Piston Designs
-Easy Disassembly And Reassembly For Fast Repairs Or Revalving
-1/2 Inch Heim Mounts
-Parts are Economically Priced And Available For Individual Purchase
-Valve Stacks and Valve Stacking Kits Available Separately for Endless Amounts of Setup Combinations
-Non Adjustable Hard Chrome Shafts Are Standard
-Single And Double Adjustable Shaft Assemblies Are Available As An Upgrade
-Zinc Plated Shock Bodies Dissipate Heat And Are Very Durable

Collapsed Length (IN) - 15.12
Extended Length (IN) - 23.9
Stroke (IN) - 8.78
Lower Mount Type - 1/2in Heim
Upper Mount Type - 1/2in Heim
Boot Included - No
Finish - Zinc Plated
Internal Design - Monotube

Dimensions:
Travel Length: 8.8 inches
Collapsed Length: 15.12 inches
Extended Length: 23.9 inches
Collapsed Length: 384mm
Extended Length: 607mm
Compression: Digressive
Rebound: Digressive

Bilstein SN2 series of shocks were built for Late Models, Modifieds, and Sprint Car's specifically, however they have an unlimited amount of applications and uses due to the fact that they are completely modular in design.

Features:
-Billet Aluminum End Cap
-Your Choice Of Either Linear Or Digressive Piston Designs
-Easy Disassembly And Reassembly For Fast Repairs Or Revalving
-1/2 Inch Heim Mounts
-Parts are Economically Priced And Available For Individual Purchase
-Valve Stacks and Valve Stacking Kits Available Separately for Endless Amounts of Setup Combinations
-Non Adjustable Hard Chrome Shafts Are Standard
-Single And Double Adjustable Shaft Assemblies Are Available As An Upgrade
-Zinc Plated Shock Bodies Dissipate Heat And Are Very Durable

Collapsed Length (IN) - 15.12
Extended Length (IN) - 23.9
Stroke (IN) - 8.78
Lower Mount Type - 1/2in Heim
Upper Mount Type - 1/2in Heim
Boot Included - No
Finish - Zinc Plated
Internal Design - Monotube
