Features & Benefits
Dimensions:
Travel Length: 7.8 inches
Collapsed Length: 14.03 inches
Extended Length: 21.8 inches
Collapsed Length: 356.3mm
Extended Length:553.8mm
Compression: Linear
Rebound: Linear

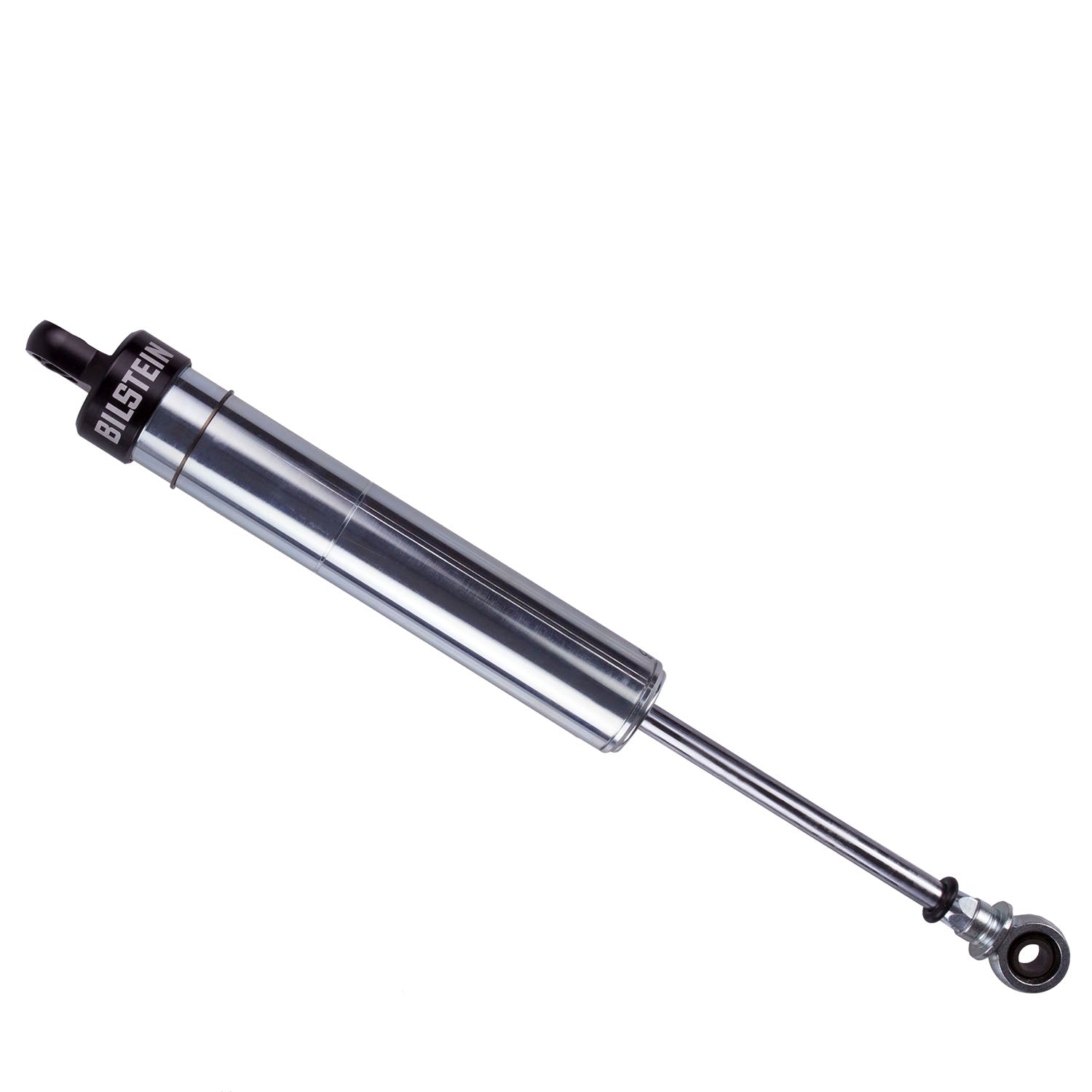

Bilstein SN2 series of shocks were built for Late Models, Modifieds, and Sprint Car's specifically, however they have an unlimited amount of applications and uses due to the fact that they are completely modular in design.
Features:
-Billet Aluminum End Cap
-Your Choice Of Either Linear Or Digressive Piston Designs
-Easy Disassembly And Reassembly For Fast Repairs Or Revalving
-1/2 Inch Heim Mounts
-Parts are Economically Priced And Available For Individual Purchase
-Valve Stacks and Valve Stacking Kits Available Separately for Endless Amounts of Setup Combinations
-Non Adjustable Hard Chrome Shafts Are Standard
-Single And Double Adjustable Shaft Assemblies Are Available As An Upgrade
-Zinc Plated Shock Bodies Dissipate Heat And Are Very DurableCollapsed Length (IN) - 14.03
Extended Length (IN) - 21.8
Stroke (IN) - 7.77
Lower Mount Type - 1/2in Heim
Upper Mount Type - 1/2in Heim
Boot Included - No
Finish - Zinc Plated
Internal Design - Monotube -
