Features & Benefits
Dimensions:
Travel Length: 4.8 inches
Collapsed Length: 11 inches
Extended Length: 15.9 inches
Collapsed Length: 279.4mm
Extended Length: 403.9mm
Compression: Linear
Rebound: Linear

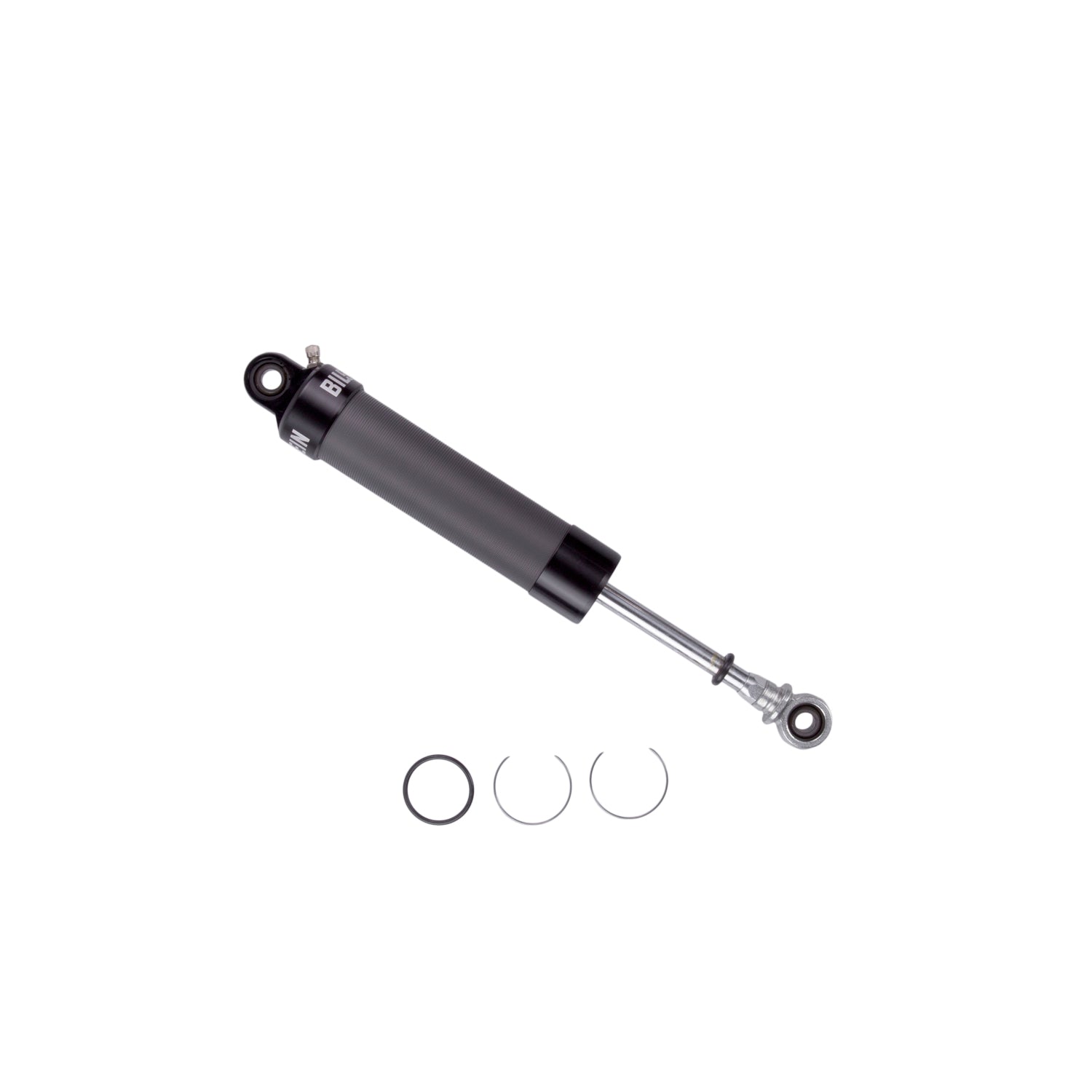

Bilstein AS2 Series of shock absorbers feature an all new modular design that allow this shock to be utilized in many different motorsport applications.
Features:
-46mm Threaded And Hard Anodized Monotube Shock Body
-Billet Aluminum End Cap
-Your Choice Of Either Linear Or Digressive Piston Designs
-Easy Disassembly And Reassembly For Fast Repairs Or Revalving
-1/2 Inch Heim Mounts
-Parts are Economically Priced And Available For Individual Purchase
-Valve Stacks and Valve Stacking Kits Available Separately for Endless Amounts of Setup Combinations
-Non Adjustable Hard Chrome Shafts Are Standard
-Single And Double Adjustable Shaft Assemblies Are Available As An UpgradeCollapsed Length (IN) - 11
Extended Length (IN) - 15.9
Stroke (IN) - 4.9
Lower Mount Type - 1/2in Heim
Upper Mount Type - 1/2in Heim
Boot Included - No
Finish - Clear Anodized
Internal Design - Monotube -
