Features & Benefits

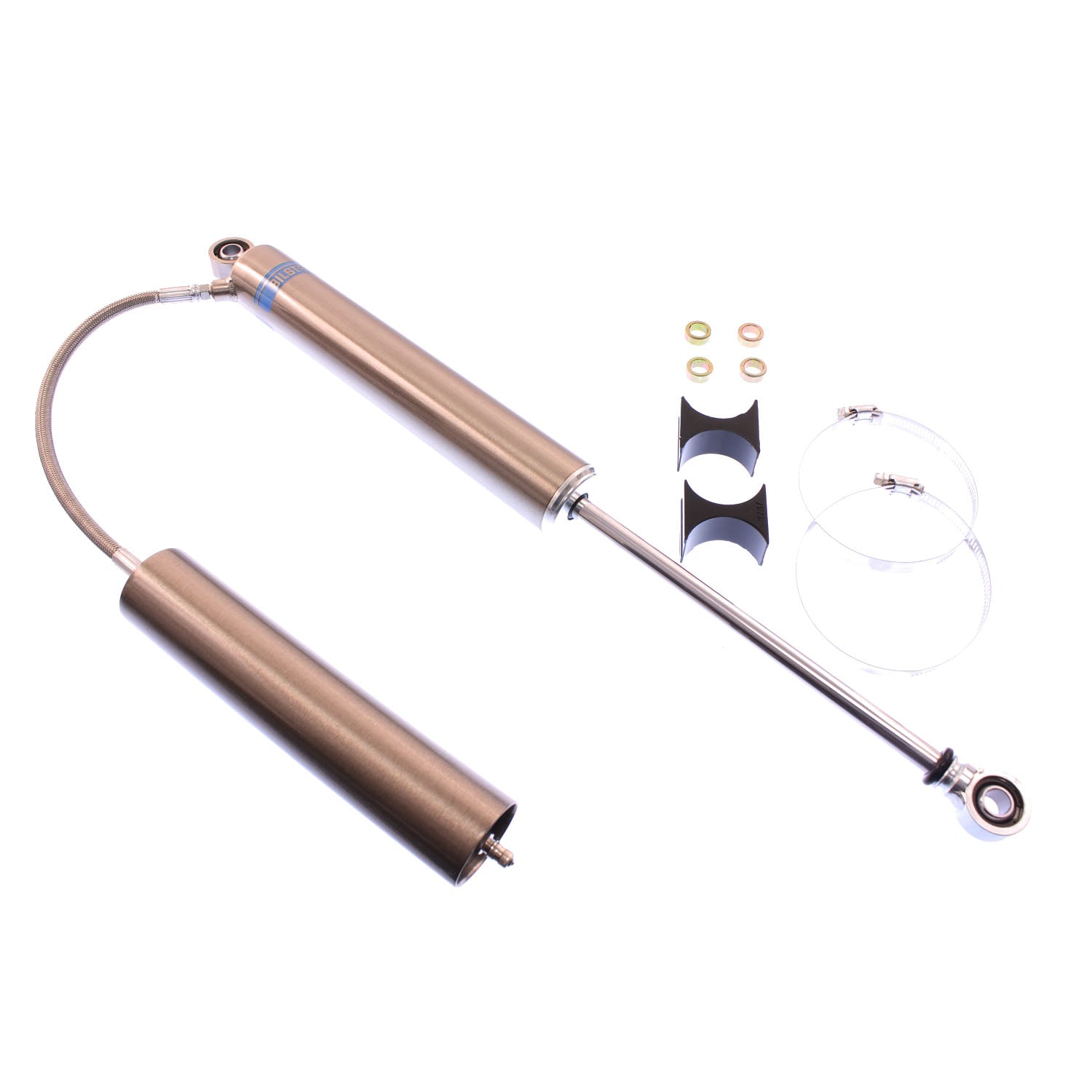

Bilstein 7100 Series.2-inch seamless extruded tube body.
14mm centerless ground, case hardened, chromes piston rod.
Aluminum 1 piece rod guide seal.
46mm Bilstein racing piston.
Bilstein fade resistant high tempature racing oil.
"Short Body" seamless tube resevoir (on models with external resevoir).
Aeroquip 6 high pressure hose (on models with external resevoir).
Electroless nickel finish.
1/2 heim ends.
Rebuildable.
Racing Shock: No warranty.
Collapsed Length (IN) - 19.53
Extended Length (IN) - 33.84
Stroke (IN) - 14.31
Lower Mount Type - 1/2in Heim
Upper Mount Type - 1/2in Heim
Boot Included - No
Compression @0.52m/s - 600
Rebound @0.52m/s - 1700
Finish - Electroless Nickel with Clear Powder coat
Internal Design - Monotube
Body Design - 46mm ID Smooth Body (Non-Coilover) -
