Features & Benefits
Bilstein's B8 5100s shock for your Ford Bronco, F-150, F-250, F-250 HD, F-250 Super Duty, F-350, F-350 Super Duty, Ranger is one of the top choices for on and off-road enthusiasts looking for a performance shock to improve their vehicle's performance, especially on lifted trucks and SUVs, those who tow or love to take it off-road. Bilstein 5100 Shocks are also available for stock height trucks.

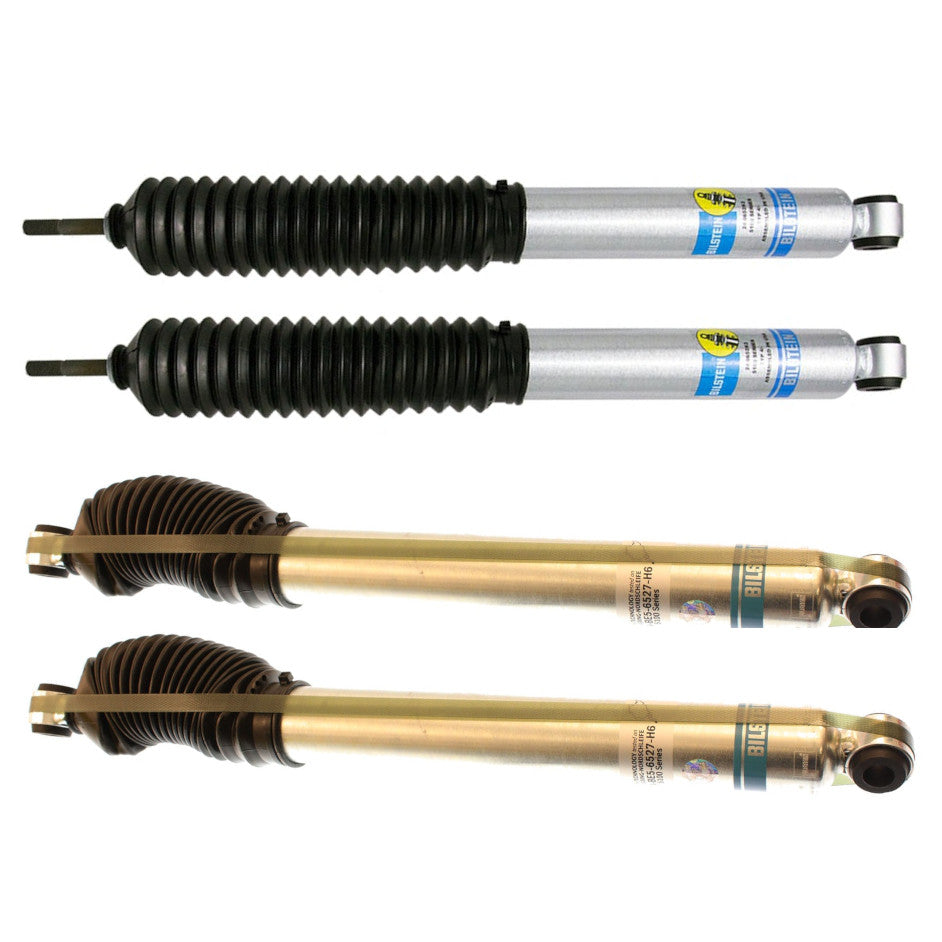

This package is for vehicles with an existing 6" Lift.This package comes with :

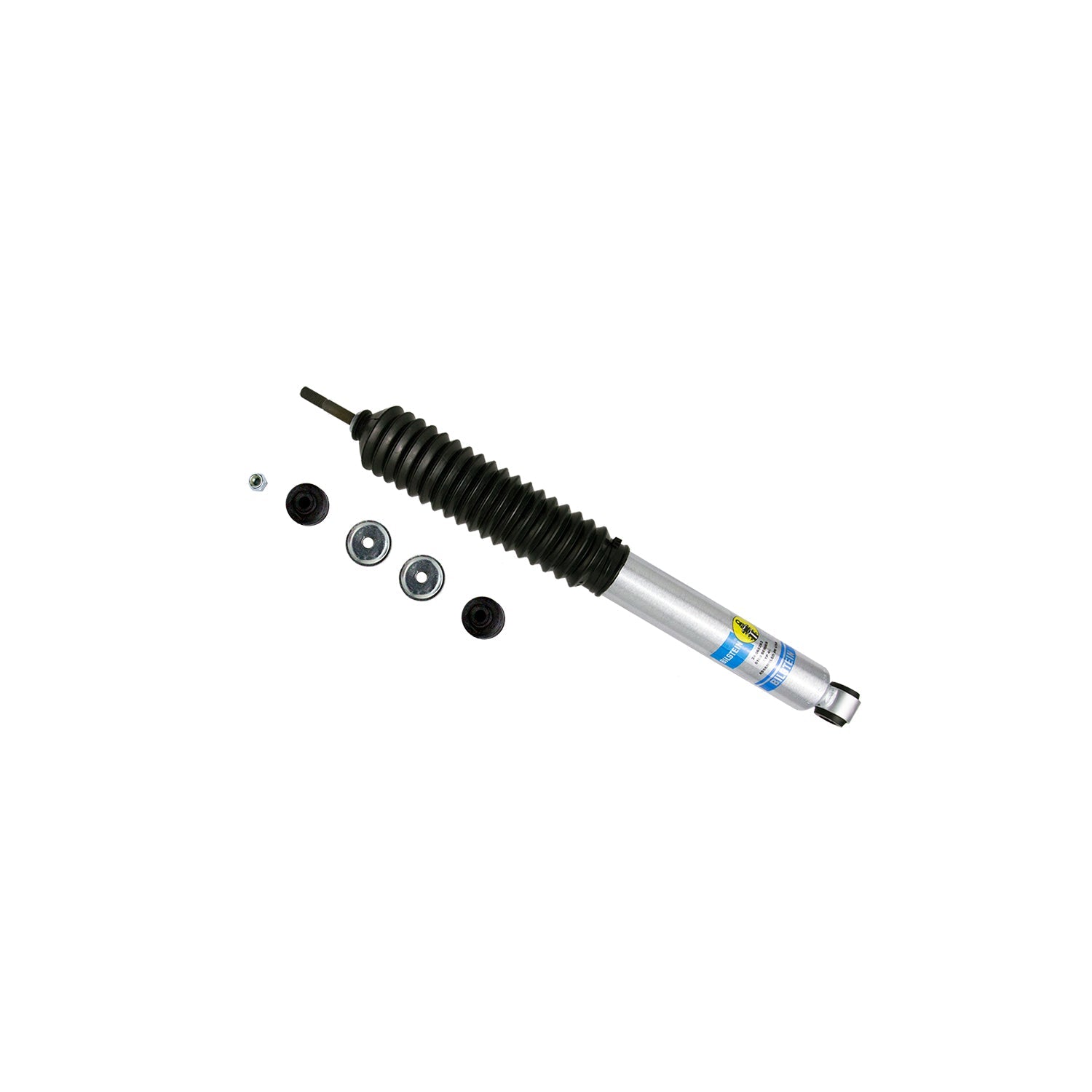

2 - 24-065283 Bilstein Front Shocks

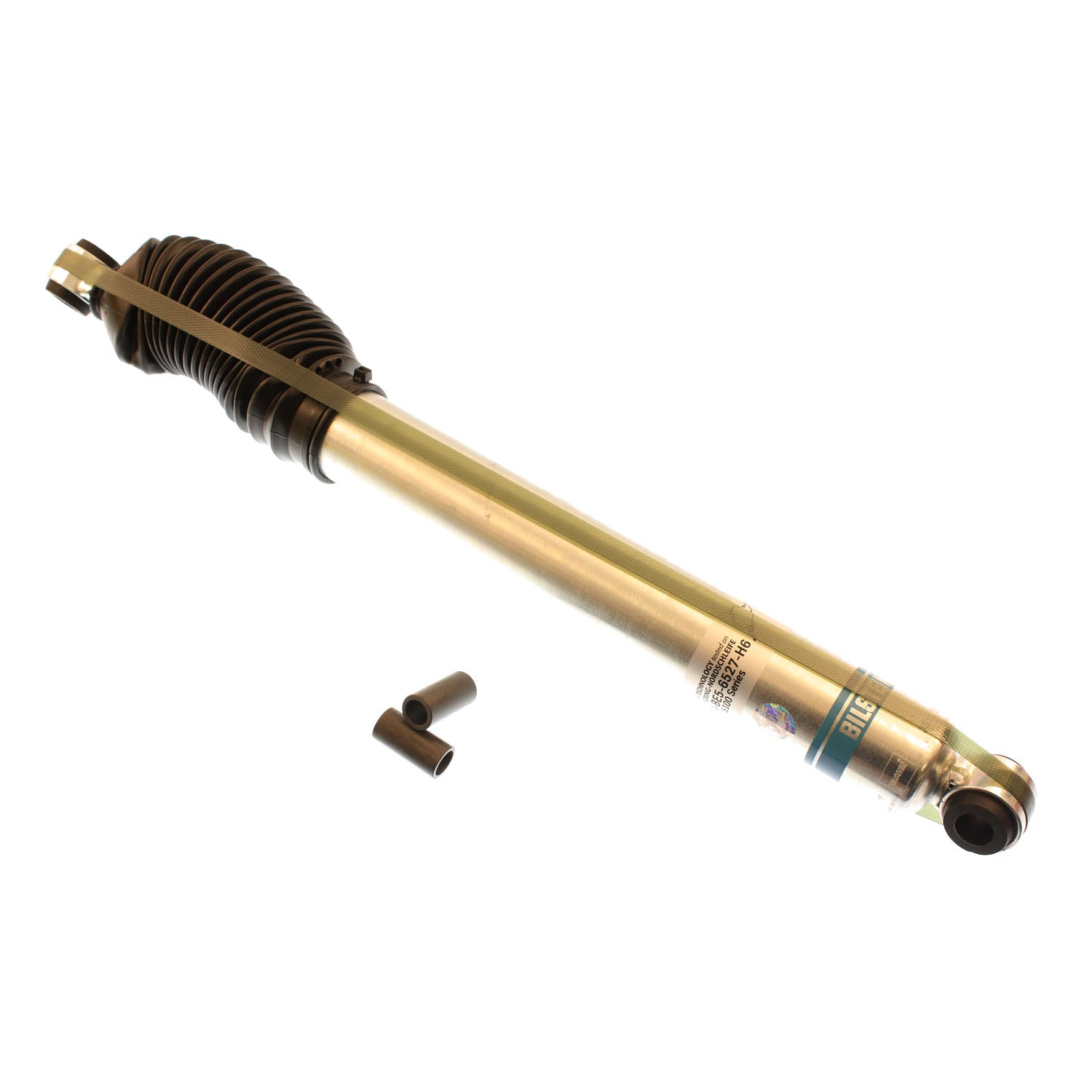

2 - 24-065276 Bilstein Rear ShocksFront Shock Specifications
- Adjustable Damping: Non-Adjustable
- Body Design: Smooth Body (Non-Coilover)
- Body Diameter (ID): 46mm
- Boot Included: Black Bellows
- Collapsed Length (IN): 13.27
- Collapsed Length (MM): 337.0
- Extended Length (IN): 21.52
- Extended Length (MM): 546.5
- Finish: Zinc Plated
- Internal Design: Monotube
- Lower Mount Type: Eye 5/8in
- Reservoir: No
- Spring Seat Included: No
- Upper Mount Type: Stem
Rear Shock Specifications
- Adjustable Damping: Non-Adjustable
- Body Design: Smooth Body (Non-Coilover)
- Body Diameter (ID): 46mm
- Boot Included: Black Bellows
- Collapsed Length (IN): 17.01
- Collapsed Length (MM): 432.0
- Extended Length (IN): 28.01
- Extended Length (MM): 711.5
- Finish: Zinc Plated
- Internal Design: Monotube
- Lower Mount Type: Eye 16mm
- Reservoir: No
- Spring Seat Included: No
- Upper Mount Type: Eye 16mm
-
