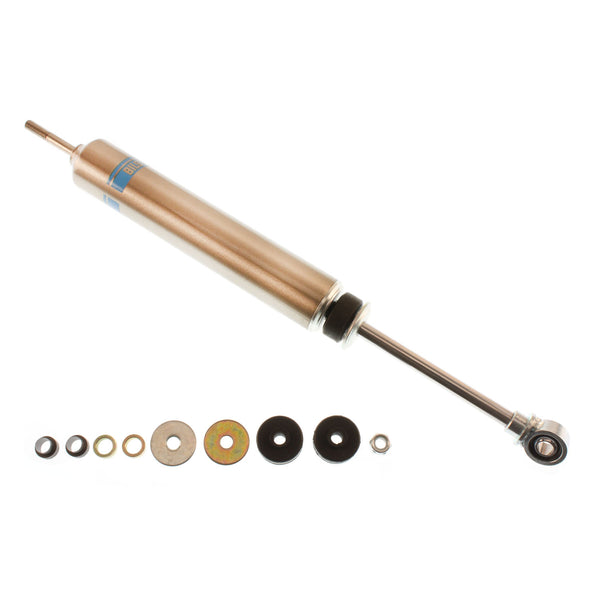

Bilstein F4-BOA-0000304 Front M 7100 Classic Shock Absorber
Self adjusting deflective disk valving.
Rebuildable.
14mm Piston Rod
1/2 Heim ends (German Graphite).
High flow piston reduces harshness.
Available in standard (yellow body) or Coil-over configuration.
Sand sports, buggys, to Baja Bugs.
Collapsed Length (IN) - 12.15
Extended Length (IN) - 18.74
Stroke (IN) - 6.59
Lower Mount Type - 12mm Heim
Upper Mount Type - Stem
Boot Included - No
Compression @0.52m/s - 1150
Rebound @0.52m/s - 2200
Finish - Electroless Nickel with Clear Powder coat
Internal Design - Monotube
Body Design - 46mm ID Smooth Body (Non-Coilover)
