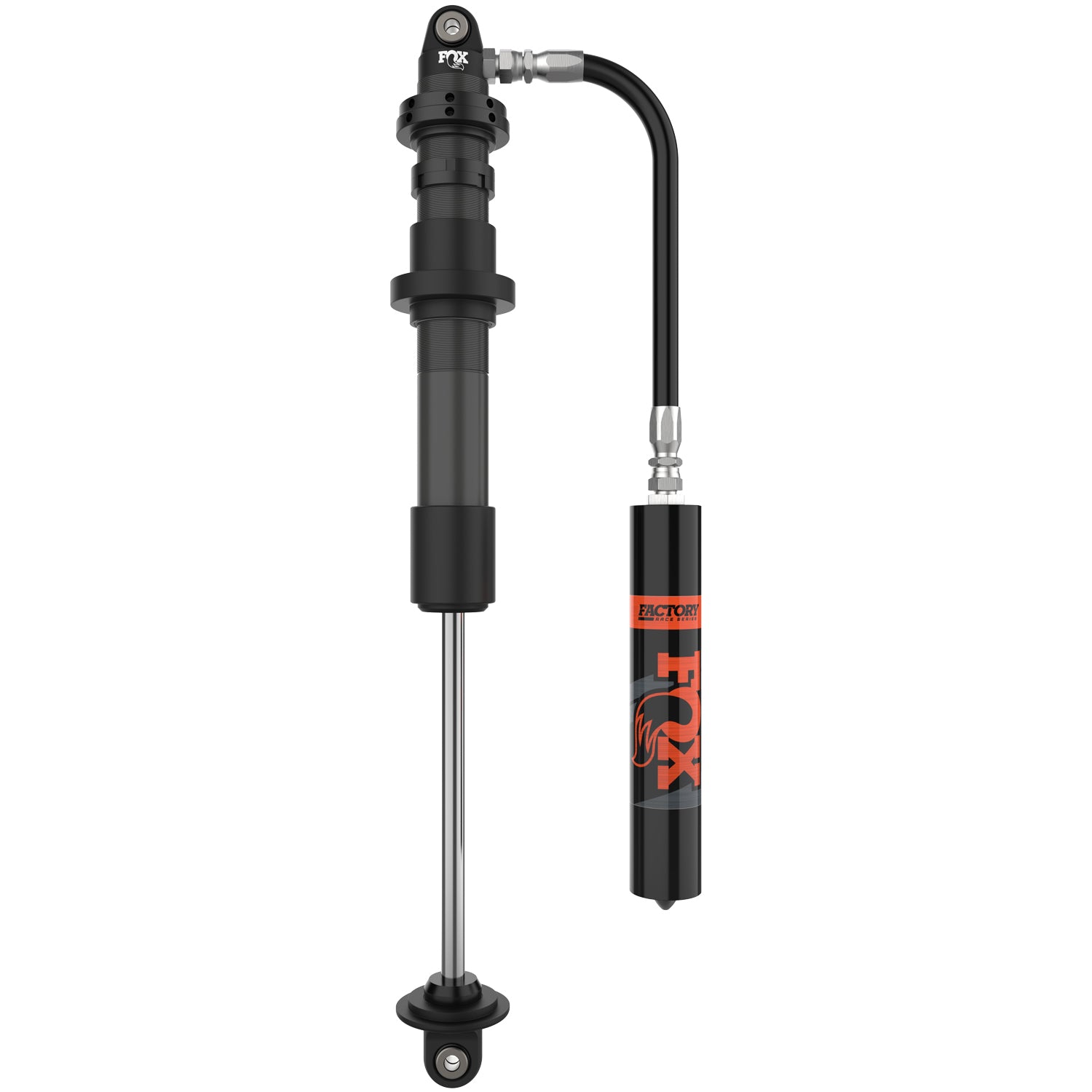

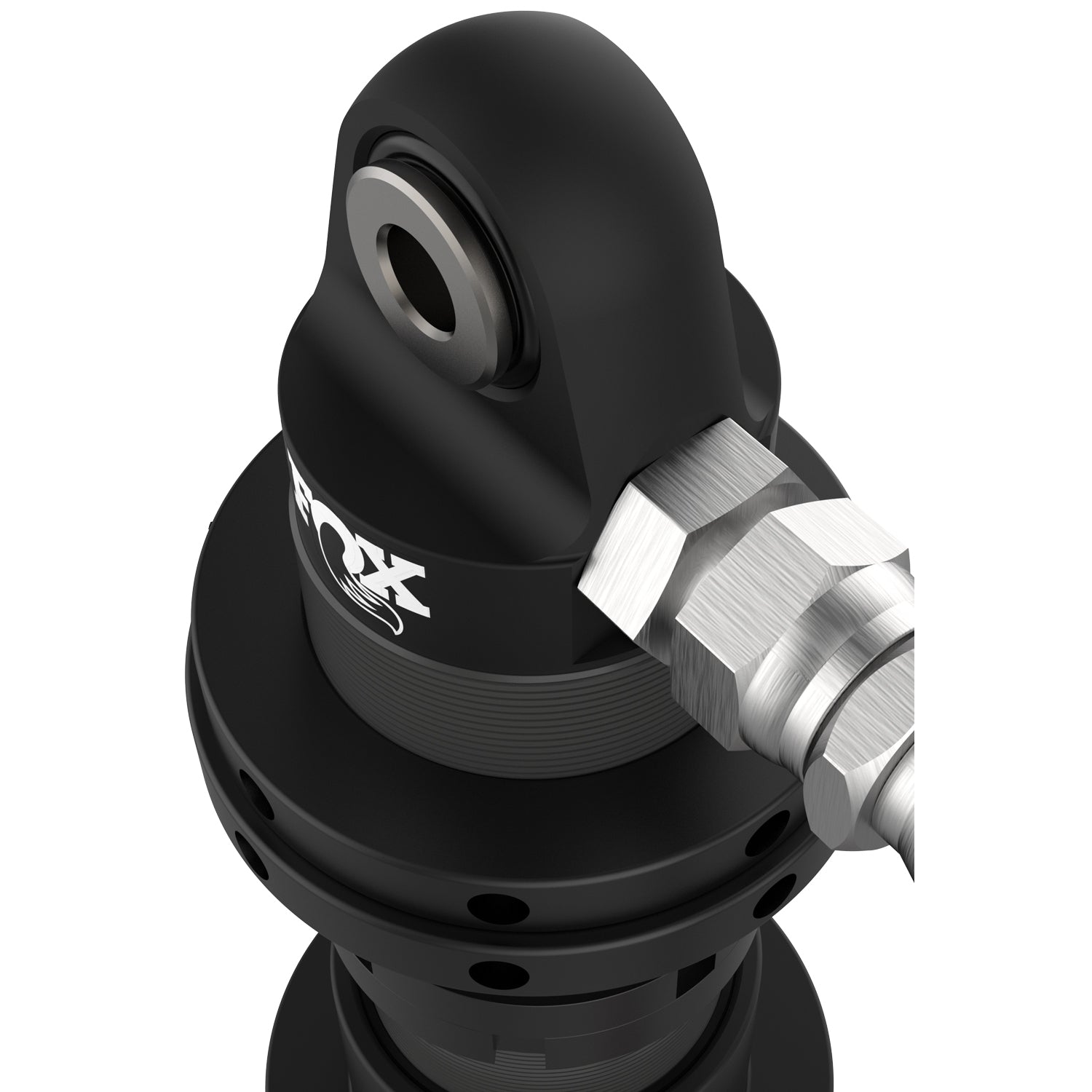

FOX 981-30-103 Factory Race 3.0 X 16 Coil-Over Remote Shock

FOX 3.0 Coil-overs 981-30-103

Take your off-road performance to the next level with the FOX 3.0 Coil-overs 981-30-103 for your (MMY). Engineered for ultimate control and comfort, these coil-overs feature patented Internal Bypass technology, Dual Speed Compression (DSC) adjustment, and race-proven performance in a convenient bolt-on kit. Designed for demanding conditions, they provide a plush, predictable ride with enhanced damping for rough terrain and extreme driving.

Features of the 981-30-103:

• 3.0" Impact Extruded and CNC Machined 6061-T6 Hard-Anodized Aluminum Body: Offers superior resistance to corrosion while being lighter than steel, ensuring long-lasting durability and optimal performance.
• Hard-Anodized Durable Finish: Provides a tough, corrosion-resistant surface that stands up to harsh conditions.
• New Aluminum Finned Remote Reservoir with Recirculating Reservoir Bridge: Enhances heat dissipation to maintain optimal shock oil temperature for consistent damping performance.
• Black-Anodized CNC-Machined 6061-T6 Billet Aluminum Components: High-quality materials ensure strength, precision, and reliability.
• 7/8" Hard Chrome Plated Heat-Treated Alloy Steel Shaft: Provides exceptional strength and resistance to wear and corrosion.
• Race-Developed High-Flow Piston Design: Ensures smooth and efficient damping performance.
• Patented Internal Bypass Design: Allows for multiple zones of damping control, providing increased damping force through rough terrain and preventing harsh top-outs and bottom-outs.
• Redundant Sealing Pack System: Includes a main seal, wiper seal, and scraper seal to prevent leaks and ensure consistent performance in harsh conditions.
• PTFE-Lined Heat-Treated Alloy Steel Spherical Bearings: Ensure quiet and smooth shock movement.
• Dual Speed Compression (DSC) Adjusters: Allow for tool-free high and low-speed compression adjustment, providing customizable damping.
• Recirculating Reservoir Bridge: Enables continuous exchange of shock fluid between the finned external reservoir and body, keeping shock temperatures cool for better performance.

Benefits of the 981-30-103:

• Race-Proven Performance: Developed through rigorous testing and trusted by professional athletes, these coil-overs deliver superior performance and control.
• Enhanced Ride Quality: The advanced design and technology provide a smoother and more controlled ride, whether on-road or off-road.
• Superior Control: Experience precise handling and stability, giving you confidence in any driving condition.
• Adjustable Settings: Easily adjust compression settings with the DSC adjusters to match your driving style and terrain.
• Durability and Reliability: Built with high-quality materials and advanced technology, these coil-overs are designed to withstand the most challenging environments.
• Striking Race Look: Not only do these coil-overs perform exceptionally well, but they also add a bold, race-inspired look to your vehicle.

Specifications of the 981-30-103:

• Body Diameter (in): 3
• Body Finish: FOX Grey Cerakote
• Body Material: Steel
• Bottom Mount: Eyelet
• Compressed Length (in): 26.50
• Extended Length (in): 42.50
• Eyelet Length (in): 2.50
• Hose: -12 x 18.00
• Mounting: 5/8 x 1-1/2
• Reservoir Dimensions: 3.00 x 16.00
• Reservoir Type: Remote
• Series: Factory Race
• Shaft Size (in): 1
• Top Mount: Eyelet
• Travel (in): 16.00
• Type: Coil-Over
• Valving: 807-24-601

Upgrade your (MMY) with the FOX 3.0 Coil-overs 981-30-103 and experience the ultimate in suspension performance and control. Perfect for both stock and lifted trucks and SUVs, these coil-overs provide the reliability and precision you need for any adventure.

For more information or to find the perfect fit for your vehicle, contact us at Shockwarehouse. We're here to help you get the most out of your suspension system.
