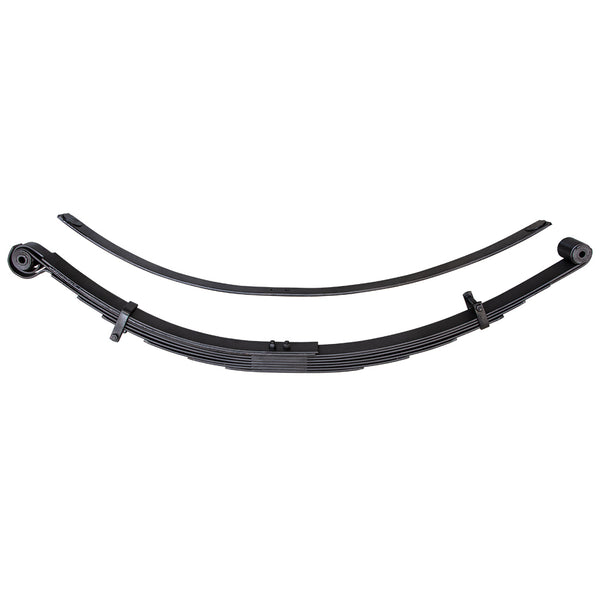

ICON 198510 Ford Raptor Multi Rate Leaf Pack Spring w/Add In Leaf

The Ford Raptor is an extremely capable truck that has captured the attention of the off-road community over the past few years. Since the Raptor's release ICON Vehicle Dynamics' engineers have pushed this vehicle to extremes to develop the most sophisticated suspension components on the market. From the brutal deserts of the Southwest, to the deep snow of Michigan's U.P., to the wooded trails of the East coast ICON suspension systems have been put to the test and performed flawlessly. Unable to leave "well-enough" alone, ICON is aiming to once again raise the bar in Raptor performance with the release of a multi-rate leaf spring that represents the latest component in the ICON complete suspension system for the Gen 2 Raptor.

FEATURES

• 3 user-adjustable spring rates for unique vehicle setups
• Triple military wrap front eyelet and rear half wrap for increased durability
• Rebound leaf reduces severe axle wrap
• Leaf separators and tip inserts reduce noise and friction while increasing ride comfort
• Direct bolt-in to OEM spring location makes for an easy install
• "ICON 1K" tested under rigorous off-road conditions to validate tune, performance, strength, and durability

SPECIFICATIONS

• Axle Modification Needed: No
• Axle Orientation: Rear
• Bushing Color: Black
• Bushings Included: Yes
• Color: Black
• Helper Spring: No
• Leaf Quantity: 8
• Leaf Width (IN): 3
• Material: Steel
• Maximum Lift (IN): 3
• Mounting Hardware Included: Yes
• Suspension Grade Type: Performance
• U Bolts Included: No

TECH NOTES

• Compatible with factory shocks
• Not compatible with most aftermarket leaf spring shackles. OE shackles are recommended.
• Does not require modification of factory exhaust system
• Removal of the bed is not required for installation
• ICON multi-rate leaf springs require bump stop spacer kit (PN: 95226) if ICON's hydraulic bump stop kit (PN: 95121) is not used
• These leaf springs are sold individually. A quantity of 2 are required per vehicle.
• Hardware kit part # 95225H required for installation (sold separately)
