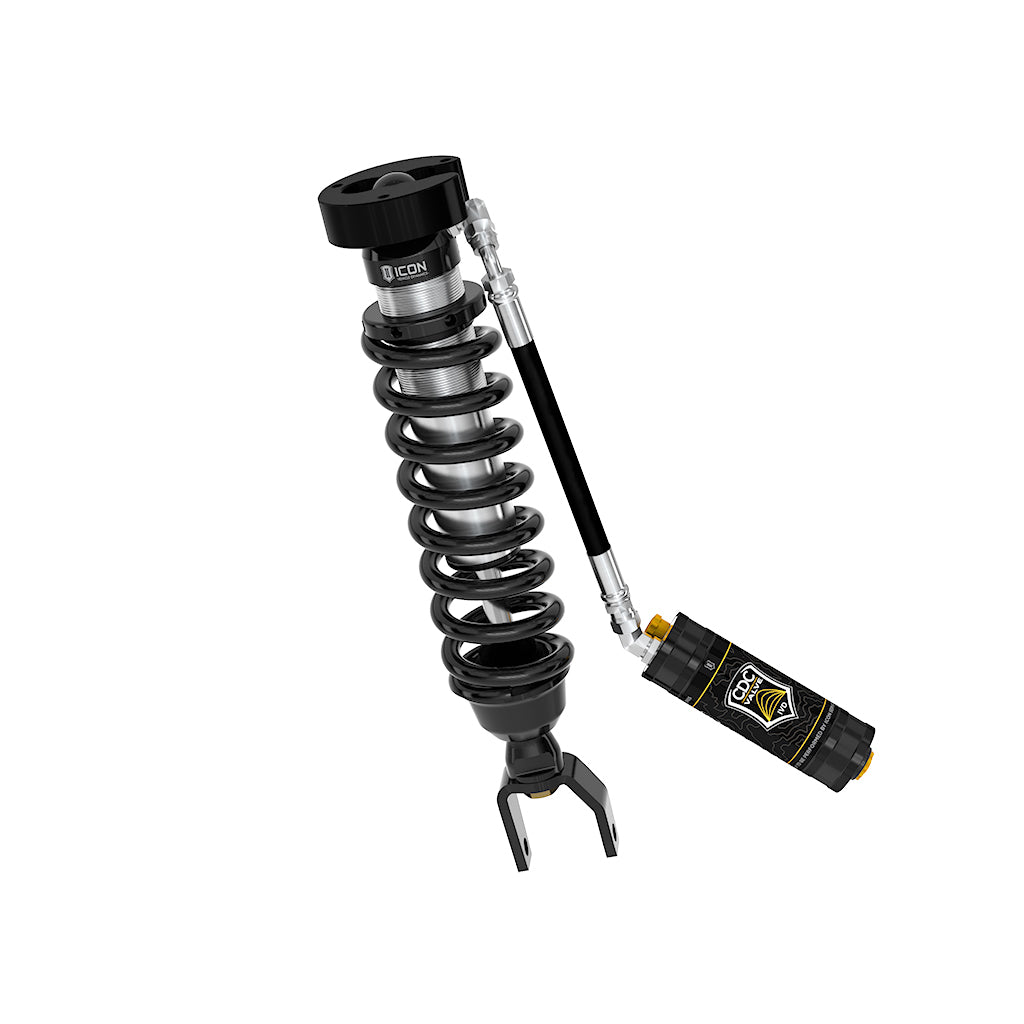

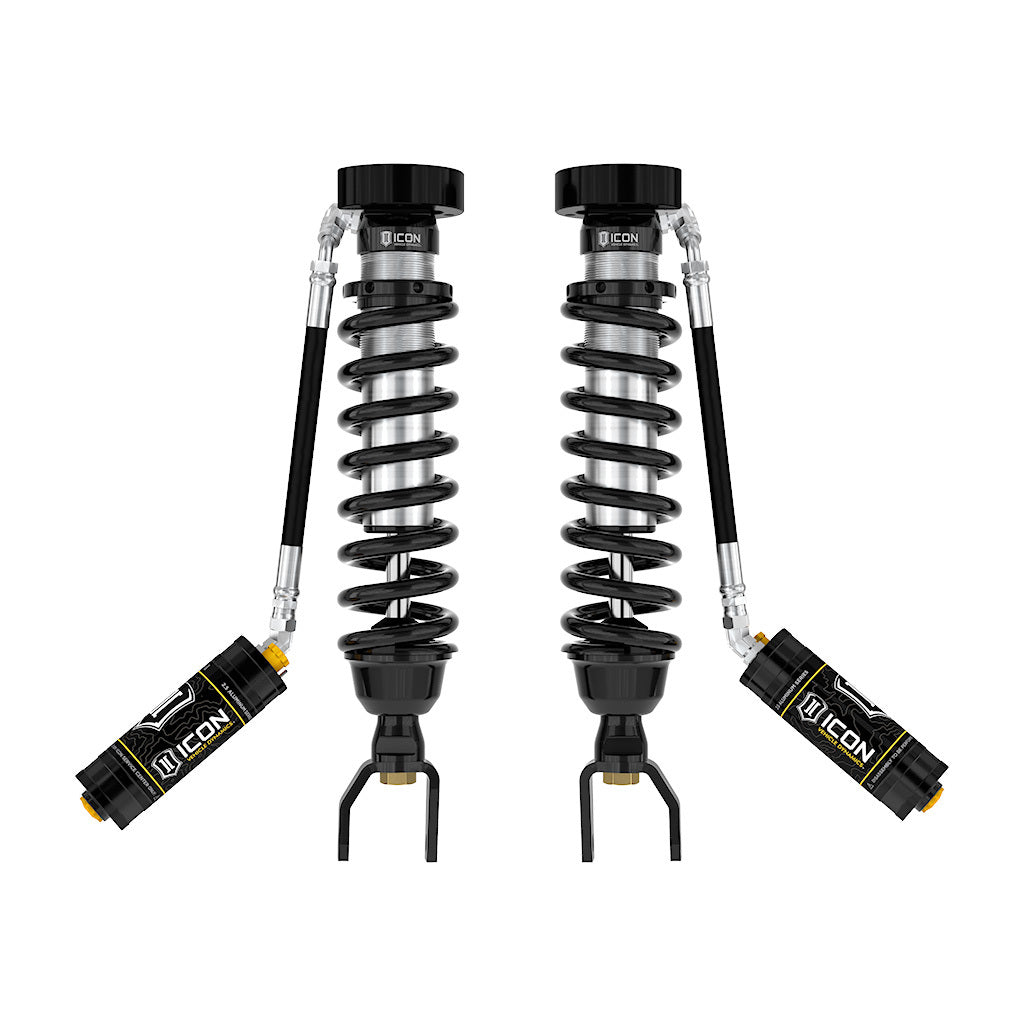

ICON 211015C Ram 1500 2-3" Lift Front 2.5 VS RR/CDCV Coilover Kit

ICON Vehicle Dynamics V.S. 2.5 Series coilover shocks are an incredible upgrade for the front end of 2019-UP Ram 1500 trucks. ICON's Vehicle-specific valving provides a sport tuned feel on and off-road while 2-3" of lift height adjustability allows the use of larger, more aggressive wheel and tire combinations. The larger 2.5" shock body and increased piston area over stock components and application specific length to maximize wheel travel provide improved damping ability and outstanding ride characteristics across varying types of terrain. These remote reservoir coilovers will maintain lower operating temperatures and offer more consistent operation during extended or aggressive off-road use compared to internal reservoir versions. The ICON CDC Valve upgrade is included for those desiring an easy way to tune the ride externally with 10 settings of compression damping adjustment, from soft to hard. When paired with ICON 2.0 Aluminum Series or 2.5 Aluminum Series rear shocks vehicle control will be balanced front to rear, resulting in the best overall driving experience for your Ram 1500 truck.

FEATURES

• Increased wheel travel and ride quality over stock
• ICON engineered coil springs
• 6061 Aircraft grade aluminum CNC machined components
• Corrosion resistant CAD plated shock body with 7/8" diameter shaft
• High strength alloy CNC machined lower mounting clevis
• FK rod end bearings for extended longevity and minimal deflection
• 100% Bolt-on - no drilling, cutting or welding necessary for installation
• Unique valving developed for the lighter weight and chassis dynamics of the 2019-Up Ram 1500
• Vehicle specific tuned for superior shock damping and control
• Adjustable from 2-3" of front lift height over stock
• Remote reservoirs maintain cooler operating temperatures and consistent operation during extended off-road use
• ICON CDCV equipped for external tuneability of your shocks

SPECIFICATIONS

• Adjustable Damping: Yes
• Adjustable Height: Yes
• Body Diameter (IN): 2,5
• Boot Included: No
• Coil Over Springs Included: Yes
• Damping Type: Oil
• Dust Shield: No
• Gas Charged: Yes
• Grade Type: Performance
• Lower Mount Type: Clevis
• Material: Aluminum
• Material: Steel
• Maximum Lift (IN): 3
• OEM Wheels & Tires Fitment: Yes
• Remote Reservoir: Yes
• Service Parts: 254101G - 1/2 GALLON ICON PERFORMANCE SHOCK OIL
• Service Parts: 257301 - 7/8 SHAFT 10.25 OAL, 6.00 TRAVEL
• Service Parts: 254100G - 1 GALLON ICON PERFORMANCE SHOCK OIL
• Service Parts: 252011 - 2.5 PIGGYBACK/REMOTE RESI/BYPASS REBUILD KIT
• Shaft Diameter (IN): 0.875
• Shock Absorber Body End Measuring Point: Top of Upper Mount Plate
• Shock Absorber Rod End Measuring Point: Center of Clevis Holes
• Spring Color: Black
• Spring Material: Steel
• Upper Mount Type: Mounting Plate

TECH NOTES

• OEM Wheels & Tires Fitment: Yes
• Recommended Aftermarket Wheels: ICON Alloys - 18x9" w/ 5.00" Backspace / 0mm Offset
• Recommended Aftermarket Wheels: ICON Alloys - 20x9" w/ 5.00" Backspace / 0mm Offset
• Recommended Aftermarket Tires: 35" x 12.50" (fender trimming and modifications will be required.)

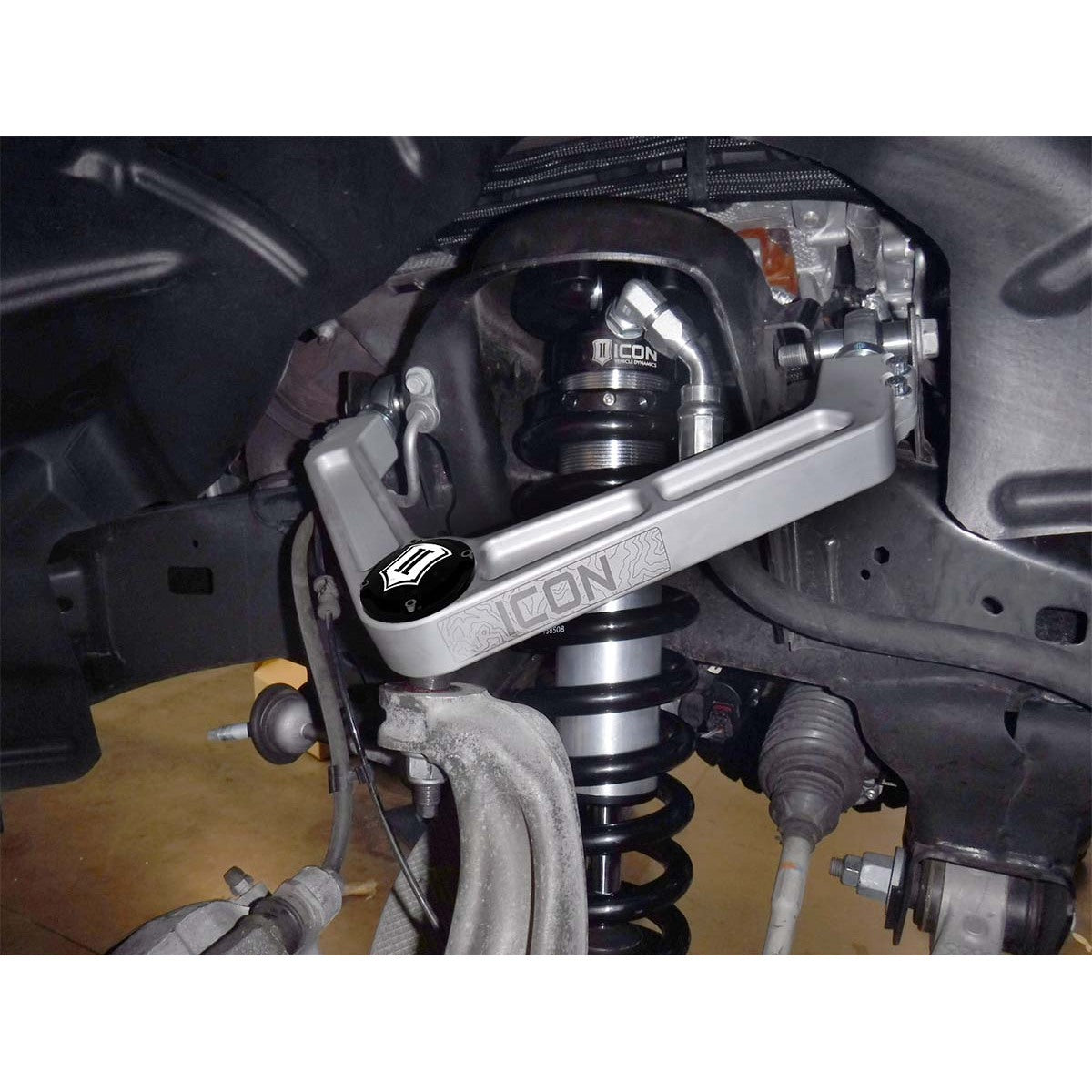

• Requires installaation of aftermaket front upper contrrol arms. ICON Part #s 218550DJ or 218560DJ recommended.
• Not compatible with models equipped with factory air ride system.
• Spring rates optimized for use with gas engines. Not recommended for Eco-Diesel equipped models.
• Not compatible with 2019-Up Ram 1500 Classic trim
• 2019-Up Ram 1500 Rebel trim lift height range 1.25-2.25" over stock
• Not compatible with 2020-Up Ram 1500 TRX trims
