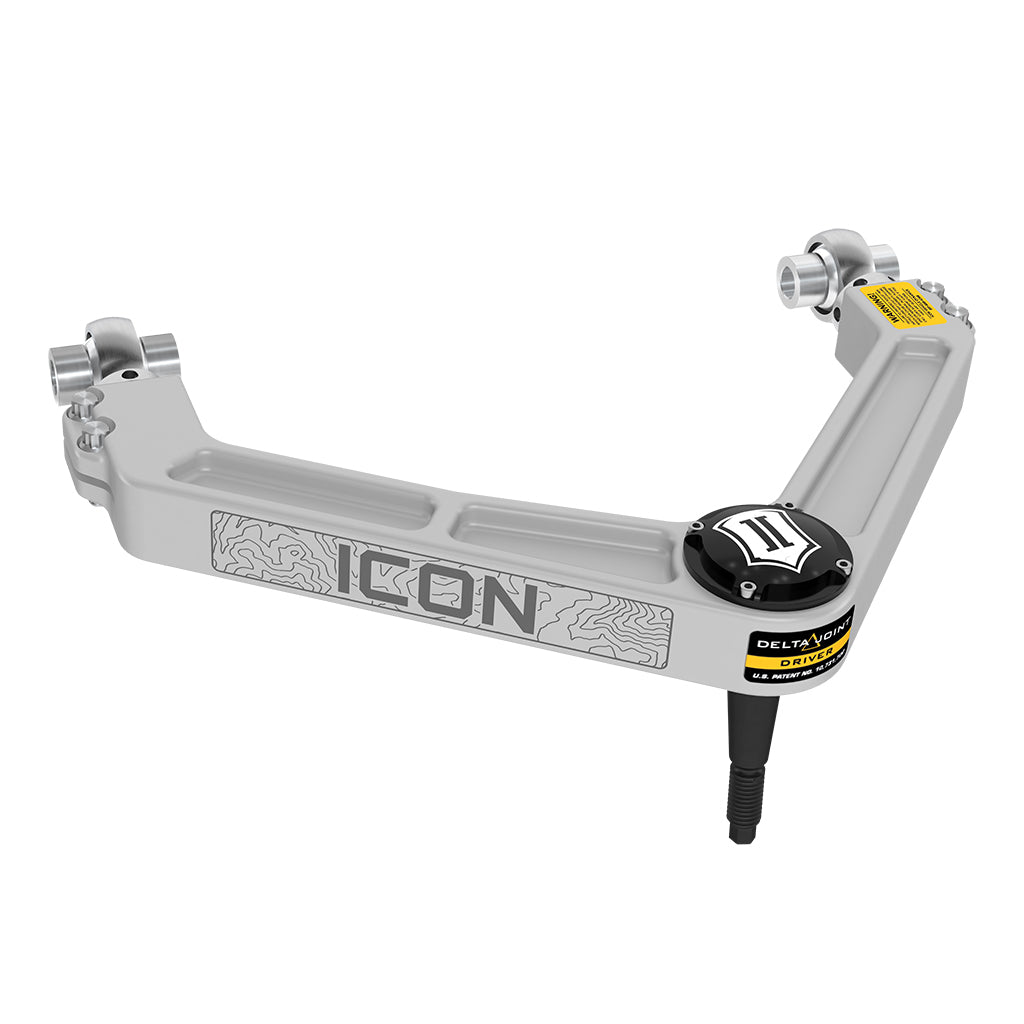

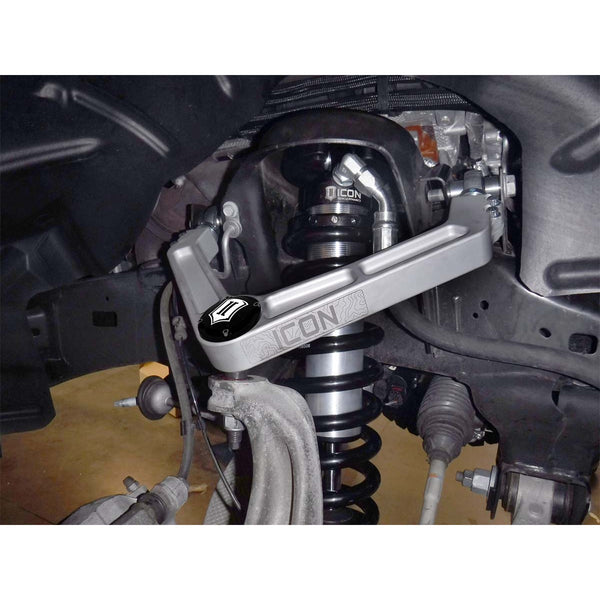

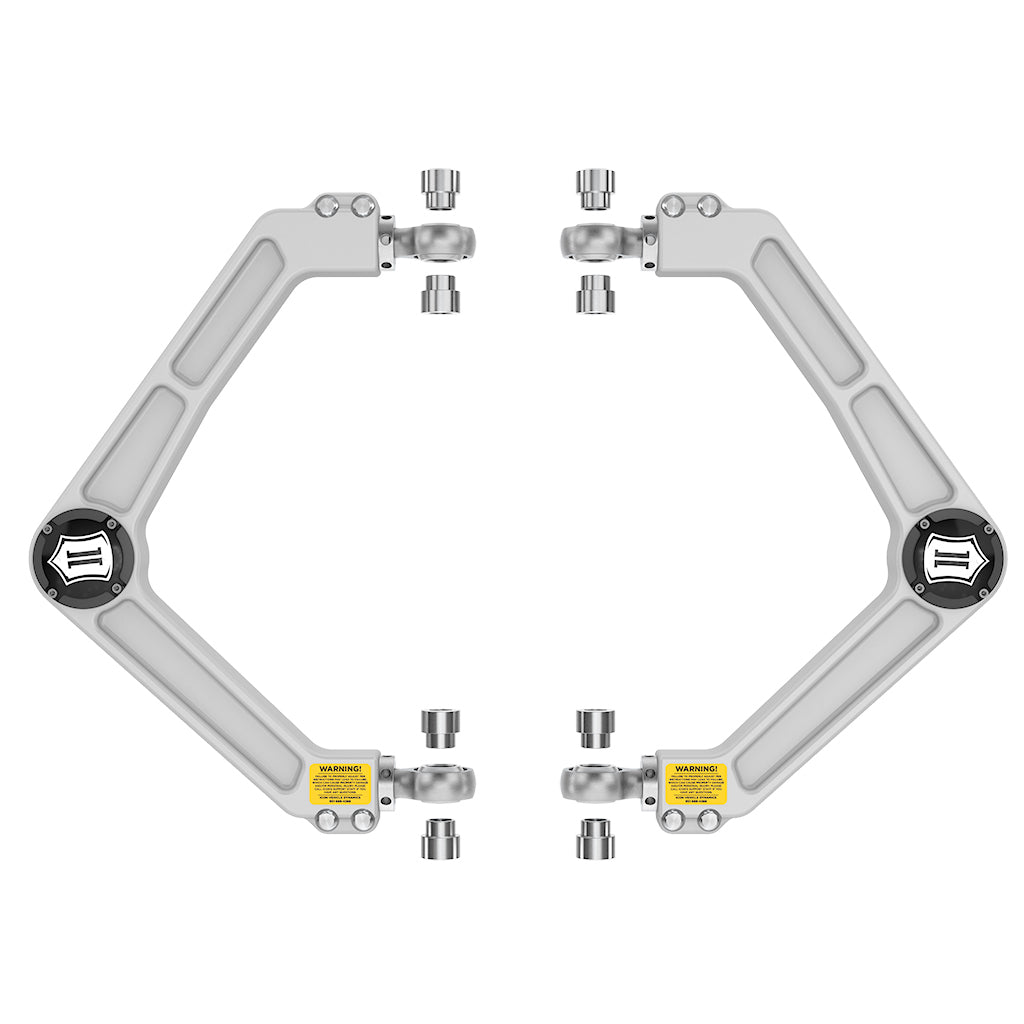

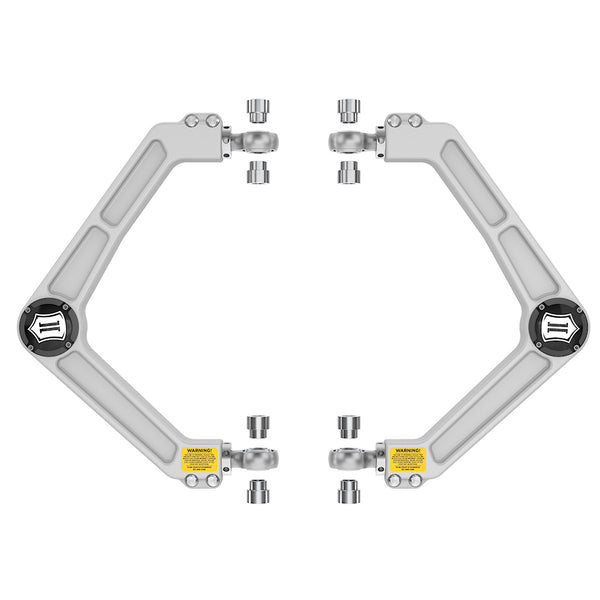

ICON 218560DJ Ram 1500 Billet Upper Control Arm/Delta Joint Kit

This ICON billet aluminum upper control arm kit is designed to improve the overall performance of 2019-Up Ram 1500 trucks with corrected front-end geometry, increased camber and caster adjustment, and improved suspension component clearance. Constructed of CNC machined 6061 billet aluminum utilizing a hybrid H-beam cross-section that is light-weight and resists bending forces better than tubular arms. Replacing the OE ball joint with the patented ICON Delta Joint allows for full bump and droop travel of the front suspension while eliminating bind. FK Rod End 3/4" heim joints provide precise and smooth function throughout the range of travel while ICON's signature double adjuster sleeve allows for on-vehicle camber and caster adjustment. Included with all components and hardware necessary for a complete install, these billet UCAs are the perfect front end upgrade for the 2019-Up Ram 1500.

FEATURES

• CNC machined 6061 billet aluminum construction with satin anodized finish
• Corrects suspension geometry and imptrecves handling on lifted or stock height trucks
• Quick, precise, on-vehicle adjustment for both caster and camber
• Patented ICON Delta Joint allows maximum articulation without binding
• Quality PTFE-lined 3/4" FK Rod Ends at chassis pivots for strength and precision driving characteristics
• Built in O-ring sealed Delta Joint dust cover cap

SPECIFICATIONS

• Adjustable: Yes
• Ball Joint Included: Yes
• Ball Joint Mounting Type: Press In
• Ball Joint Stud Type: Threaded
• Bushing Material: Rod End Bearing
• Bushings Included: Yes
• Control Arm Color: Silver
• Control Arm Construction: Billet
• Control Arm Material: Aluminum
• Finish: Anodized
• Grade Type: Performance
• Grease Fitting Included: yes
• Mounting Hardware Included: Yes
• OEM Wheels & Tires Fitment: Yes
• Pre-Greased: Yes
• Service Parts: 614554 - 04-20 F150/09-UP RAM 1500 DELTA JOINT KIT
• Suspension Grade Type: Performance

TECH NOTES

• OEM Wheels & Tires Fitment: Yes
• Recommended Aftermarket Wheels: ICON Alloys - 18x9" w/ 5.00" Backspace / 0mm Offset
• Recommended Aftermarket Wheels: ICON Alloys - 20x9" w/ 5.00" Backspace / 0mm Offset
• Recommended Aftermarket Tires: 35" x 12.50" (Fender trimming and modifications will be required.)
• Not compatible with 2019-Up Ram 1500 Classic models
• Not compatible with 2020-Up Ram 1500 TRX trims
