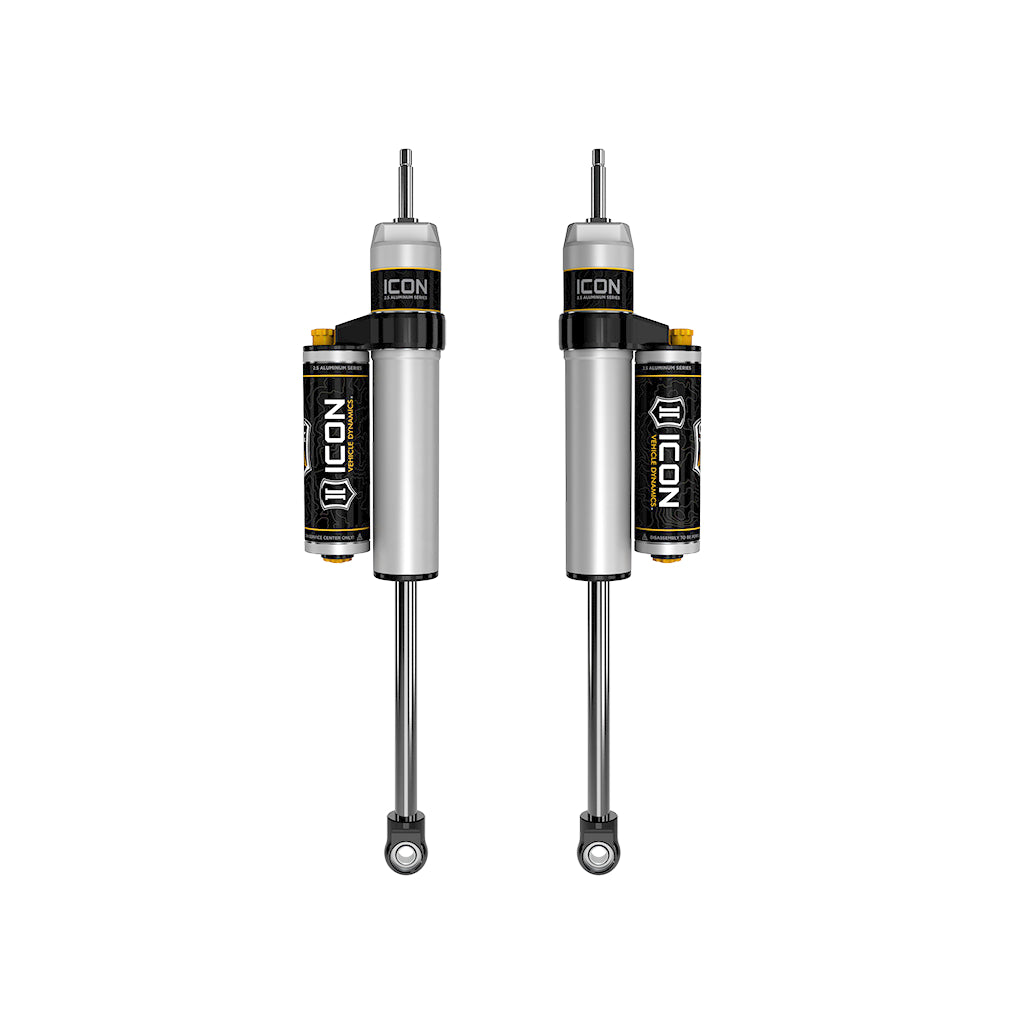

ICON 57720CP Toyota Tundra Rear 2.5 VS PB/CDCV Shocks Pair
ICON Vehicle Specific (V.S.) 2.5 Aluminum Series shocks are designed and built to give your vehicle outstanding performance off-road and a smooth ride on the street. These shocks are configured specifically for each application in both length and damping tune. Like all ICON'S Shock Absorbers, V.S. 2.5 Aluminum Series shocks are 100% rebuildable and 100% revalveable. For piggyback and specific remote reservoir applications ICON'S unique use of a 6061 billet aluminum manifold a few inches below the top cap of the shock creates an internal Bump Zone that when used creates an additional 20% of damping force. This additional force helps prevent harsh bottom outs and controls the suspension when compressing at high velocity. The ICON CDC Valve is an externally adjustable valve that restricts oil flow into the reservoir which creates 10 levels of compression damping force ranges. If you are looking for a more user defined tune, consider looking into the Omega Series bypass shocks.
FEATURES
- ICON's internal "Bump Zone" increases damping by 20% to provide more control as the shock approaches full compression
- Nitrogen charged monotube design with piggyback reservoir
- 6061 aircraft grade aluminum CNC machined components
- Remote reservoir design improves heat dissipation to reduce shock fade during prolonged use
- One piece digressive piston design with vehicle specific valving for unsurpassed performance and ride quality on and off-road
- 7/8" diameter induction hardened, chrome plated shock shaft
- One-piece impact extruded aluminum cylinders offer excellent corrosion resistance and consistent finish
- ICON's CDC Valve technology allows for 10 levels of high-resolution compression adjustability with the turn of a knob
- Premium grade 5WT shock oil for consistent suspension damping along a wide temperature range
- PTFE lined spherical bearings and application specific mounting hardware
- 100% Rebuildable
- 100% Revalveable
SPECIFICATIONS
- Adjustable: Yes
- Boot Included: NO
- Bore Diameter (IN): 2.25
- Gas Charged: Yes
- Lower Mount Type: Eyelet
- Mounting Hardware Included: Yes
- Service Parts: 252011 - 2.5 PIGGYBACK/REMOTE RESI/BYPASS REBUILD KIT
- Service Parts: 257340 - 7/8 SHAFT 14.25 OAL, 10.00 TRAVEL
- Service Parts: 611007 - 9/16 MEDIUM DUTY STEM BUSHING KIT
- Service Parts: 252001 - 2.5 FIXED SPANNER WRENCH
- Service Parts: 252003 - SEAL INSTALL TOOL 2.5/3.0
- Service Parts: 191016 - 7.5" FINNED RESI UPGRADE KIT
- Service Parts: 252002 - UNIVERSAL SPANNER WRENCH (2.0/2.5/3.0)
- Service Parts: 254100G - 1 GALLON ICON PERFORMANCE SHOCK OIL
- Shock Absorber Body End Measuring Point: Shoulder of Stem
- Shock Absorber Rod End Measuring Point: Center of Eylet
- Tube Outside Diameter (IN): 2.5
- Upper Mount Type: Stem
CALIFORNIA WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
