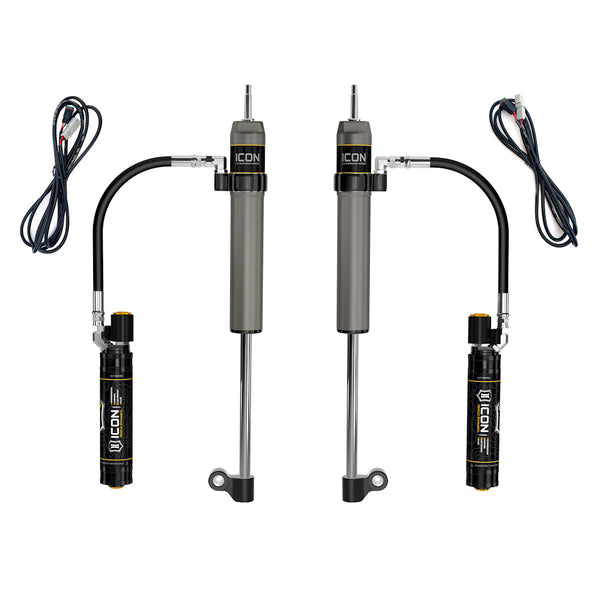

ICON 57826EP Toyota Tacoma Rear 2.5 RTX Omega RR/CDEV Shocks Pair

ICON Vehicle Specific (V.S.) 2.5 Aluminum Series shocks with CDEV are designed and built to give your vehicle outstanding performance off-road and a smooth ride on the street. These shocks are configured specifically for each application in both length and damping tune. For piggyback and specific remote reservoir applications, ICON'S unique use of a 6061 billet aluminum manifold a few inches below the top cap of the shock creates an internal Bump Zone that when used creates an additional 20% of damping force. This additional force helps prevent harsh bottom outs and controls the suspension when compressing at high velocity. This RXT rear shock features a side-mount eyelet making it shorter in collapsed length, longer at extension, and still fit in the factory mounting location, allowing for additional wheel travel when paired with ICON Multi-Rate Leaf Springs. Like all ICON'S Shock Absorbers, V.S. 2.5 Aluminum Series shocks with CDEV are 100% rebuildable and 100% revalveable.

FEATURES

• ICON's CDE Valve technology allows for in vehicle adjustment of compression damping settings and active adjustment via the ICON Intelligent Control (IIC)
• ICON's internal "Bump Zone" increases damping by 20% to provide more control as the shock approaches full compression
• One-piece, hard anodized, impact extruded aluminum cylinders offer excellent corrosion resistance and consistent finish
• Remote reservoir design improves heat dissipation to reduce shock fade during prolonged use
• Premium grade 5WT shock oil for consistent suspension damping along a wide temperature range
• Nitrogen charged monotube design with piggyback reservoir
• One-piece digressive piston design with vehicle specific valving for unsurpassed performance and ride quality on and off-road
• 7/8" diameter induction hardened, chrome plated shock shaft
• PTFE lined spherical bearings and application specific mounting hardware
• 6061 aircraft grade aluminum CNC machined components
• 100% Rebuildable
• 100% Revalveable

SPECIFICATIONS

• Adjustable: Electronically
• Boot Included: NO
• Bore Diameter (IN): 2.25
• Cylinder Color: Grey
• Cylinder Material: Aluminum
• Damping Type: Oil
• External Reservoir: Yes
• Gas Charged: Yes
• Grade Type: Performance
• Lower Mount Type: EYELET
• Mounting Hardware Included: Yes
• Service Parts: 252003 - SEAL INSTALL TOOL 2.5/3.0
• Service Parts: 611008 - 9/16 RXT HEAVY DUTY STEM BUSHING KIT
• Service Parts: 257341S - 7/8 SHAFT 15.25 OAL, 11.00 TRAVEL SHORT
• Service Parts: 252011 - 2.5 PIGGYBACK/REMOTE RESI/BYPASS REBUILD KIT
• Service Parts: 254100G - 1 GALLON ICON PERFORMANCE SHOCK OIL
• Service Parts: 191015 - 10" FINNED RESI UPGRADE KIT
• Service Parts: 252001 - 2.5 FIXED SPANNER WRENCH
• Service Parts: 252002 - UNIVERSAL SPANNER WRENCH (2.0/2.5/3.0)
• Shaft Diameter (IN): 0.875
• Shaft Material: Chrome
• Shock Absorber Body End Measuring Point: Shoulder of Stem
• Shock Absorber Rod End Measuring Point: Center of Eylet
• Tube Outside Diameter (IN): 2.5
• Upper Mount Type: Stem

TECH NOTES

• ICON Multi-Rate Leaf Springs Part # 158505 (QTY 2) required for installation
• Also requires installation of IIC kit (Part # 53502 or 53507) and CDEV front coilovers (Part # 58735E)
• Not compatible with 2005-2015 2WD 5-Lug Toyota Tacoma models
