Features & Benefits

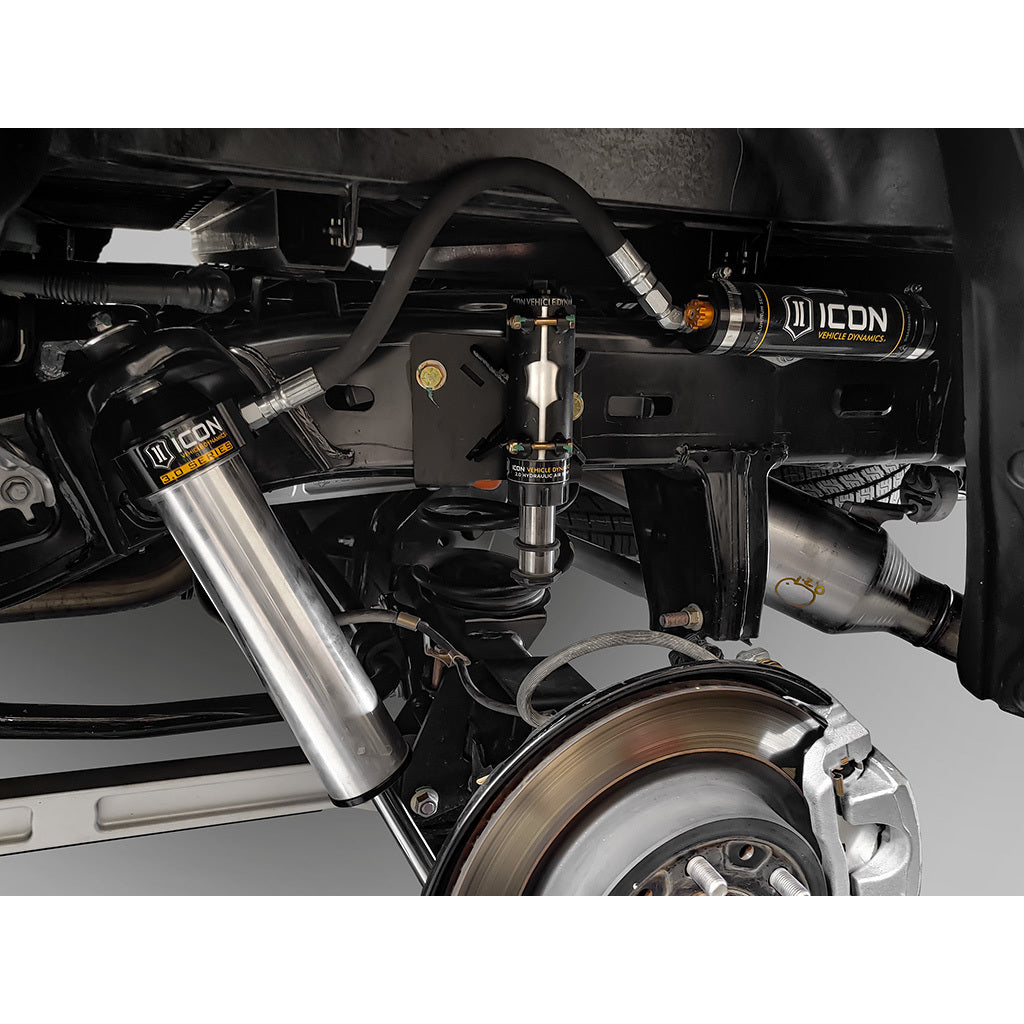

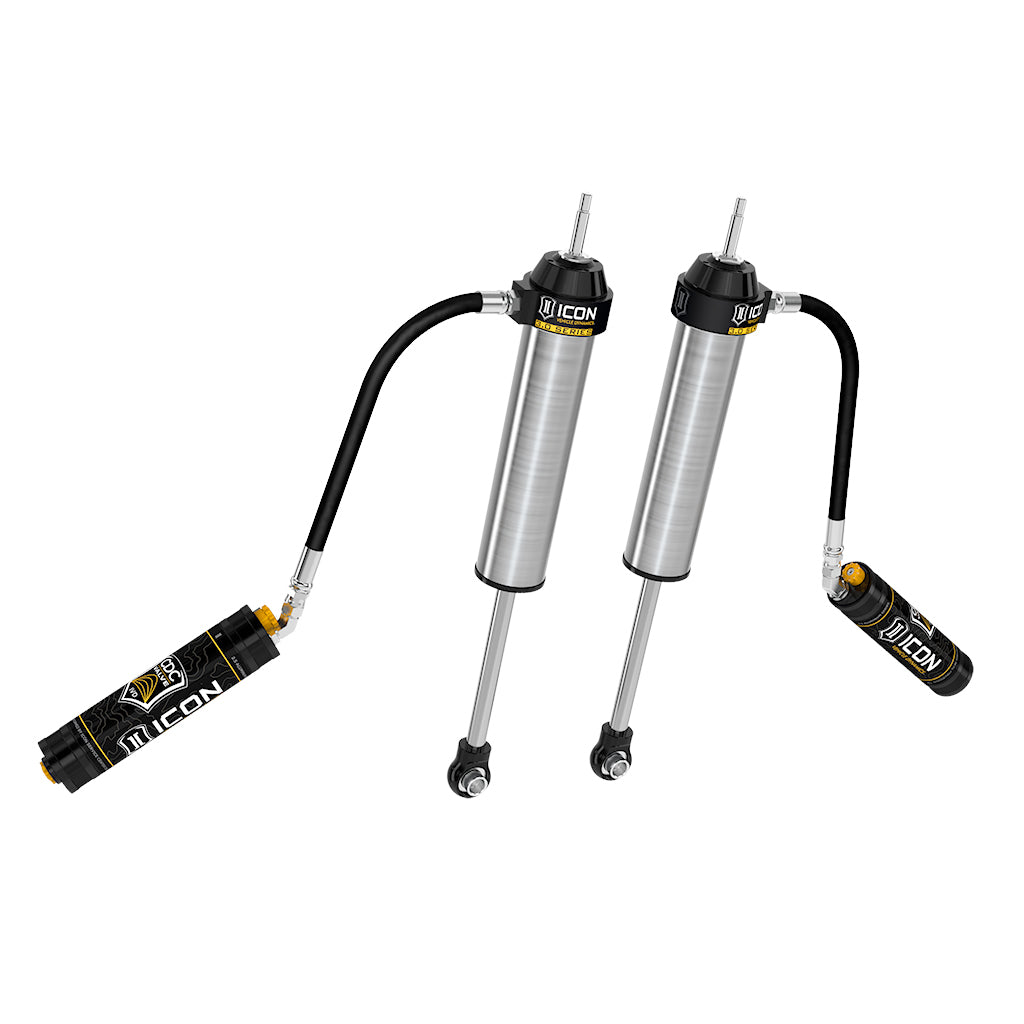

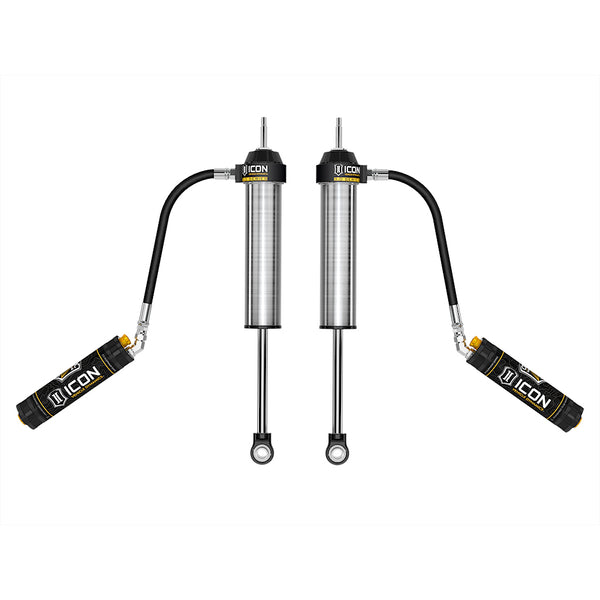

ICON's 3.0 Series Rear Shocks with CDCV for 2022-2023 Toyota Tundra/2023 Toyota Sequoia are designed to take the off-road capability of the truck to new levels by increasing wheel travel by up to 20% and significantly improving the damping ability of the rear shocks, while being compatible with rear lift heights up to 1.5" over stock on Tundra or 3" over stock on Sequoia.
FEATURES
- 20% increase in rear suspension travel compared to stock
- Compatible with up to 1.5" of rear lift on most Tundra models or 3" of lift on Sequoia
- Vehicle specific design and tuning for superior shock damping and control
- 3.0" Body diameter for increased oil volume and larger piston area
- Easy-to-adjust CDC Valve (Compression Damping Control) allows for end-user compression changes to suit all types of terrain and vehicle cargo configurations
- CNC machined 6061 aluminum components with a black anodized finish
- PTFE lined spherical bearings for extended longevity and minimal deflection
- 7/8" diameter induction hardened, chrome plated shock shafts
- Corrosion resistant CAD plated steel shock bodies
- Fully Rebuildable and Re-tunable
SPECIFICATIONS
- Adjustable: Yes
- Boot Included: NO
- Bore Diameter (IN): 2.75
- Cylinder Color: Grey
- Cylinder Diameter (IN): 3
- Cylinder Material: Steel
- Damping Adjustment Type: Manual
- Damping Type: Oil
- External Reservoir: Yes
- Gas Charged: Yes
- Grade Type: Performance
- Lower Mount Type: Eyelet
- Mounting Hardware Included: Yes
- Service Parts: 254100G - 1 GALLON ICON PERFORMANCE SHOCK OIL
- Shaft Diameter (IN): 0.875
- Shaft Material: Chrome
- Shock Absorber Body End Measuring Point: Shoulder of Stem
- Shock Absorber Rod End Measuring Point: Center of Eyelet
- Tube Outside Diameter (IN): 3
- Upper Mount Type: Stem
TECH NOTES
- Compatible with 0-1.5" of rear lift on non-TRD Tundras or 0-1" lift on TRD Tundras equipped with rear coil springs
- Compatible with 0-3" of rear lift on Tundras equipped with rear OE Load-leveling Rear Height Control Air Suspension
- Compatible with 0-3" of rear lift on 2023 Sequoias equipped with rear coil springs
- If upgrading a vehicle equipped with Adaptive Variable Suspension (AVS) all other vehicle systems remain functional
