Features & Benefits

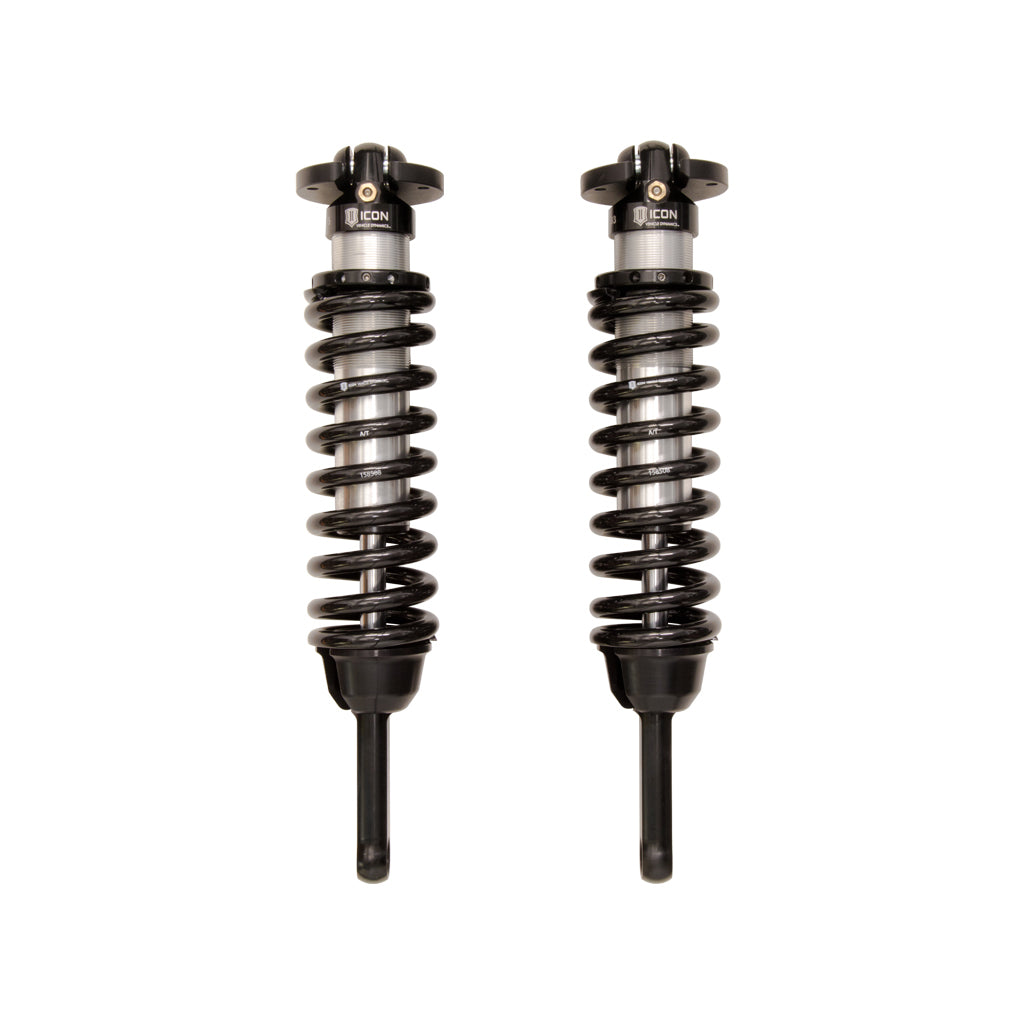

These ICON coilovers feature 2.5 Series shocks and coil springs optimized for this application. The shock's larger 2.5" body and increased piston area improves damping ability and ride characteristics across varying types of terrain.
FEATURES
- Vehicle specific tuned front shocks for superior shock damping and control
- Improved ride quality over stock both on and off-road
- Height-adjustable coilovers offer 0-2.75" of lift height adjustment
- ICON engineered coil springs with 700 lbs/in spring rate are more ideal for heavier equipped front ends
- 6061 Aircraft grade aluminum CNC machined components
- Corrosion resistant CAD plated shock body with 7/8" induction hardened, chrome plated shaft
SPECIFICATIONS
- Adjustable Damping: NO
- Adjustable Height: yes
- Body Diameter (IN): 2.5
- Boot Included: No
- Coil Over Springs Included: Yes
- Damping Type: Oil
- Dust Shield: No
- Gas Charged: yes
- Grade Type: Performance
- Lower Mount Type: Eyelet
- Material: Aluminum
- Material: Steel
- OEM Wheels & Tires Fitment: Yes
- Remote Reservoir: NO
- Service Parts: 252010 - 2.5 IFP REBUILD KIT
- Service Parts: 254100G - 1 GALLON ICON PERFORMANCE SHOCK OIL
- Service Parts: 611019 - COILOVER HARDWARE KIT PAIR
- Service Parts: 252001 - 2.5 FIXED SPANNER WRENCH
- Service Parts: 257301 - 7/8 SHAFT 10.25 OAL, 6.00 TRAVEL
- Service Parts: 252004 - ECONOMY NEEDLE CHARGING TOOL
- Service Parts: 252003 - SEAL INSTALL TOOL 2.5/3.0
- Service Parts: 611067 - TACOMA/FJ/4RNR LOWER CO BRG/SPCR KIT
- Service Parts: 252002 - UNIVERSAL SPANNER WRENCH (2.0/2.5/3.0)
- Shaft Diameter (IN): 0.875
- Shock Absorber Body End Measuring Point: Top of Upper Mount Plate
- Shock Absorber Rod End Measuring Point: Center of Eylet
- Spring Color: Black
- Spring Material: Steel
- Upper Mount Type: Mounting Plate
TECH NOTES
- OEM Wheels & Tires Fitment: Yes
- Recommended Aftermarket Wheels: ICON Alloys - 17x8.5 with 4.75" Backspace / 0mm Offset
- Recommended Aftermarket Wheels: ICON Alloys - 18x9 with 5.00" Backspace / 0mm Offset
- Recommended Aftermarket Wheels: ICON Alloys - 20x9 with 5.00" Backspace / 0mm Offset
- Recommended Aftermarket Tires: 33" x 11.50" (Larger tires may fit but fender trimming and modifications will be required.)
- 700lb/in spring rate only recommended for trucks with additional weight added to front end. See ICON Help Center for information.
- 2017-UP Tacoma TRD Pro models will have front lift height range of 0-1.25" over stock
