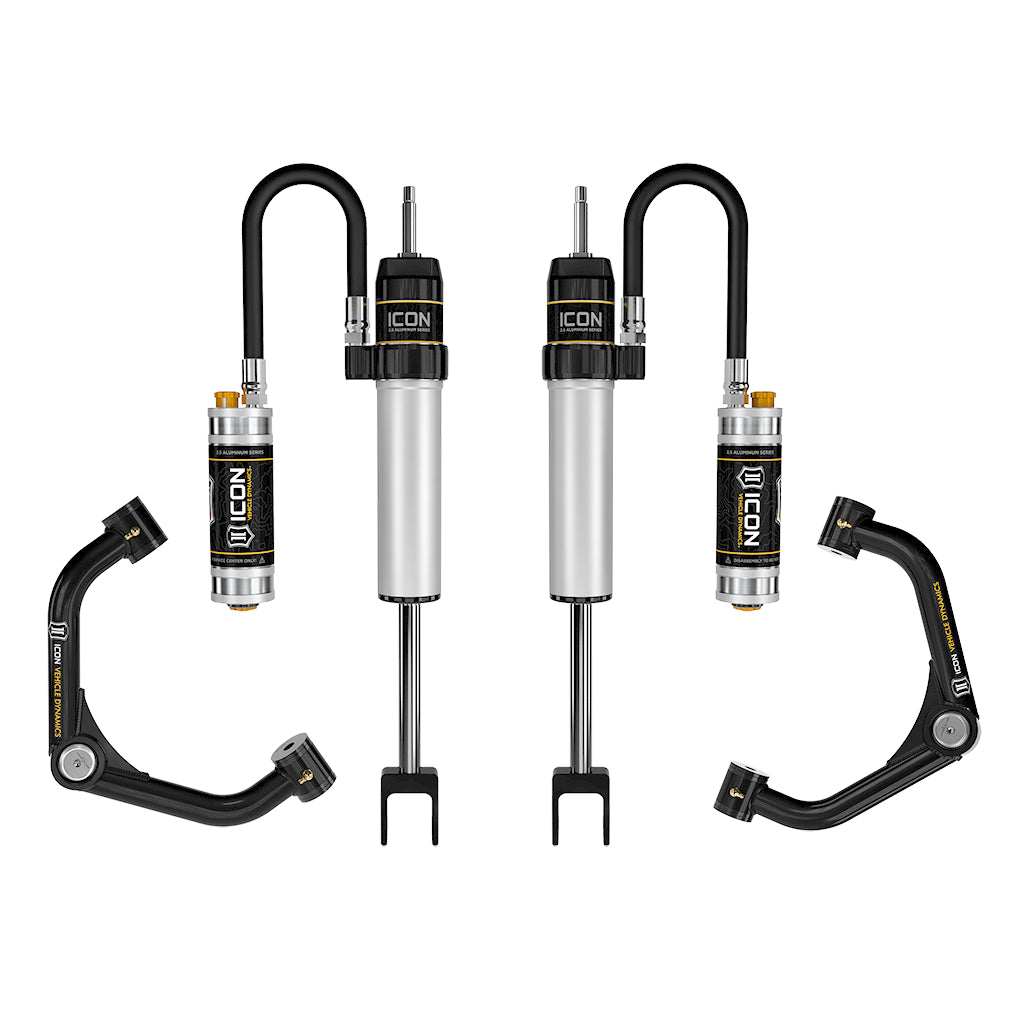

ICON 78735T GM 2500/3500 HD 0-2" Lift 2.5 VS Shock System/CDCV Tubular UCA

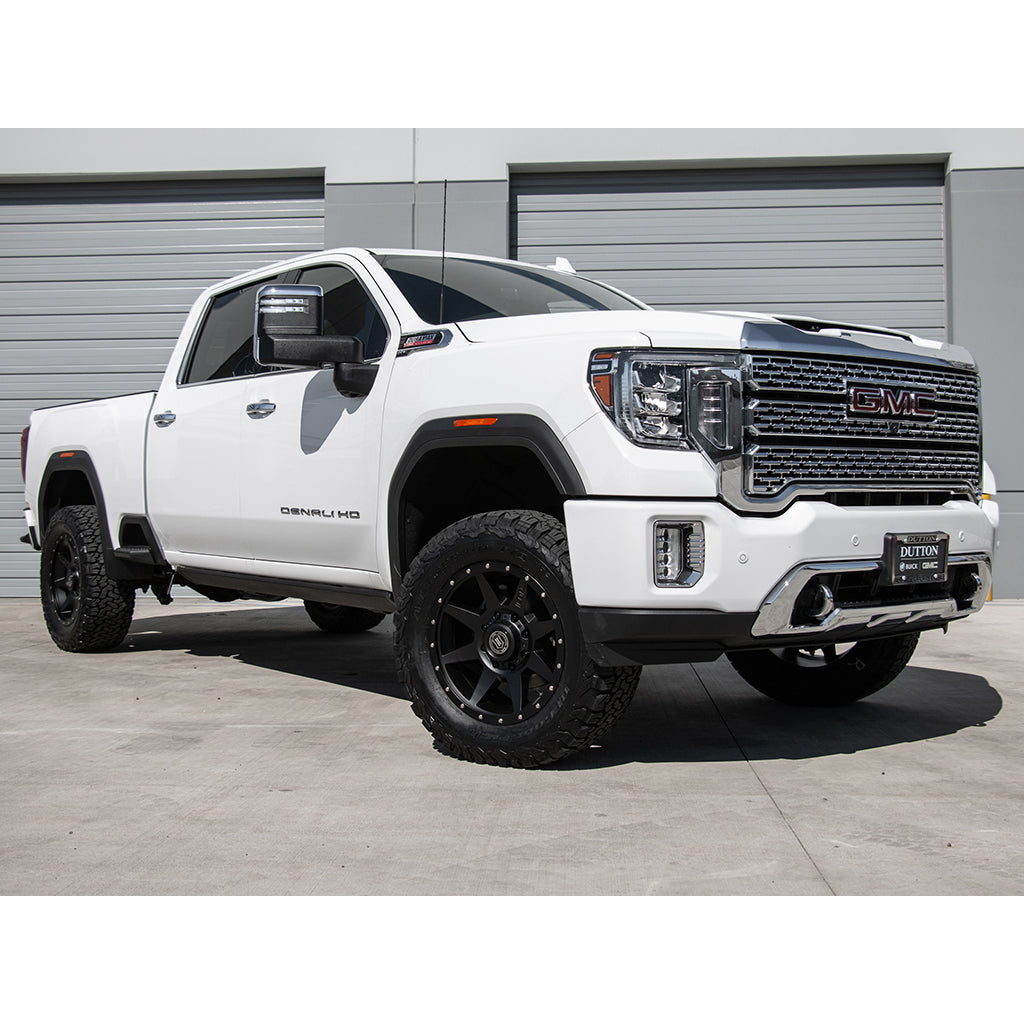

Take the performance of your 2020-Up GM HD truck to new levels with the ICON Vehicle Dynamics Delta Joint tubular upper control arm kit. All ICON tubular upper control arms are constructed from CNC bent 1026 DOM steel tubing and then powder coated to a semi-gloss black finish for maximum strength and corrosion resistance. ICON upper control arms are engineered with built-in caster correction for optimal alignment specifications and confidence inspiring handling. A main benefit of ICON upper control arms is the increased wheel travel when paired with our 2.5 series shock absorbers, this translates into superior performance and ride quality for your 2020-Up GM HD.

FEATURES

• Features ICON's Patented Delta Joint (U.S. Patent No. 10,731,700)
• CNC Bent Tubing
• CNC Machined Bushing Housings and Sleeves
• Built-In Caster Correction
• Serviceable Dual Stage Bushings
• Black Semi-Gloss Powder Coat Finish
• One-piece digressive piston design with vehicle specific valving for unsurpassed performance and ride quality on and off-road
• Nitrogen charged monotube design with remote reservoir
• ICON's CDC Valve technology allows for 10 levels of high-resolution compression adjustability with the turn of a knob
• Remote reservoir design improves heat dissipation to reduce shock fade during prolonged use
• ICON's internal "Bump Zone" increases damping by 20% to provide more control as the shock approaches full compression
• Premium grade 5WT shock oil for consistent suspension damping along a wide temperature range
• 7/8" diameter induction hardened, chrome plated shock shaft
• One-piece impact extruded aluminum cylinders offer excellent corrosion resistance and consistent finish
• 6061 aircraft grade aluminum CNC machined components
• 100% Rebuildable
• 100% Revalveable
• 1026 DOM Steel Construction

SPECIFICATIONS

• Adjustable: No
• Ball Joint Included: Yes
• Ball Joint Mounting Type: Press In
• Ball Joint Stud Type: Threaded
• Bushing Color: Black
• Bushing Material: Polyurethane
• Bushings Included: Yes
• Control Arm Color: Black
• Control Arm Construction: Tubular
• Control Arm Material: Steel
• Finish: Powdercoated
• Grade Type: Performance

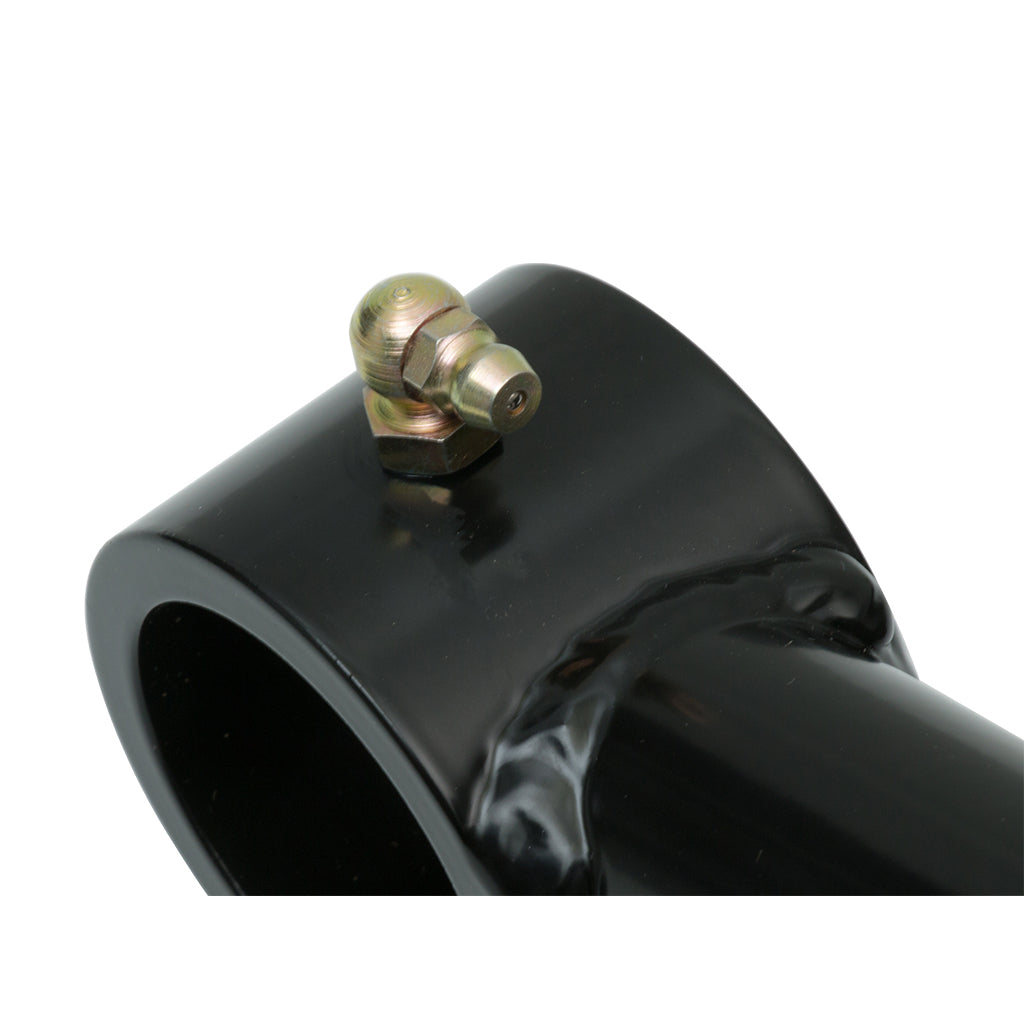

• Grease Fitting Included: yes
• Mounting Hardware Included: Yes
• OEM Wheels & Tires Fitment: Yes
• Pre-Greased: No
• Service Parts: 614519 - DELTA JOINT INSTALL PRESS ADAPTER TUBE
• Suspension Grade Type: Performance

TECH NOTES

• OEM Wheels & Tires Fitment: Yes
• Recommended Aftermarket Wheels: ICON Alloys - 18x9 with 5.5" Backspace / 12mm Offset
• Recommended Aftermarket Wheels: ICON Alloys - 20x9 with 5.5" Backspace / 12mm Offset
• Recommended Aftermarket Tires: 35" x 12.50" (Larger tires may fit but fender trimming and modifications will be required.)
• The additional down travel provided by an ICON Suspension System can cause clearance issues between the sway bar and the stock splash guard as the suspension approaches full extension. ICON Vehicle Dynamics 2020-UP GM HD Splash Guard Kit, part number 77202 recommended.
