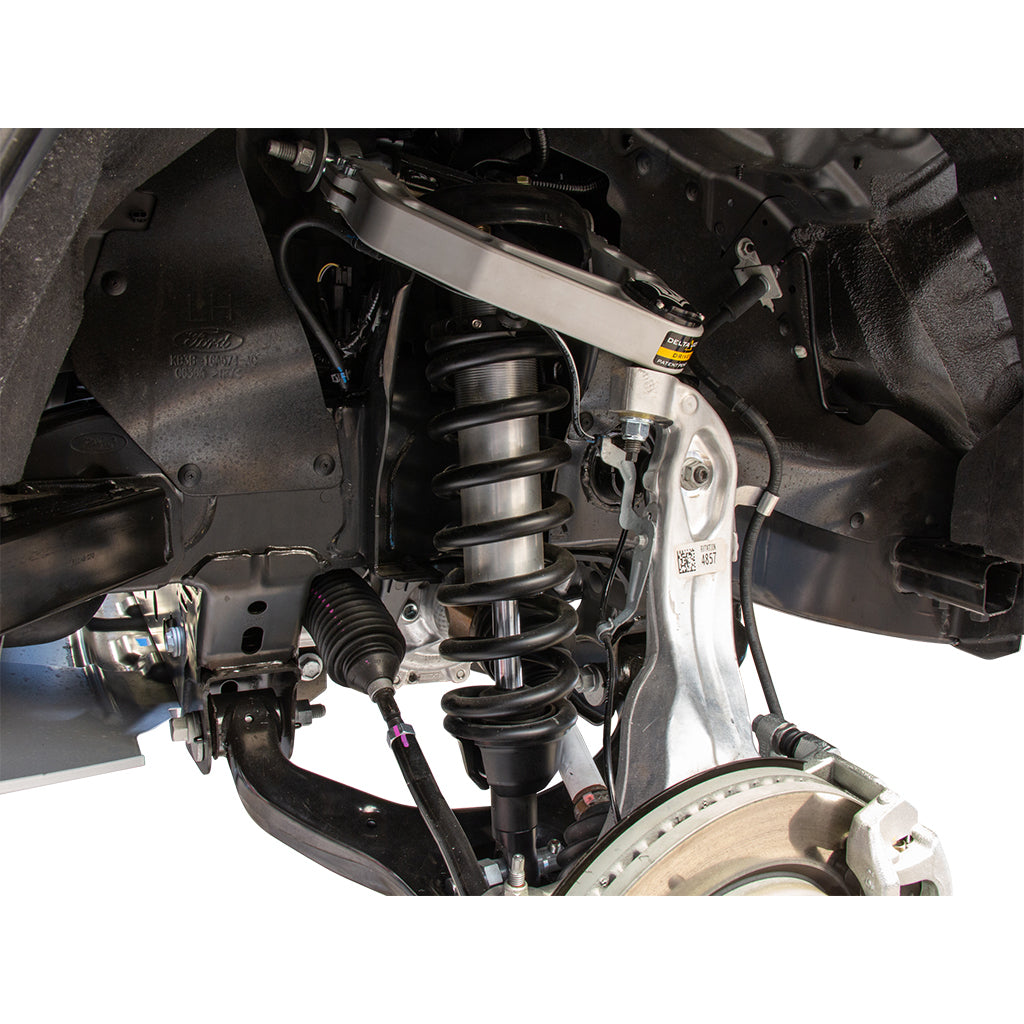

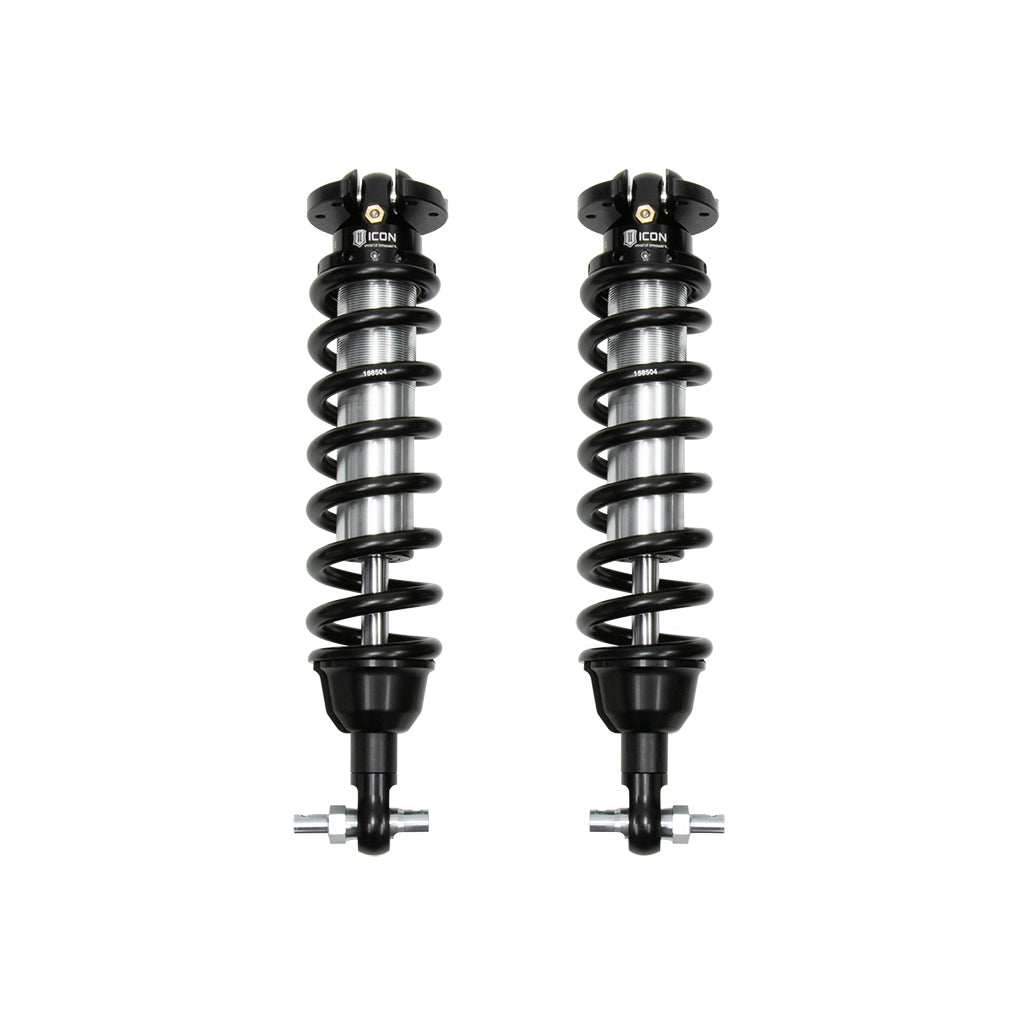

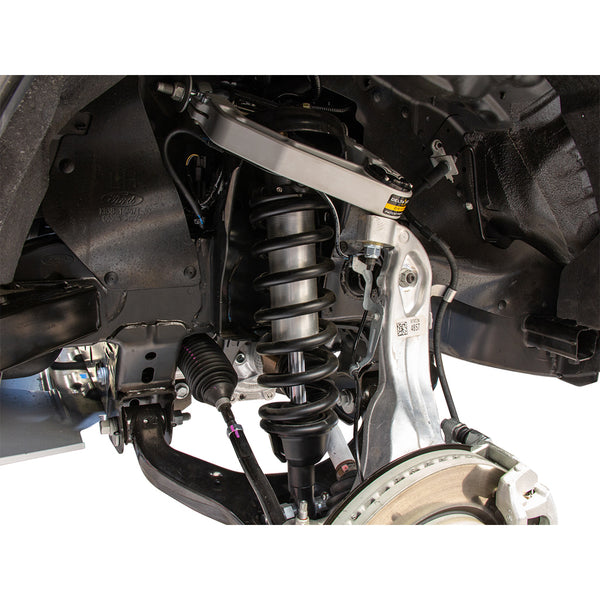

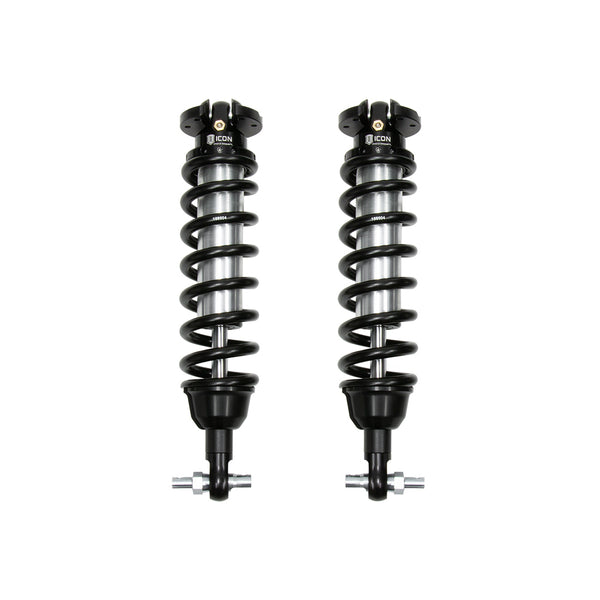

ICON 91255 Ford Ranger 0-3.5" Lift Extended Travel 2.5 VS Coilover Kit

ICON Vehicle Dynamics V.S. 2.5 Series internal reservoir front coilover shocks are an incredible upgrade for the front end of the 2019-2023 Ford Ranger. These adjustable coilovers allow up to 0-3.5" of lift height adjustability, allowing the use of larger, more aggressive wheel and tire combinations. ICON's Vehicle-specific valving along with the larger 2.5" shock body and increased piston area over stock components yield superior ride quality and suspension performance both on- and off-road. Their extended travel length requires ICON front upper control arms and yields increased front wheel travel compared to ICON standard travel coilovers for maximum suspension performance. When paired with ICON 2.0 or 2.5 Aluminum Series rear shock absorbers vehicle control will be balanced front to rear, resulting in the best overall driving experience for your Ford Ranger.

FEATURES

• Adjustable coilovers yield 0-3.5" of front lift height
• Vehicle specific valving provides unrivaled ride quality across a wide range of on and off-road use
• Extended travel length requires ICON upper control arms but offers more wheel travel and improved performance
• Superior low speed control reduces body roll and increases on-road stability
• High quality ICON-engineered coil springs are guaranteed for life against sagging or breakage
• Corrosion resistant CAD plated shock body with 7/8" diameter shaft
• Fully serviceable design allows for revalves, rebuilds, and an immeasurable service life
• Bolt-in design makes for an easy install into OEM shock location

SPECIFICATIONS

• Adjustable Damping: NO
• Adjustable Height: Yes
• Body Diameter (IN): 2.5
• Boot Included: No
• Coil Over Springs Included: Yes
• Damping Type: Oil
• Dust Shield: No
• Gas Charged: Yes
• Grade Type: Performance
• Lower Mount Type: BAR PIN
• Maximum Lift (IN): 3.5
• Minimum Lift (IN): 0
• OEM Wheels & Tires Fitment: Yes
• Remote Reservoir: NO
• Service Parts: 611019 - COILOVER HARDWARE KIT PAIR
• Service Parts: 252010 - 2.5 IFP REBUILD KIT
• Service Parts: 252002 - UNIVERSAL SPANNER WRENCH (2.0/2.5/3.0)
• Service Parts: 257338 - 7/8 SHAFT 12.25 OAL, 8.00 TRAVEL
• Service Parts: 252004 - ECONOMY NEEDLE CHARGING TOOL
• Service Parts: 252001 - 2.5 FIXED SPANNER WRENCH
• Service Parts: 254100G - 1 GALLON ICON PERFORMANCE SHOCK OIL
• Service Parts: 252003 - SEAL INSTALL TOOL 2.5/3.0
• Shaft Diameter (IN): 0.875
• Shock Absorber Body End Measuring Point: Top of Upper Mount Plate
• Shock Absorber Rod End Measuring Point: Flat on Bar Pin
• Spring Color: Black
• Spring Material: Steel
• Spring Rate Type: Linear
• Upper Mount Type: Mounting Plate

TECH NOTES

• Factory Wheels & Tires Fitment: Yes
• Recommended Aftermarket Wheels: ICON Alloys - 17x8.5" w/ 5.75" Backspace / 25mm Offset
• Recommended Aftermarket Wheels: ICON Alloys - 18x9" w/ 6.00" Backspace / 25mm Offset
• Recommended Aftermarket Tires: 33"x11.25" (Larger Tires May Fit but Fender Trimming and Modifications will be Required)
• APPLICATION NOTE #55: SHOCKS ARE FULLY SERVICEABLE. COILOVER HEIGHTS INDICATED ARE FOR A STOCK EQUIPPED VEHICLE
• APPLICATION NOTE #110: MINOR TRIMMING REQUIRED FOR RECOMMENDED TIRE SIZE
• Extended travel coilovers also require ICON front upper control arms. DO NOT install in conjunction with OE front upper control arms.
• Ranger XLT or Lariat models equipped with Tremor package have front lift height range of 0-2.5" over stock.
• Not compatible with Ranger Raptor.
