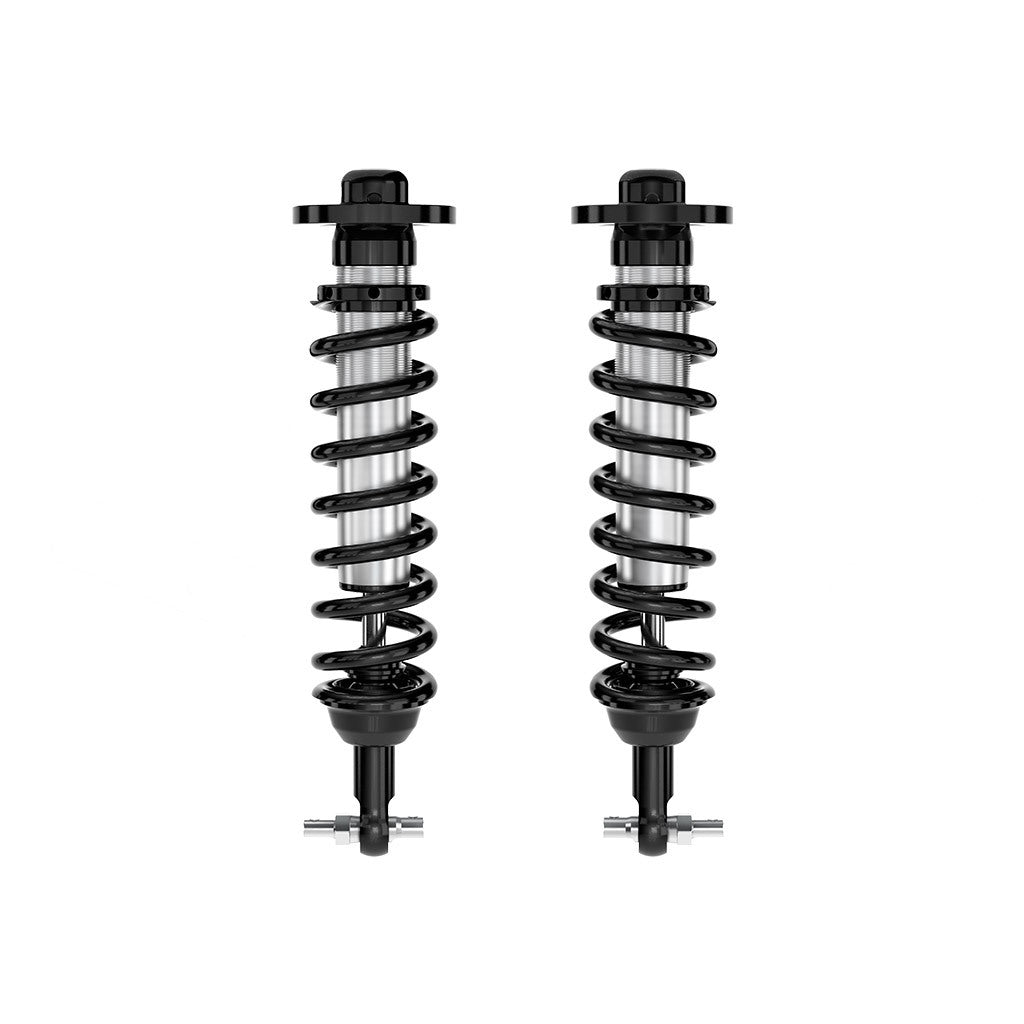

ICON 91717 Ford F150 2WD 0-2.75" Lift Front 2.5 VS IR Coilovers Pair

ICON Vehicle Dynamics V.S. Series 2.5" coilover shocks are an incredible upgrade for the front end of 2021-2023 Ford F-150 2WD trucks. ICON's Vehicle-specific valving provides a sport tuned feel on and off-road while 0-3" lift height adjustability over stock allows the use of larger, more aggressive wheel and tire combinations. The larger 2.5" shock body and increased piston area over stock components provides improved damping ability and outstanding ride characteristics across varying types of terrain. When paired with ICON rear 2.0 Aluminum Series or 2.5 Aluminum Series shocks vehicle control will be balanced front to rear, resulting in the best overall driving experience for your F-150 truck.

FEATURES

• Increased wheel travel and ride quality over stock
• 100% Bolt-on - no drilling,cutting or welding necessary for installation
• Vehicle specific tuned for superior shock damping and control
• Adjustable 0-3" lift height over stock
• ICON engineered Eibach Springs
• 6061 Aircraft grade aluminum CNC machined components
• Corrosion resistant CAD plated shock bodies with 7/8" shafts
• High strength alloy CNC machined lower bar pin
• FK rod end bearings for extended longevity and minimal deflection

SPECIFICATIONS

• Adjustable Damping: NO
• Adjustable Height: yes
• Body Diameter (IN): 2.5
• Boot Included: No
• Coil Over Springs Included: Yes
• Damping Type: Oil
• Dust Shield: No
• Gas Charged: yes
• Grade Type: Performance
• Lower Mount Type: BAR PIN
• Maximum Lift (IN): 3
• OEM Wheels & Tires Fitment: Yes
• Remote Reservoir: NO
• Service Parts: 257337 - 7/8 SHAFT 11.25 OAL, 7.00 TRAVEL
• Service Parts: 252002 - UNIVERSAL SPANNER WRENCH (2.0/2.5/3.0)
• Service Parts: 252010 - 2.5 IFP REBUILD KIT
• Service Parts: 254100G - 1 GALLON ICON PERFORMANCE SHOCK OIL
• Service Parts: 611019 - COILOVER HARDWARE KIT PAIR
• Service Parts: 252003 - SEAL INSTALL TOOL 2.5/3.0
• Service Parts: 252004 - ECONOMY NEEDLE CHARGING TOOL
• Service Parts: 252001 - 2.5 FIXED SPANNER WRENCH
• Shaft Diameter (IN): 0.875
• Shock Absorber Body End Measuring Point: Top of Upper Mount Plate
• Shock Absorber Rod End Measuring Point: Flat on Bar Pin
• Spring Color: Black
• Spring Material: Steel
• Upper Mount Type: Mounting Plate

TECH NOTES

• Factory Wheels & Tires Fitment: Yes
• Recommended Aftermarket Wheels: ICON Alloys - 17x8.5" w/ 5" Backspace / 6mm Offset
• Recommended Aftermarket Wheels: ICON Alloys - 18x9" w/ 5.25" Backspace / 6mm Offset
• Recommended Aftermarket Wheels: ICON Alloys - 20x9" w/ 5.625" Backspace / 16mm Offset
• Recommended Aftermarket Tires: 33" x 11.50" (Larger Tires May Fit but Fender Trimming and Modifications will be Required)
• Only compatible with rear-wheel drive (2WD) models
• Lift heights above 2" over stock may require aftermarket front upper control arms to maintain proper alignment
• Models equipped with PowerBoost hybrid engines will have lift height range of 0-2.75" over stock
• Models equipped with Power-Stroke diesel engines will have lift height range of 0-2.5" over stock
• Not compatible with models equipped with Continuously Controlled Damping (CCD) system
• Not compatible with models equipped with BlueCruise
