ICON 93500 Ford F-150 & Ford Super Duty Intelligent Control Install Kit

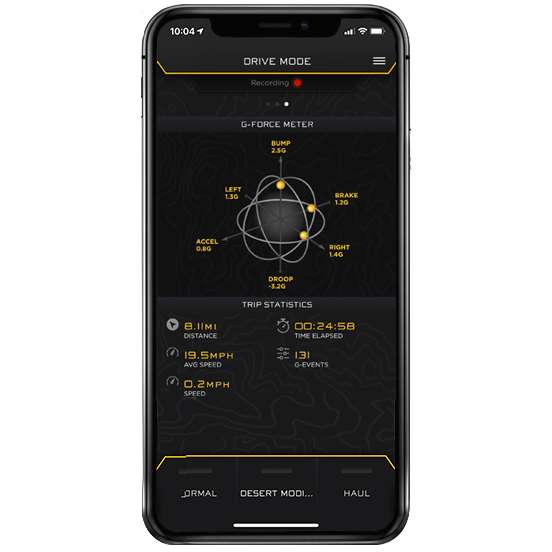

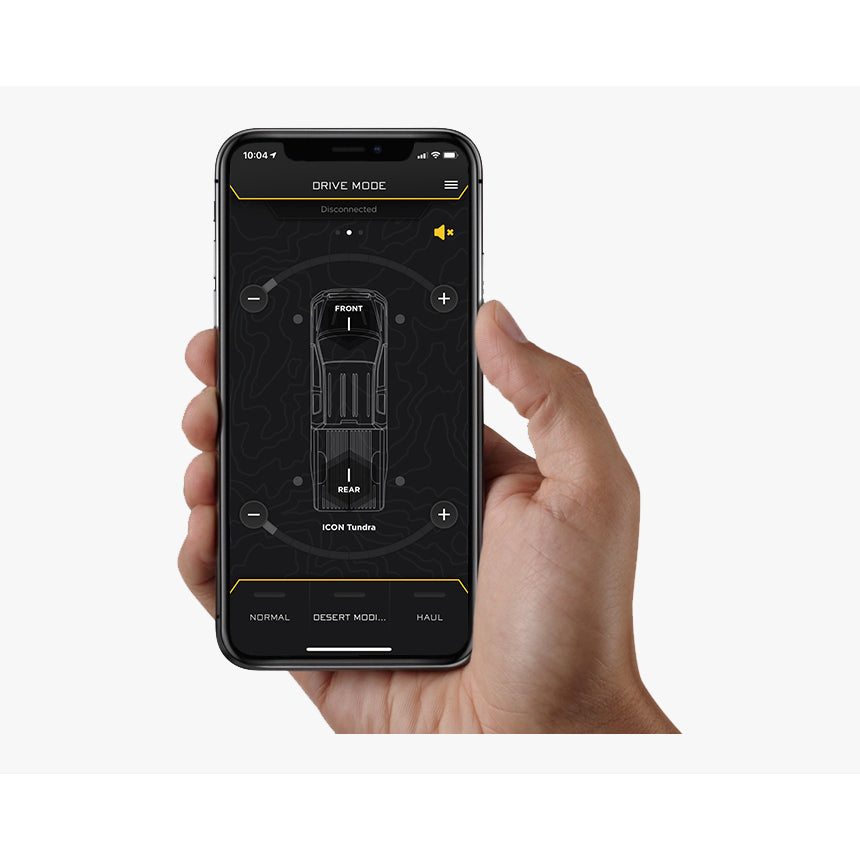

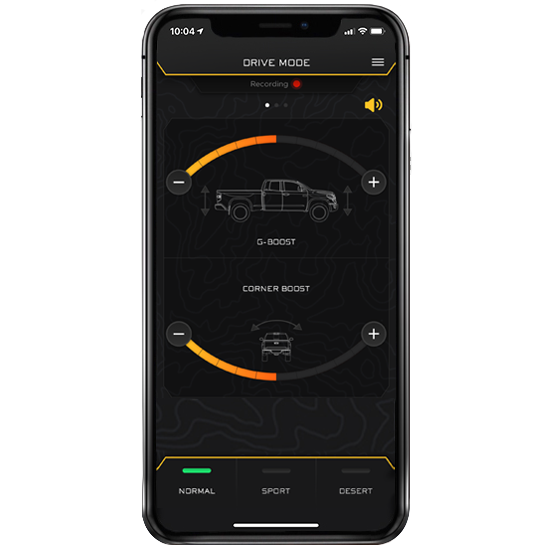

The IIC App brings all of this technology together by offering a user-friendly interface to monitor, record, and adjust the system's performance via Bluetooth connection. Users can easily alter the shocks' baseline settings for firmness, as well as adjust the sensitivity of vertical "G-Boost" and lateral "Corner Boost" with a few simple taps from their favorite iOS device. The App includes several preconfigured 'Drive Modes' (Normal, Desert, and Haul) but also offers the ability for users to create an unlimited number of unique presets using their own custom settings. To top it all off, you can record data from your trip including time, speed, distance and G-Forces for your very own ICONIC Overview.

FEATURES

• Offers selectable active shock damping adjustment as well as manual adjustment of baseline settings without exiting vehicle
• Onboard sensors monitor G-forces and movement of vehicle chassis
• Performs calculations based on sensor inputs, custom algorithms, and user defined settings at a rate of over 1000 times per second
• Sends necessary damping adjustments to CDEV shocks that react in under 40 milliseconds
• User interface provided by IIC Mobile App via Bluetooth connection to iOS device
• Mobile app offers preconfigured "Drive Modes" as well as the ability to create custom presets
• Also functions as a data logger for time, speed, distance, and G-force allowing you to record data from your trips
• Application specific mounting brackets, hardware and wire harnesses

SPECIFICATIONS

• Connector Gender: Female

TECH NOTES

• Also requires installation of CDEV front and rear shock absorbers
• Included wire harnesses allows IIC to operate 4 CDEV equipped shocks, 2 fronts and 2 rears. For optional CDEV secondary front shocks in addition to CDEV primary shocks, part number 191207 is also required.

CALIFORNIA WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
