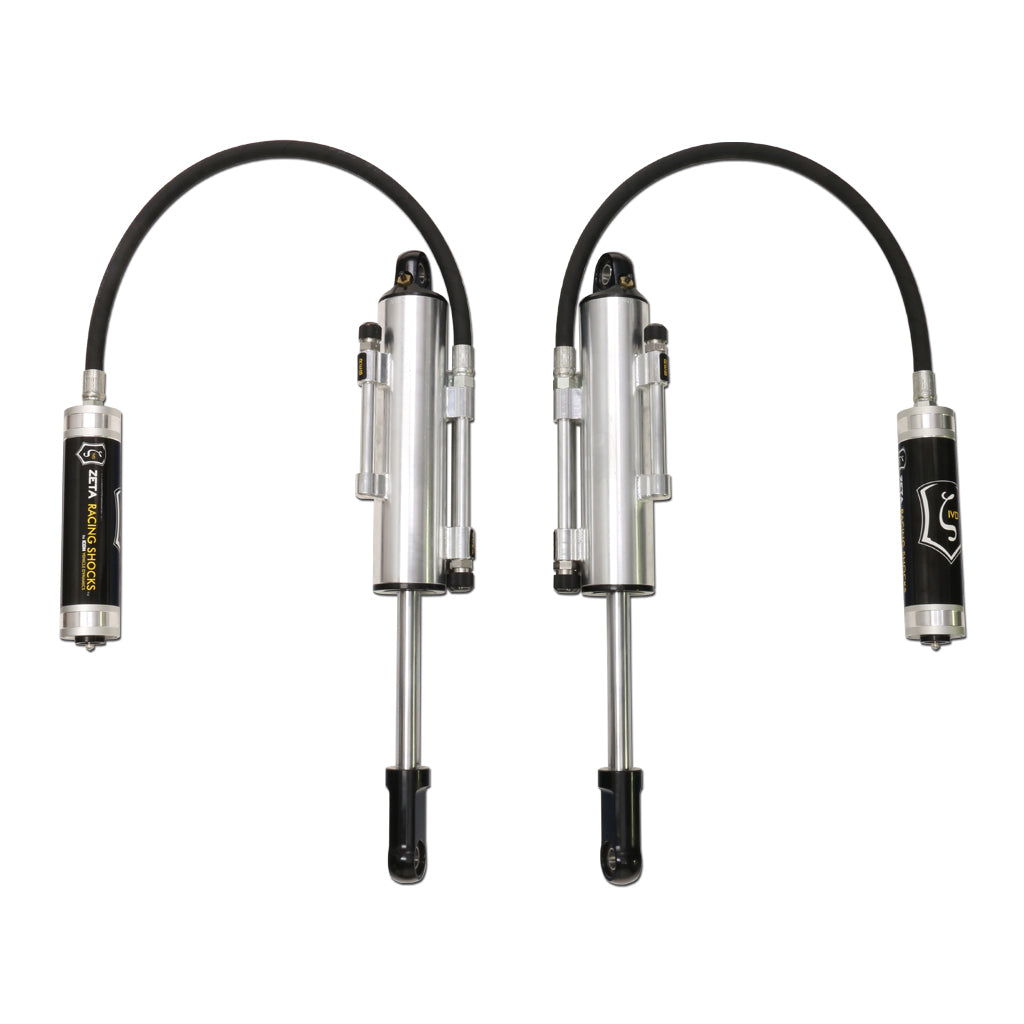

ICON 95005 Ford Raptor Front Secondary 3.0 Zeta Remote Reservoir Shocks Pair

For high performance Ford Raptor suspension components, ICON Vehicle Dynamics is an industry leader. With our 3.0 coil-overs and bypasses, billet aluminum upper control arms, and bolt-on rear bumpstop system, drivers of ICON-equipped Ford Raptors are able to push their vehicles to a whole new level. It is this level of off-road abuse that prompted ICON to develop a 3.0 Secondary Bypass shock that is engineered to work perfectly with the Camburg Performance Dual Shock Lower Control Arm kit. The addition of this 3.0 Secondary Bypass means rougher terrain and larger off-road obstacles can be overcome with speed and confidence. With the turn of a knob, the compression and rebound damping of these shocks can be tuned to perfectly compliment the rest of ICON's Raptor suspension products for an unparalleled level of on and off-road performance.

FEATURES

• Further increases front damping ability of the Raptor in off-road conditions
• East-to-adjust bypass knobs allow for quick changes to shock without the use of tools
• Hydraulically damped bypass valve seats are engineered to attenuate the loud bypass clicking noise transferred to the cab that is common with other brands.
• High resolution bypass valves designed for noticeable fine-tuning of rebound and compression damping
• Digressive rebound on main piston in conjunction with calibrated external rebound valve preload facilitates good low-speed characteristics. This is in contrast to most bypass shocks that are designed primarily for high-speed use only.
• Compact bypass tube design allows ICON to fit 3 bypass tubes where others could only fit 2, allowing for more adjustability of the shock
• Compact tube block design keeps bypass tubes close to the body, providing maximum clearance from tires and other suspension components
• Replaceable bypass tubes can easily slide into position in case of damage
• Multi Stage Cad Plated Finish with Polished and Anodized Top Cap / Rod Ends

SPECIFICATIONS

• Adjustable: Yes
• Boot Included: NO
• Bore Diameter (IN): 2.75
• Cylinder Color: Silver
• Cylinder Material: Steel
• Damping Type: Oil
• External Reservoir: Yes
• Gas Charged: Yes
• Grade Type: Performance
• Lower Mount Type: Eyelet
• Mounting Hardware Included: Yes
• Service Parts: 252003 - SEAL INSTALL TOOL 2.5/3.0
• Service Parts: 252002 - UNIVERSAL SPANNER WRENCH (2.0/2.5/3.0)
• Service Parts: 254100G - 1 GALLON ICON PERFORMANCE SHOCK OIL
• Service Parts: 302005 - 3.0 ICON REBUILD KIT (ALL)
• Shaft Diameter (IN): 1
• Shaft Material: Chrome
• Shock Absorber Body End Measuring Point: TOP OF MOUNTING PLATE
• Shock Absorber Rod End Measuring Point: Center of Eylet
• Tube Outside Diameter (IN): 3
• Upper Mount Type: Mounting Plate
