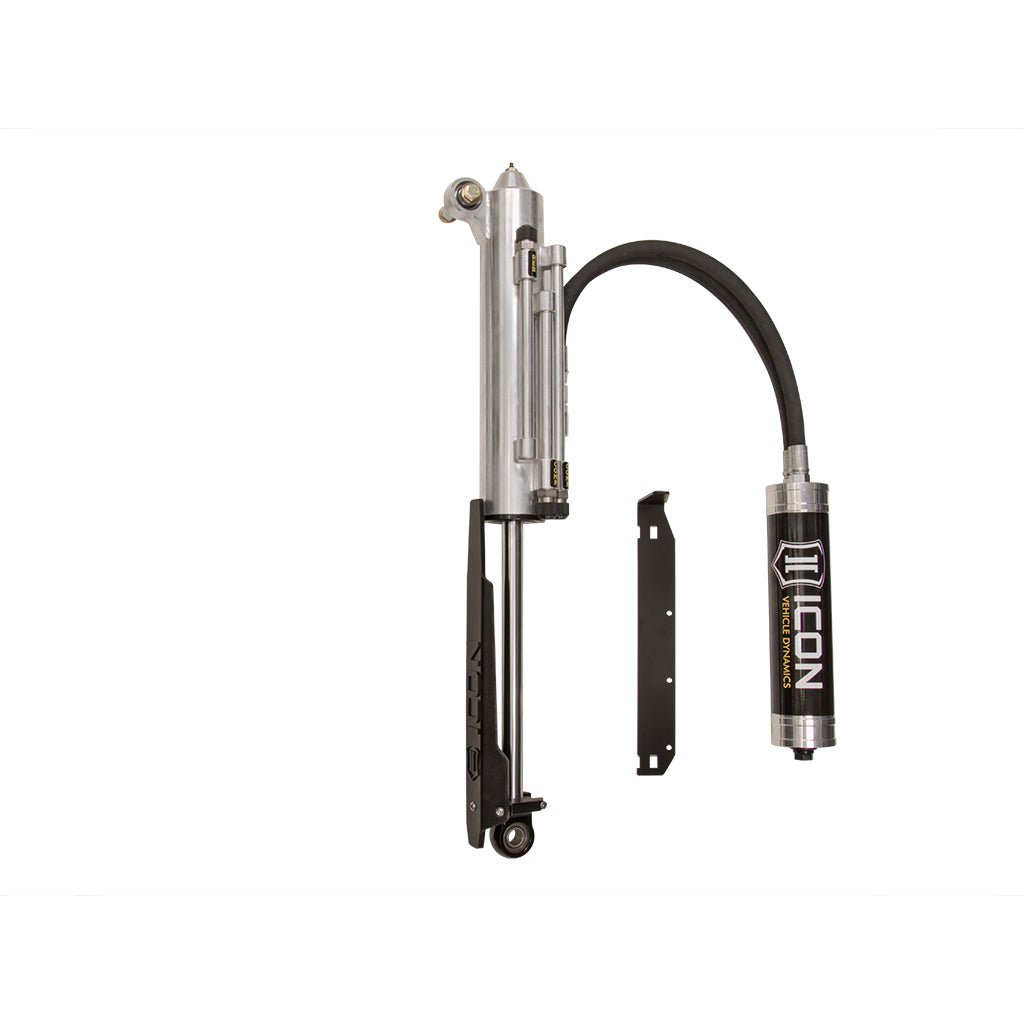

ICON 95201R Ford Raptor RXT 3.0 Zeta Remote Reservoir Shock Passenger Side

ICON Vehicle Dynamics is known for its extensive research and development put into every product, the revolutionary outcome of this research is what sets ICON apart from the off-road industry standard. The Ford SVT Raptor was the first production truck, designed & built, to bridge the gap between a standard street "pickup truck" and an off-road pre-runner. Since the Raptor's release ICON Vehicle Dynamics' engineers have pushed this vehicle to extremes in order to develop the most comprehensive suspension components on the market. From the brutal deserts of the Southwest, to the deep snow of Michigan's U.P., to the wooded trails of the East coast, ICON suspension systems have been put to the test and performed flawlessly. Unable to leave "well-enough" alone, ICON is once again aiming to raise the bar in Raptor performance with the introduction of the RXT Rear 3.0 Remote Reservoir Bypass Shock.

FEATURES

• 3.0 RXT 3 tube bypass rear shock with 3.0 remote reservoir
• Unique side-mounted upper eyelet allows for increased up-travel while utilizing factory mounting location
• Recirculating Dual Hose Reservoir (Patent Pending) keeps shock temperatures low by pumping heat to the reservoir for increased dissipation
• Anti-Wobble Link (Patent Pending) keeps bypass tubes clear of leaf spring and tire
• Easy-to-Adjust detented adjustment knobs offer quick adjustability without the use of tools
• High resolution bypass valves designed for noticeable fine tune adjustments in rebound and compression
• High flow CNC machined welded bypass blocks designed to increase fluid flow for enhanced performance & high definition tuning
• Replaceable bypass tubes that can easily be replaced if damaged
• Direct bolt in to OEM location with bypass adjustment knobs easily accessible for tuning adjustment
• Special engineered damped valve seats for quiet and precise operation without the standard bypass loud "clicking" noise you will find with other brands
• Multi stage cad plated finish with polished and anodized top cap / rod ends
• Protective shin guards standard with every shock

SPECIFICATIONS

• Adjustable: Yes
• Body Diameter (IN): 3
• Boot Included: yes
• Bore Diameter (IN): 2.75
• Cylinder Color: Silver
• Cylinder Material: Steel
• Damping Type: Oil
• External Reservoir: Yes
• Gas Charged: Yes
• Grade Type: Performance
• Lower Mount Type: EYELET
• Mounting Hardware Included: Yes
• Service Parts: 252002 - UNIVERSAL SPANNER WRENCH (2.0/2.5/3.0)
• Service Parts: 252003 - SEAL INSTALL TOOL 2.5/3.0
• Service Parts: 302005 - 3.0 ICON REBUILD KIT (ALL)
• Service Parts: 254100G - 1 GALLON ICON PERFORMANCE SHOCK OIL
• Shaft Diameter (IN): 1
• Shaft Material: Chrome
• Shock Absorber Body End Measuring Point: CENTER OF EYELET
• Shock Absorber Rod End Measuring Point: CENTER OF EYELET
• Upper Mount Type: EYELET

TECH NOTES

• These shocks are sold individually. Driver side shock part # 95201L is also required.
