Features & Benefits

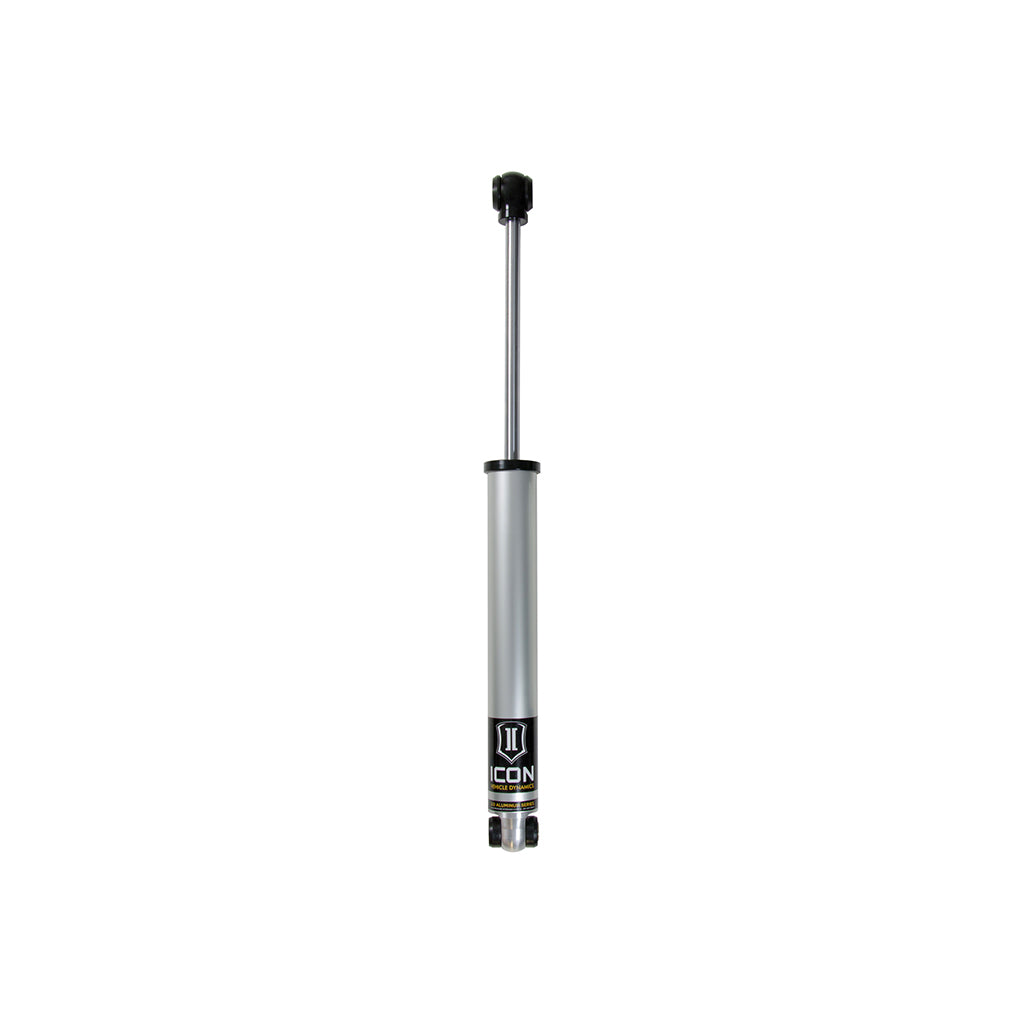

ICON Vehicle Specific (V.S.) 2.0 Aluminum Series shock absorbers are the ultimate in cost effective upgrades, specifically tailored by ICON engineers for your application. The V.S. 2.0 Aluminum Series shocks are a high-quality upgrade for the everyday street driver and weekend warrior looking for improved on and off-road performance. Like all ICON shock absorbers, V.S. 2.0 Aluminum Series shocks are 100% rebuildable and 100% revalveable. For those using their vehicle in extreme off-road situations, consider the ICON V.S. 2.5 Series shock to handle extra abuse and punishment your suspension will need to endure.
FEATURES
- Premium Grade 5WT Shock Oil for consistent suspension damping along a wide temperature range
- Nitrogen Charged Monotube Design with Internal Reservoir
- One Piece Linear/Digressive Piston Design with Vehicle Specific Valving for Unsurpassed Performance and Ride Quality On and Off-road
- 5/8" Chrome Plated, Hardened Steel Shaft resists corrosion and pits
- 6061 Aluminum Rod End, Top Cap and internals insure Strength and Durability
- Polyurethane Bushings and zinc plated sleeves for OE factory type Fitment
- 6063 Anodized Aluminum body for Superb Heat Dissipation, Excellent Corrosion Resistance, and High TechAppearance
- Buna Top Out Bumper for noise free operation
- 100% Rebuildable
- 100% Revalveable
SPECIFICATIONS
- Adjustable: No
- Adjustable Damping: No
- Body Diameter (IN): 2
- Boot Included: No
- Bushing Color: Black
- Bushing Included: yes
- Bushing Material: Polyurethane
- Coil Over Springs Included: No
- Color: Silver
- Color: Black
- Dust Shield: No
- Finish: Anodized
- Gas Charged: Yes
- Grade Type: Performance
- Hydraulic Lockout: No
- Internal Construction Type: Single Tube
- Internal Rebound Bumper: Yes
- Lower Mount Type: Eyelet
- Remote Reservoir: NO
- Rod Diameter (IN): .625
- Service Parts: 252004 - ECONOMY NEEDLE CHARGING TOOL
- Service Parts: 252002 - UNIVERSAL SPANNER WRENCH (2.0/2.5/3.0)
- Service Parts: 254101G - 1/2 GALLON ICON PERFORMANCE SHOCK OIL
- Shock Absorber Body End Measuring Point: Center of Eylet
- Shock Absorber Rod End Measuring Point: Center of Eylet
- Upper Mount Type: Eyelet
TECH NOTES
- Compatible with Rangers equipped with 0-1.5" of rear lift over stock
- Not compatible with Ranger Raptor
CALIFORNIA WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
-
