Features & Benefits

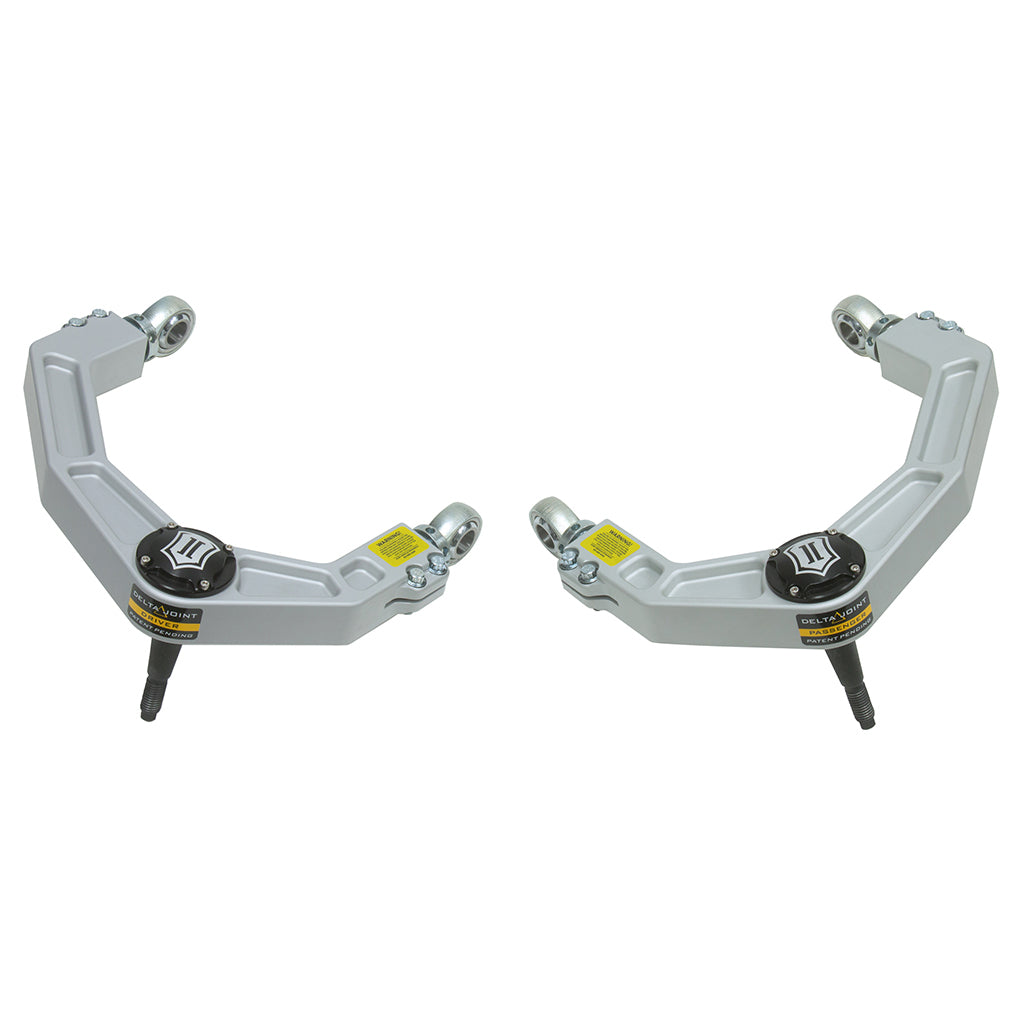

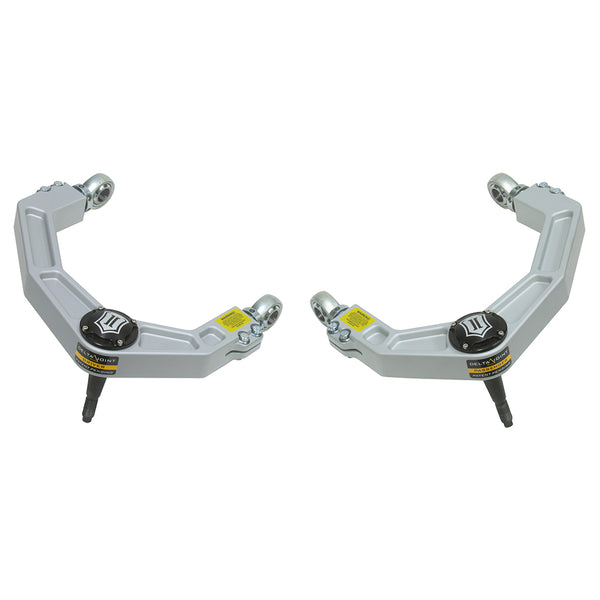

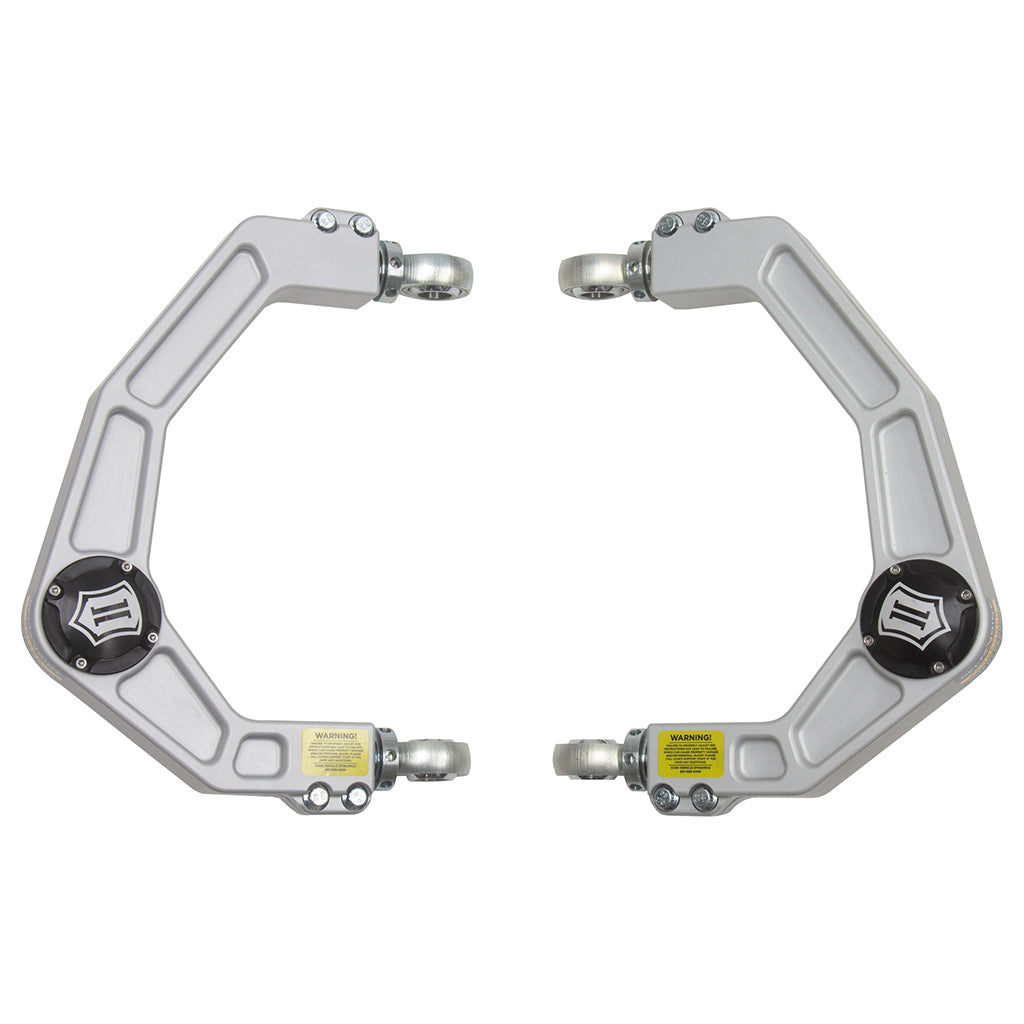

Take the performance of your 2009-2020 Ford F150 to new levels with the ICON Vehicle Dynamics Delta Joint billet aluminum upper control arm kit. These upper control arms are designed to improve the overall performance of the F150 with corrected front-end geometry, adjustable camber and caster, and improved suspension component clearance. Constructed of CNC machined 6061 billet aluminum, these control arms merge lightweight construction with high strength properties for a product that functions just as well as it looks. Replacing the OE ball joint with the included ICON Delta Joint allows for full bump and droop travel of the front suspension while eliminating bind. FK Rod End heim joints provide precise and smooth function throughout the range of travel while ICON's signature double adjuster sleeve allows for on-vehicle camber and caster adjustment. Included with all components and hardware necessary for a complete install, these billet UCAs are the perfect upgrade for the 2009-2020 Ford F150.
FEATURES
- Features patended ICON Delta Joint (U.S. Pat. 10,731,700)
- CNC Machined 6061 Billet Aluminum Construction

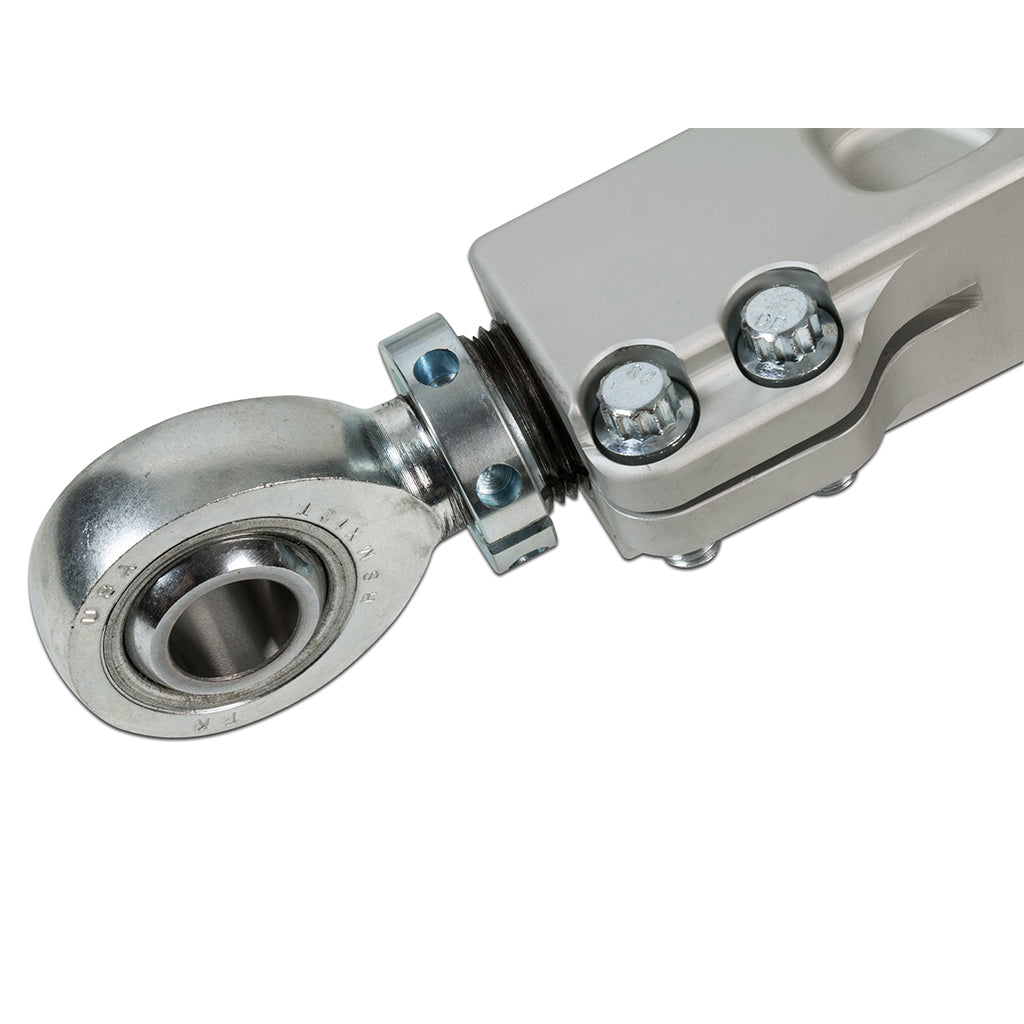

- High-Quality PTFE-lined 3/4" FK Rod Ends
- On-Vehicle Adjustable For Quick And Precise Alignment
- Caster and Camber Adjustability Allows For Fine Tuning Of Vehicle Handling
- Matte Anodized Finish Provides Exceptional Corrosion Resistance
- O-ring Sealed Delta Joint Cover Cap For Additional Protection From The Elements
SPECIFICATIONS
- Adjustable: Yes
- Ball Joint Included: Yes
- Ball Joint Mounting Type: Press In
- Ball Joint Stud Type: Threaded
- Bushing Material: Rod End Bearing
- Bushings Included: Yes
- Control Arm Color: Silver
- Control Arm Construction: Billet
- Control Arm Material: Aluminum
- Finish: Anodized
- Grade Type: Performance
- Grease Fitting Included: yes
- Mounting Hardware Included: Yes
- OEM Wheels & Tires Fitment: Yes
- Pre-Greased: No
- Service Parts: 614520 - DELTA JOINT INSTALL ADAPTER AND SHIM
- Service Parts: 614554 - 04-UP F150/09-UP RAM 1500 DELTA JOINT KIT
- Suspension Grade Type: Performance
TECH NOTES
- OEM Wheels & Tires Fitment: Not compatible with all available OE wheel/tire combinations. Aftermarket wheels with lower offset/less backspace recommended.
- Recommended Aftermarket Wheels: ICON Alloys - 17x8.5" w/ 5" Backspace / 6mm Offset
- Recommended Aftermarket Wheels: ICON Alloys - 18x9" w/ 5.25" Backspace / 6mm Offset
- Recommended Aftermarket Wheels: ICON Alloys - 20x9" w/ 5.625" Backspace / 16mm Offset
- NOT compatible with Continuous Control Damping (CCD) equipped Expeditions
