Features & Benefits

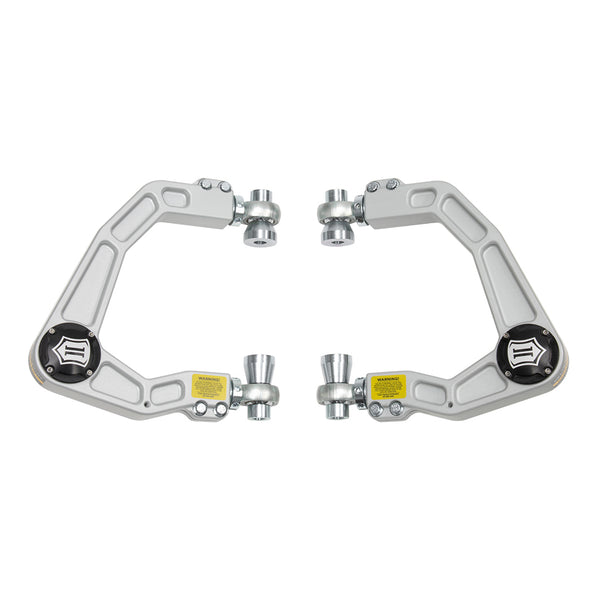

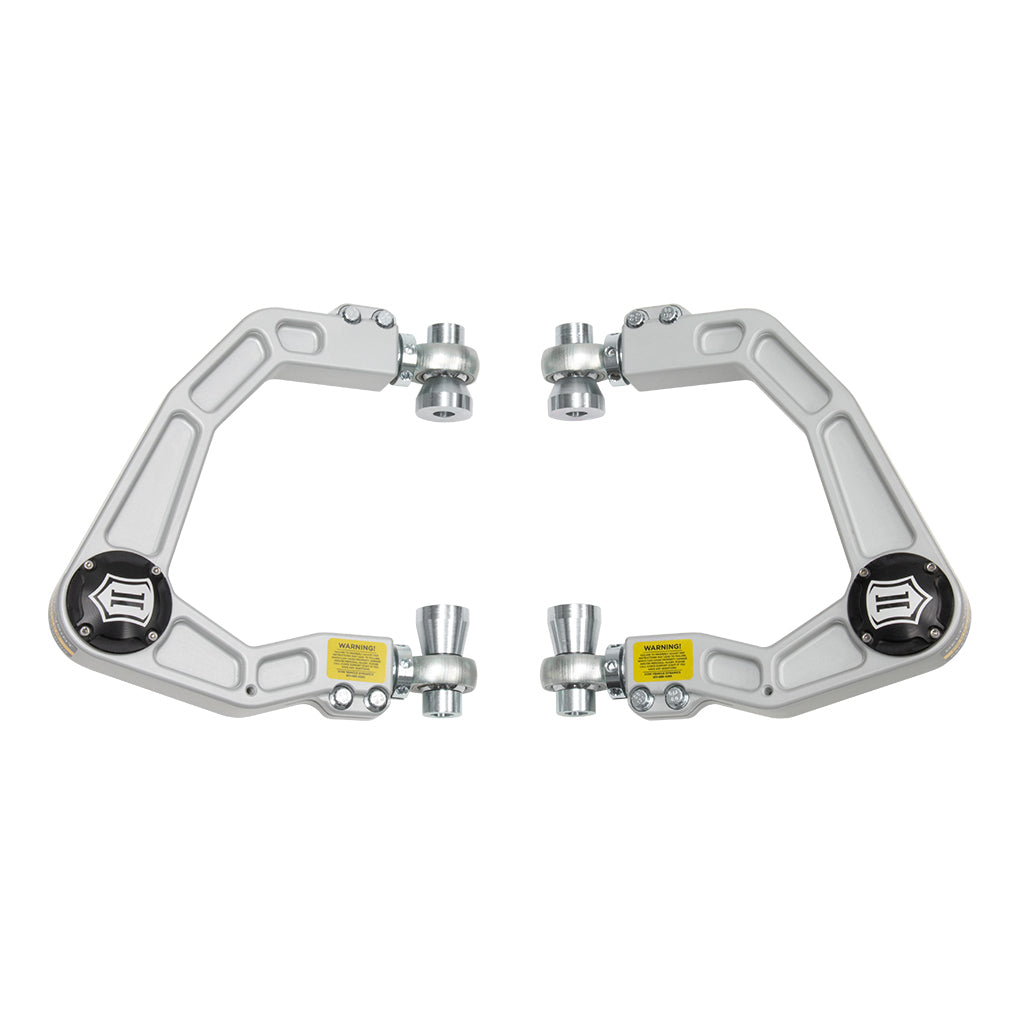

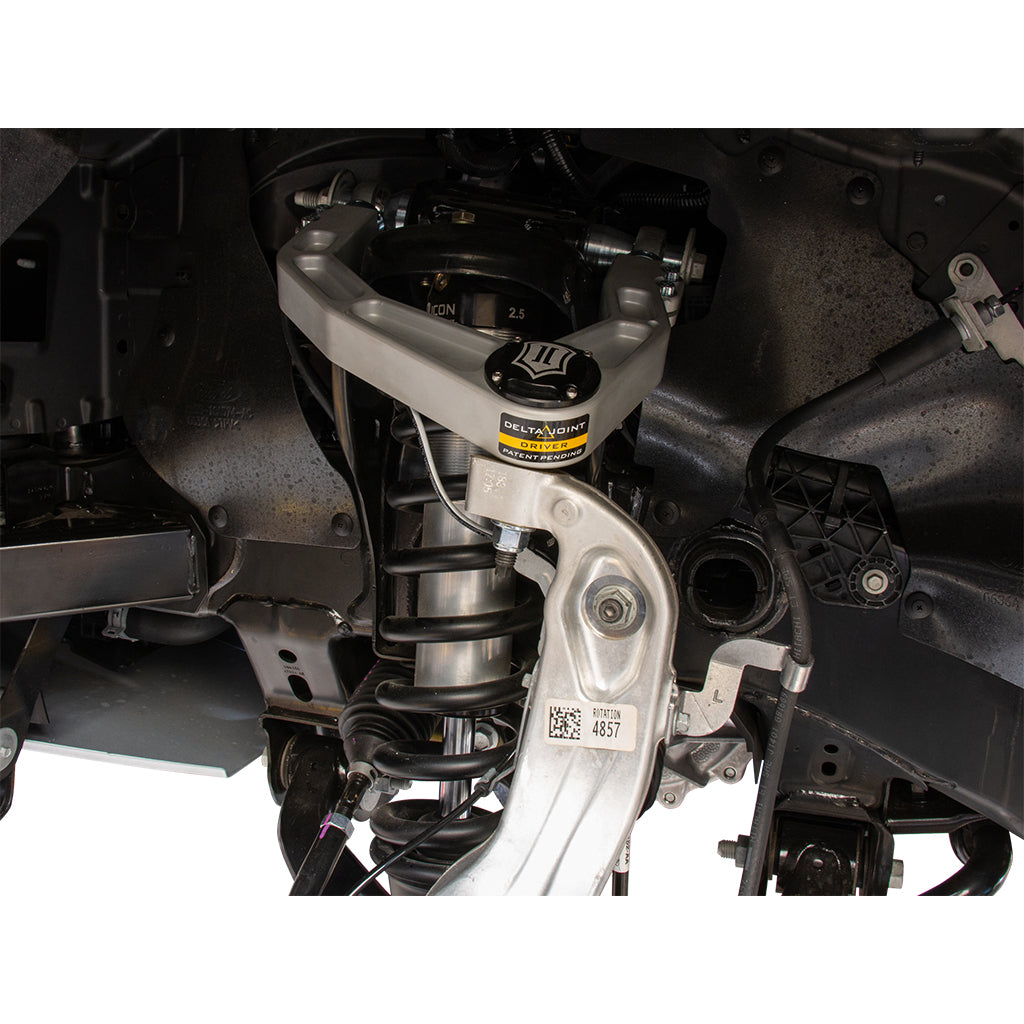

This ICON billet aluminum upper control arm kit is designed to improve the overall performance of the 2019-2021 Ford Ranger with corrected front-end geometry, adjustable camber and caster, and improved suspension component clearance. These are constructed of CNC machined 6061 billet aluminum merging light weight with high strength properties. Replacing the OE ball joint with the ICON Delta Joint allows for full bump and droop travel of the front suspension while eliminating bind. FK Rod End 7/8" heim joints provide precise and smooth function throughout the range of travel while ICON's signature double adjuster sleeve allows for on-vehicle camber and caster adjustment. Included with all components and hardware necessary for a complete install, these billet UCAs are the perfect upgrade for the 2019-2021 Ford Ranger truck.
FEATURES
- CNC machined 6061 billet aluminum construction for light weight and exceptional strength
- Features ICON's Patented Delta Joint (U.S. Patent No. 10,731,700)
- Camber and caster adjustability allows for precise wheel alignment
- ICON double adjuster sleeves allow for on-vehicle adjustment
- Vehicle specific taper pin provides OE-like fitment
- PTFE Lined 7/8" FK Rod Ends for improved response
- Built in o-ring sealed dust cover cap
SPECIFICATIONS
- Adjustable: Yes
- Ball Joint Included: Yes
- Ball Joint Mounting Type: Press In
- Ball Joint Stud Type: Threaded
- Bushing Material: Rod End Bearing
- Bushings Included: Yes
- Control Arm Color: Silver
- Control Arm Construction: Billet
- Control Arm Material: Aluminum
- Finish: Anodized
- Grade Type: Performance
- Grease Fitting Included: yes
- Mounting Hardware Included: Yes
- Pre-Greased: No
- Service Parts: 614519 - DELTA JOINT INSTALL PRESS ADAPTER TUBE
- Suspension Grade Type: Performance
TECH NOTES
- Compatible with 2019-2021 Rangers equipped with aluminum knuckles only
- Not compatible with Ranger Raptor
