Features & Benefits

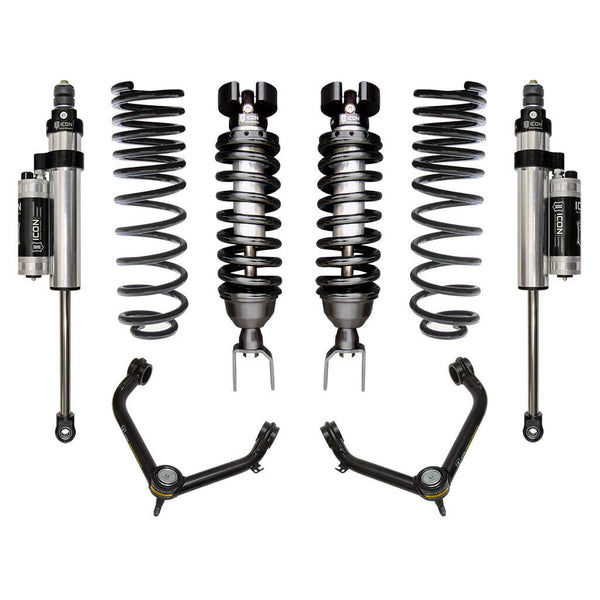

With several changes being made to the 2019 RAM 1500 platform including an all-new frame, increased chassis rigidity, and a lighter overall weight, ICON's R&D department went above and beyond to make sure the new RAM truck was properly analyzed. With these changes made by the factory, the development of new ICON rear shocks (and revised front coilover tuning) was necessary to optimize fitment and performance on this new platform.
- Adjustable coilovers from 0-1.5" of lift height allow for fitment of larger and more aggressive tires
- Patented Delta Joint (U.S. Pat. 10,731,700) combines the durability and weather resistance of a ball joint with the performance characteristics of a uniball
- 1.5" lift, dual rate rear coil springs offer incredible ride quality and increased suspension performance
- Fits 2WD & 4WD applications
- 6061 Aircraft grade aluminum CNC machined components
- Shocks are fully rebuildable and revalvable
- 100% Bolt-on system - no drilling, cutting, or welding necessary for install
- ICON 2.5 Series shocks feature vehicle specific tune for superior performance and ride quality
- Easy-to-adjust CDC Valve (Compression Damping Control) allows for end-user compression damping changes to suit all types of terrain and vehicle cargo configurations
- Corrosion resistant CAD plated coilvoer shock bodies with 7/8" shafts
- Rear 2.5 Aluminum Series piggyback shocks feature one-piece impact extruded aluminum cylinders and 7/8" shafts
- FK rod end bearings for extended longevity and minimal deflection
- ICON upper control arms improve suspension geometry for predictable handling
- OEM Wheels & Tires Fitment: Yes
- APPLICATION NOTE #55: SHOCKS ARE FULLY SERVICEABLE. COILOVER HEIGHTS INDICATED ARE FOR A STOCK EQUIPPED VEHICLE
- APPLICATION NOTE #99: AIR BAGS RECOMMENDED WITH PERFORMANCE REAR SPRINGS IF VEHICLE USED FOR TOWING
- APPLICATION NOTE #100: SPRINGS NOT RATED FOR ECO DIESEL EQUIPPED TRUCKS
- APPLICATION NOTE #105: NOT FOR VEHICLES WITH REAR FACTORY AIR RIDE
- Ships in Multiple Boxes
- TECH NOTE: 2019-Up Ram Rebel lift height range 0-.75" over stock (front) and 1" over stock (rear)
- TECH NOTE: Not compatible with 2019-2022 Ram 1500 Classic models
- TECH NOTE: Not compatible with 2021-UP Ram 1500 TRX trim
-
