Features & Benefits

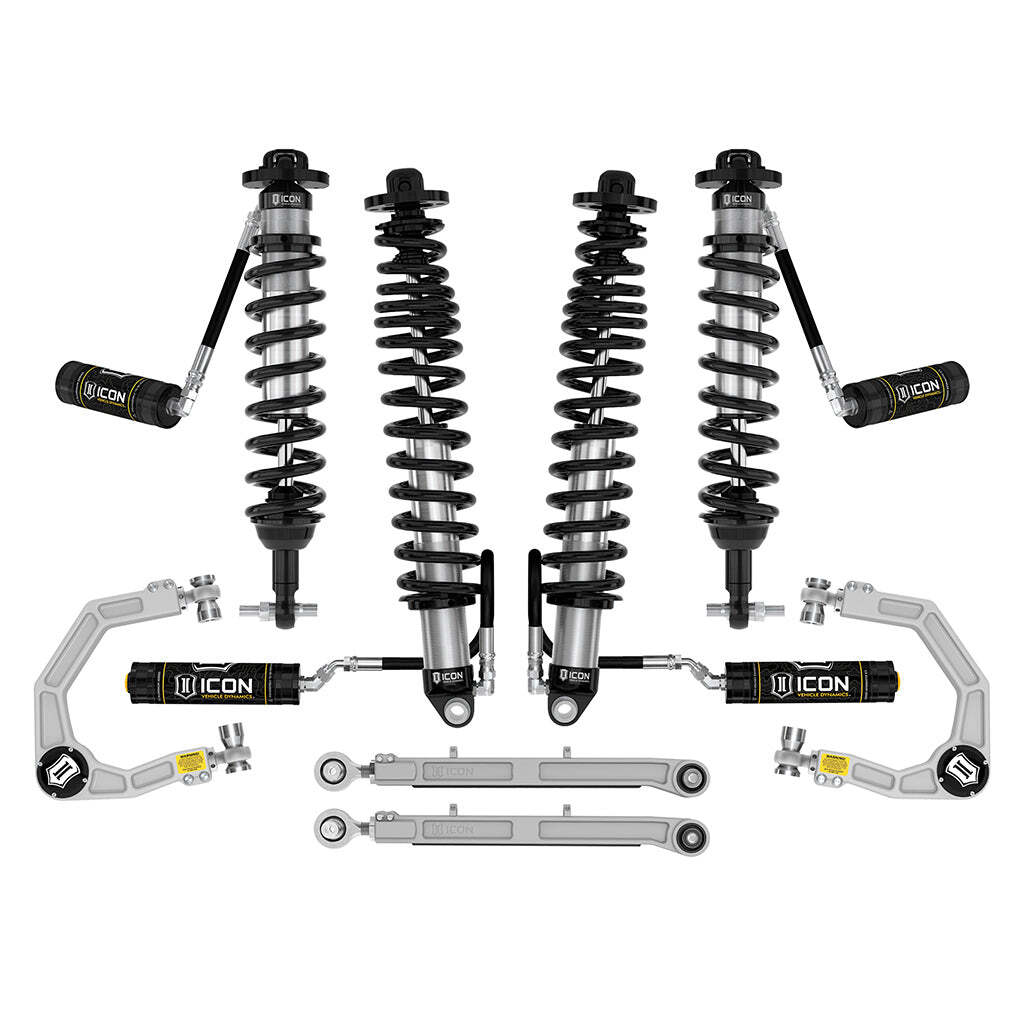

The ICON Vehicle Dynamics Stage 5 Suspension System for the 2021-2023 Ford Bronco features our precision-manufactured, custom valved remote reservoir coilover shocks to yield the maximum travel possible along with superior ride quality and suspension performance both on and off-road. These coilovers also allow for the adjustment of ride height to yield 3-4" of front lift and 2-3" of rear lift over stock 4-door Broncos without the Sasquatch Package. Remote reservoirs greatly increase shock oil volume and heat dissipation surface area to resist overheating and cavitation under hard use, which can lead to damper fade, ensuring sustained shock performance at speed through rough terrain.
- Improved suspension performance and ride quality over stock
- Up to 11.5" front / 14" rear wheel travel with 35" tire fitment
- Vehicle specific tuned remote reservoir front and rear coilover shocks for superior damping and vehicle control, even under hard use
- Adjustable coilovers yield up to 3-4" of front lift height and 2-3" of rear lift height over stock 4-door Broncos without the Sasquatch package
- PTFE lined spherical bearings and application specific mounting hardware
- 6061 Aircraft grade aluminum CNC machined components
- Corrosion resistant CAD plated coilover shock bodies with 7/8" diameter shafts
- ICON engineered coil springs featuring a unique triple rate rear coil design
- High strength alloy CNC machined lower bar pins
- Billet aluminum UCAs for added strength, durability, and on-vehicle caster/camber adjustment for optimum drivability
- UCAs feature the patented (U.S. Pat. 10,731,700) Delta Joint Pro with 90 degrees of total articulation.

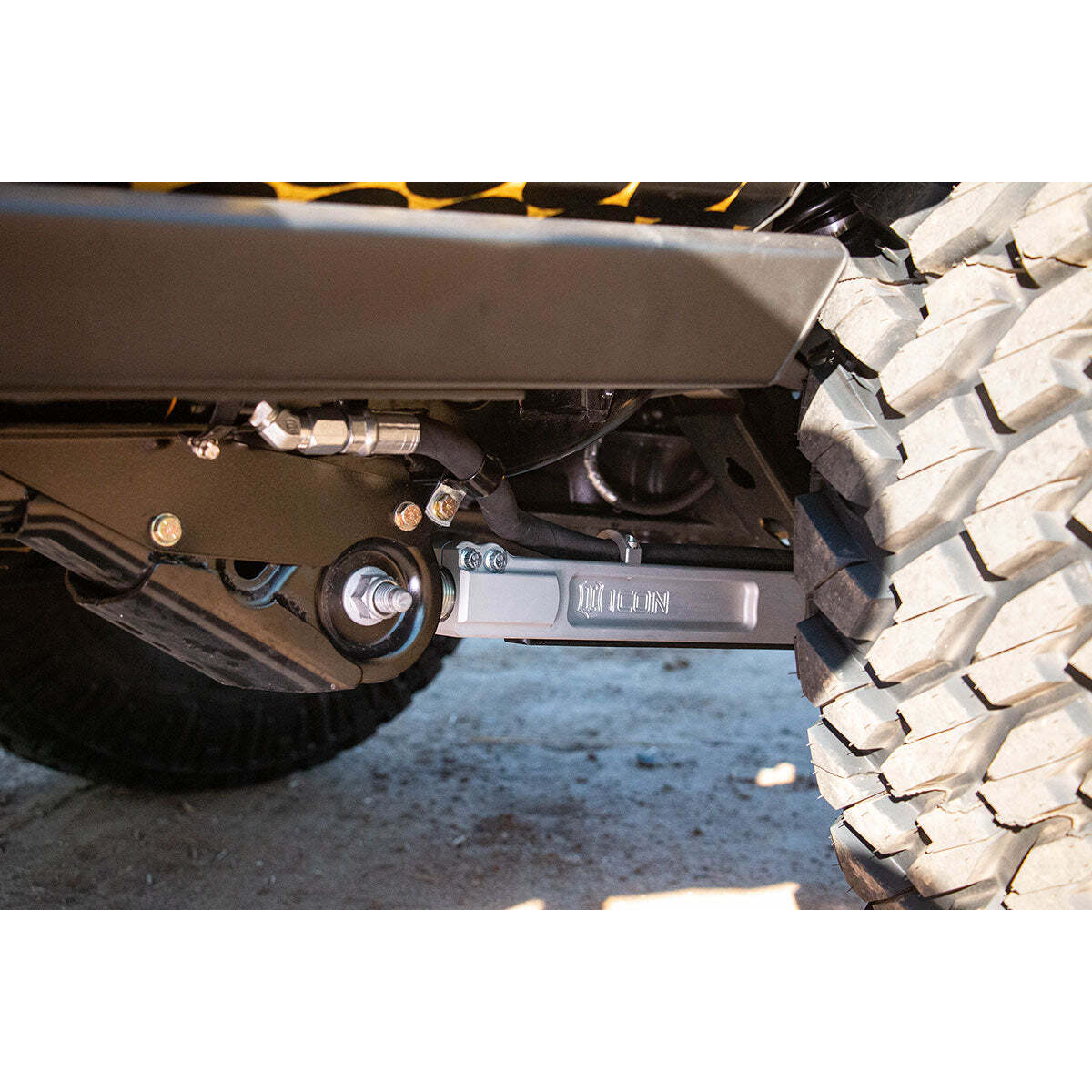

- Billet rear lower links improve rear end articulation and allow for on-vehicle pinion angle adjustment
- 100% Bolt-on system - no drilling, cutting, or welding necessary for install
- OEM Wheels & Tires Fitment: No
- APPLICATION NOTE #55: SHOCKS ARE FULLY SERVICEABLE. LIFT HEIGHTS INDICATED ARE FOR A STOCK EQUIPPED VEHICLE.
- APPLICATION NOTE #66: 2 DOOR MODELS WILL SIT TALLER THAN 4 DOOR MODELS.
- APPLICATION NOTE #132: WHEN RUNNING 37" TIRES USE UP TRAVEL LIMITERS PART #611075 IN THE FRONT
- APPLICATION NOTE #133: WHEN RUNNING 37" TIRES USE UP TRAVEL LIMITERS PART #611074 FOR THE REAR
- APPLICATION NOTE #135: LIFT HEIGHTS & APP NOTES BASED NON-SASQUATCH EQUIPPED VEHICLES
- APPLICATION NOTE #138: RECOMMEND HIGH CLEARANCE CRASH BARS PART #42000 ON NON-SASQUATCH EQUIPPED VEHICLES WHEN RUNNING 35" TIRES
- APPLICATION NOTE #139: WHEN RUNNING 37" TIRES CRASH BAR REMOVAL MAY BE REQUIRED BUT IS NOT RECOMMENDED
- TECH NOTE: Fitment testing done with ICON & OE steering components. Due to tight clearances to front coilovers, certain aftermarket steering components may not be compatible.
- TECH NOTE: Triple rate rear coils are optimized for improved suspension performance and ride quality for a near-stock weight Bronco. Their softer initial spring rates will net lower than advertised ride heights as weight is added to the rear of the vehicle. For heavier equipped Broncos, consider part number K40005X.
- TECH NOTE: Not compatible with Bronco Raptor
-
