Features & Benefits

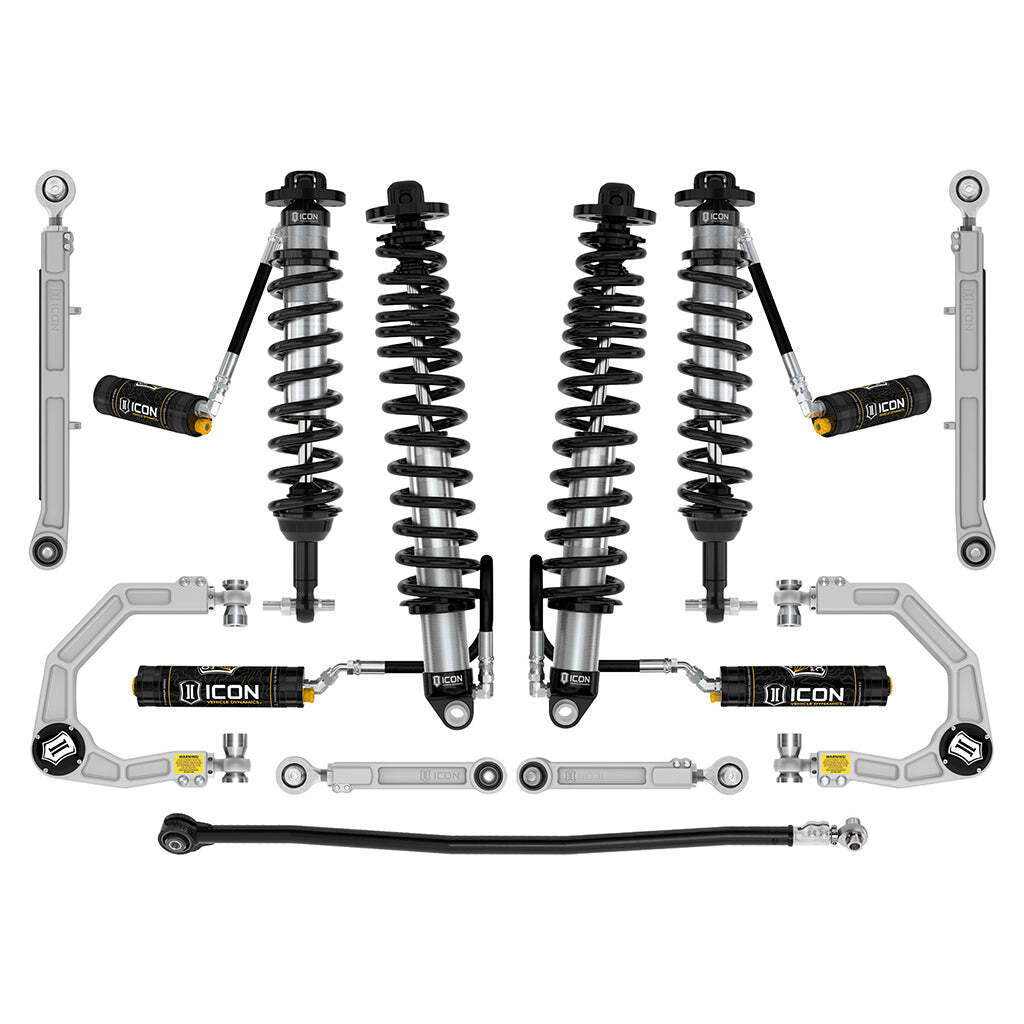

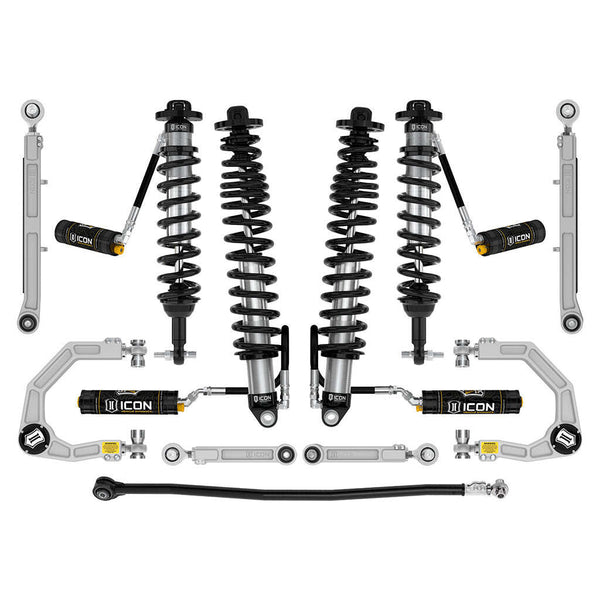

To accommodate the increased travel and lift height afforded by the ICON Coilovers, this Stage 7 kit comes with Billet Aluminum Upper Control Arms which provide on-vehicle caster and camber adjustability and feature our patented Delta Joint PRO, which allows for up to 90-degrees freedom of movement. Stage 7 also includes the complete billet rear link kit including upper links and ICON's tubular Adjustable Rear Track Bar. The added upper links have been designed for clearance from the fuel tank during maximum articulation and feature greaseless bushings, massive FK rod ends, and on-vehicle adjustability just like the lower links. The Adjustable Track Bar also features our dual-durometer greaseless bushing and an FK Rod End, as well as on-vehicle adjustability for perfectly aligning the Bronco's rear axle for any lift height.
- Improved suspension performance and ride quality over stock
- Up to 11.5" front / 14" rear wheel travel with 35" tire fitment
- Vehicle specific tuned remote reservoir front and rear coilover shocks for superior damping and vehicle control, even under hard use
- Coilovers equipped with CDC Valves for 10 settings of compression damping adjustment, from soft to hard
- Adjustable coilovers yield up to 3-4" of front lift height and 2-3" of rear lift height over stock 4-door Broncos without the Sasquatch package
- PTFE lined spherical bearings and application specific mounting hardware
- 6061 Aircraft grade aluminum CNC machined components
- Corrosion resistant CAD plated coilover shock bodies with 7/8" diameter shafts
- ICON engineered coil springs featuring a unique triple rate rear coil design
- High strength alloy CNC machined lower bar pins
- Billet aluminum UCAs for added strength, durability, and on-vehicle caster/camber adjustment for optimum drivability
- UCAs feature the patented (U.S. Pat. 10,731,700) Delta Joint Pro with 90 degrees of total articulation.

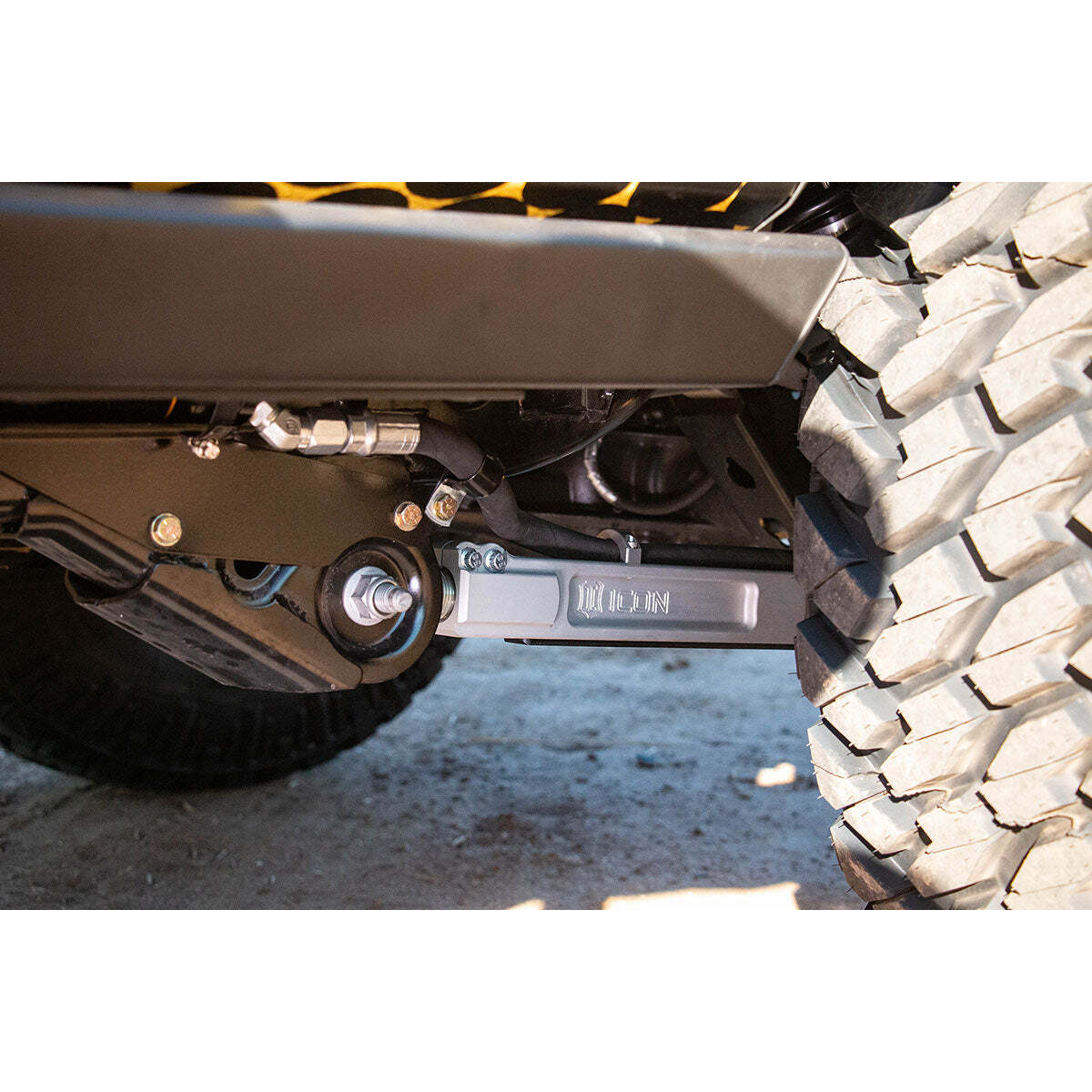

- Billet rear lower links improve rear end articulation and allow for on-vehicle pinion angle adjustment

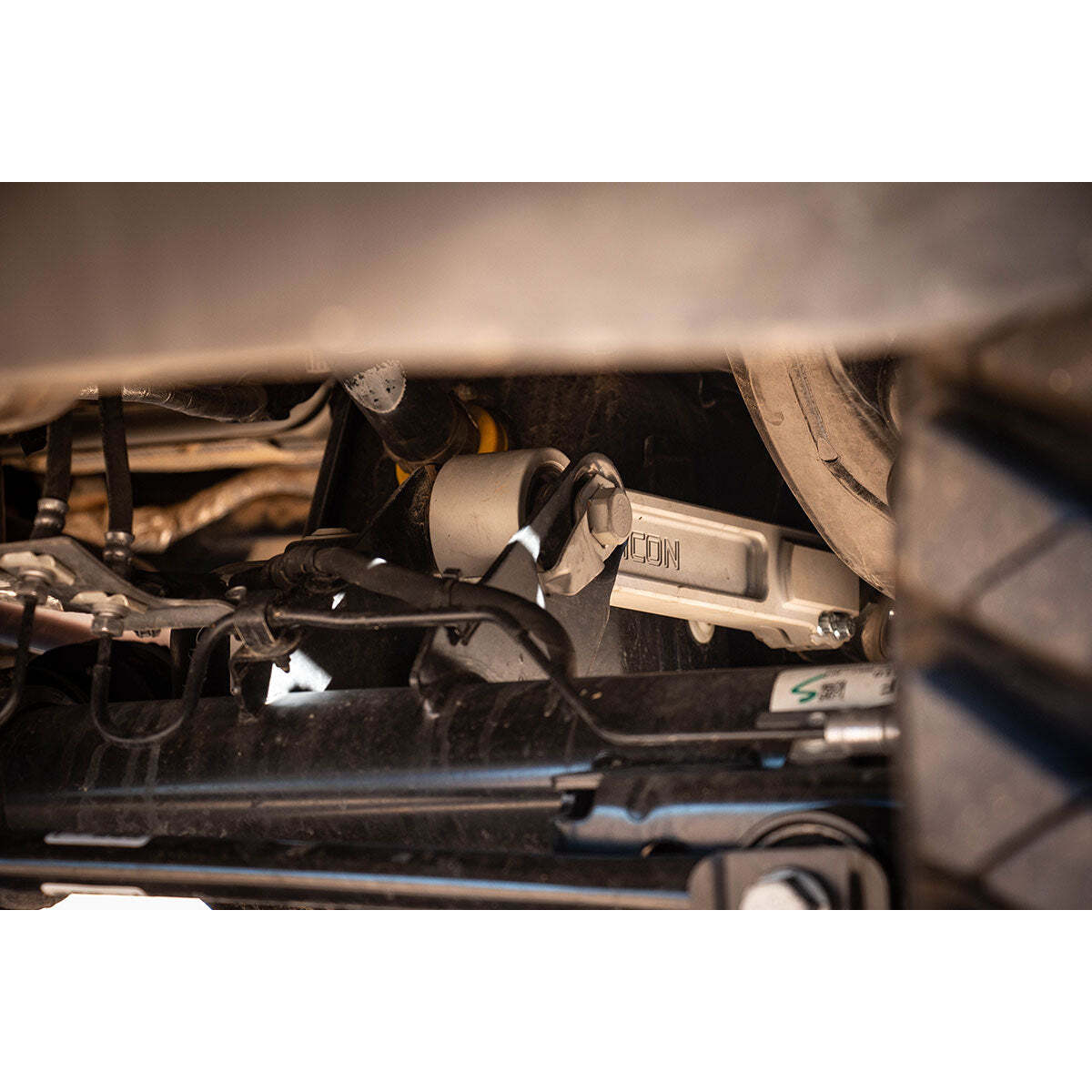

- Adjustable billet rear upper links improve fuel tank clearance under max articulation and help further free up suspension bind
- Adjustable rear track bar helps to free up bind during rear suspension travel and articulation and offers on-vehicle rear end alignment
- 100% Bolt-on system - no drilling, cutting, or welding necessary for install
- OEM Wheels & Tires Fitment: No
- APPLICATION NOTE #55: SHOCKS ARE FULLY SERVICEABLE. LIFT HEIGHTS INDICATED ARE FOR A STOCK EQUIPPED VEHICLE.
- APPLICATION NOTE #66: 2 DOOR MODELS WILL SIT TALLER THAN 4 DOOR MODELS.
- APPLICATION NOTE #132: WHEN RUNNING 37" TIRES USE UP TRAVEL LIMITERS PART #611075 IN THE FRONT
- APPLICATION NOTE #133: WHEN RUNNING 37" TIRES USE UP TRAVEL LIMITERS PART #611074 FOR THE REAR
- APPLICATION NOTE #135: LIFT HEIGHTS & APP NOTES BASED NON-SASQUATCH EQUIPPED VEHICLES
- APPLICATION NOTE #138: RECOMMEND HIGH CLEARANCE CRASH BARS PART #42000 ON NON-SASQUATCH EQUIPPED VEHICLES WHEN RUNNING 35" TIRES
- APPLICATION NOTE #139: WHEN RUNNING 37" TIRES CRASH BAR REMOVAL MAY BE REQUIRED BUT IS NOT RECOMMENDED
- TECH NOTE: Fitment testing done with ICON & OE steering components. Due to tight clearances to front coilovers, certain aftermarket steering components may not be compatible.
- TECH NOTE: Triple rate rear coils are optimized for improved suspension performance and ride quality for a near-stock weight Bronco. Their softer initial spring rates will net lower than advertised ride heights as weight is added to the rear of the vehicle. For heavier equipped Broncos, consider part number K40007X.
- TECH NOTE: Not compatible with Bronco Raptor
-
