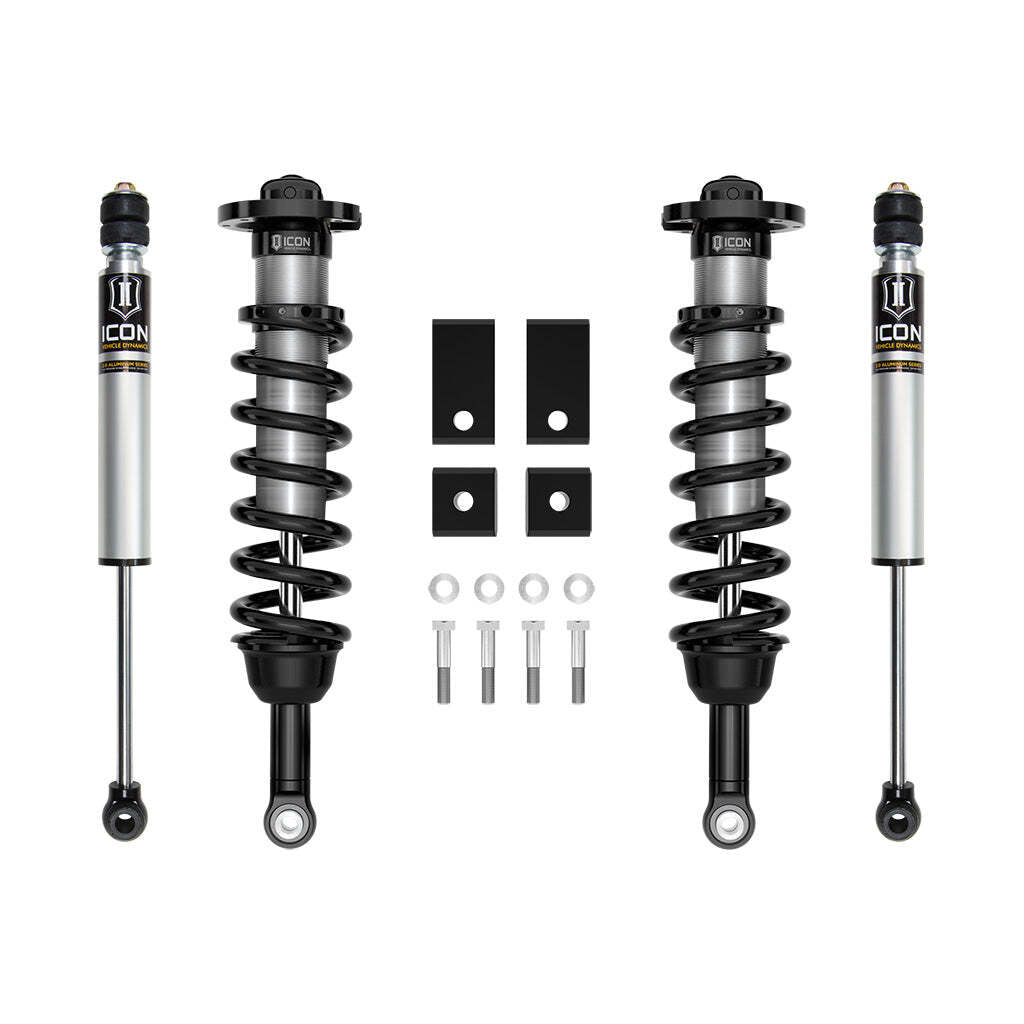

ICON K53193 Stage 3 2.5 Suspension System Toyota Tundra 1.25-2.25" Lift

This Stage 3 system features the 2022-2023 Toyota Tundra VS 2.5 Series internal reservoir front coilovers. These adjustable coilovers allow up to 1.25-2.25" of lift height adjustability over stock when using the OE upper control arms, allowing the use of larger, more aggressive wheel and tire combinations. ICON's Vehicle-specific shock length and valving along with the larger 2.5" shock body and increased piston area over stock components yield the maximum travel possible (up to 40% increase over stock) along with superior ride quality and suspension performance both on- and off-road.

• Vehicle specific design for 2022-2023 Toyota Tundra
• 2.5 Series front coilovers with internal reservoirs for superior damping and vehicle control
• Adjustable front ride heights from 1.25-2.25" of front lift over stock when used with stock UCAs
• Included sway bar drop brackets reduce bind in OE sway bar links
• Allows for up to 40% increase in front wheel travel over stock without overstressing OE components
• 2.0 Aluminum Series rear shocks provide balanced tune with coilovers and increased performance
• All ICON shock absorbers are fully rebuildable and re-tunable
• 100% Bolt-on system - no drilling, cutting, or welding necessary for install

• OEM Wheels & Tires Fitment: Yes
• APPLICATION NOTE #55: SHOCKS ARE FULLY SERVICEABLE. LIFT HEIGHTS INDICATED ARE FOR A STOCK EQUIPPED VEHICLE.
• APPLICATION NOTE #85: ADVERTISED LIFT HEIGHT RANGES ARE FOR A STOCK EQUIPPED VEHICLE. INCREASING WEIGHT OF VEHICLE DUE TO ACCESSORIES WILL ALTER LIFT RANGE.
• APPLICATION NOTE #142: NOT COMPATIBLE WITH TUNDRAS EQUIPPED WITH LOAD-LEVELING REAR HEIGHT CONTROL AIR SUSPENSION.
• APPLICATION NOTE #148: ICON DOES NOT RECOMMEND LIFTING ABOVE 2.25" OF LIFT WITHOUT AN ICON UPPER CONTROL ARM, FAILURE TO DO SO CAN RESULT IN IMPROPER WHEEL ALIGNMENT AND CAUSE DAMAGE TO FRONT AXLES ON 4WD MODELS
• APPLICATION NOTE #149: FOR 4WD MODELS WITHOUT TRD OFF-ROAD PACKAGE ICON RECOMMENDS USING ICON DIFF DROP (PART# 55156) OR USING TOYOTA TRD AXLES (PART# 434200C020 DRIVER / 434100C020 PASS). FAILURE TO DO SO COULD RESULT IN FRONT AXLE DAMAGE. NOT REQUIRED FOR TRD PRO.
• TECH NOTE: If upgrading a Tundra equipped with Adaptive Variable Suspension (AVS) all other vehicle systems remain functional
• TECH NOTE: Most Tundra sub-models equipped with i-Force gasoline engine will have front lift height range of 1.25-2.25" over stock
• TECH NOTE: Most Tundra sub-models equipped with i-Force MAX hybrid engine will have front lift height range of .75-2.25" over stock
• TECH NOTE: Tundra TRD Pro will have front lift height range of 0-1.75" over stock
• TECH NOTE: Tundra SR5 equipped with TRD Sport Suspension package will have lift height range of 2.25-3.25" over stock
• TECH NOTE: Included rear shocks are compatible with 0-1.5" of rear lift over stock on models equipped with rear coil springs without TRD suspension package. Rear shocks are compatible with 0-1" of rear lift over stock on models equipped with rear coil springs with TRD suspension package and TRD Pro.
