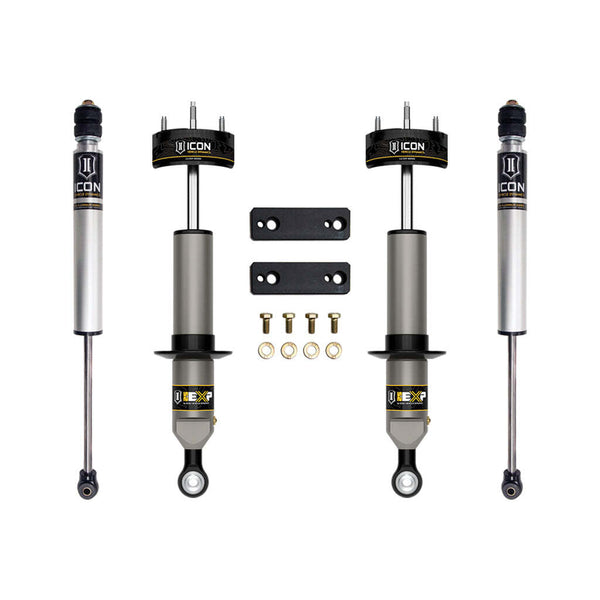

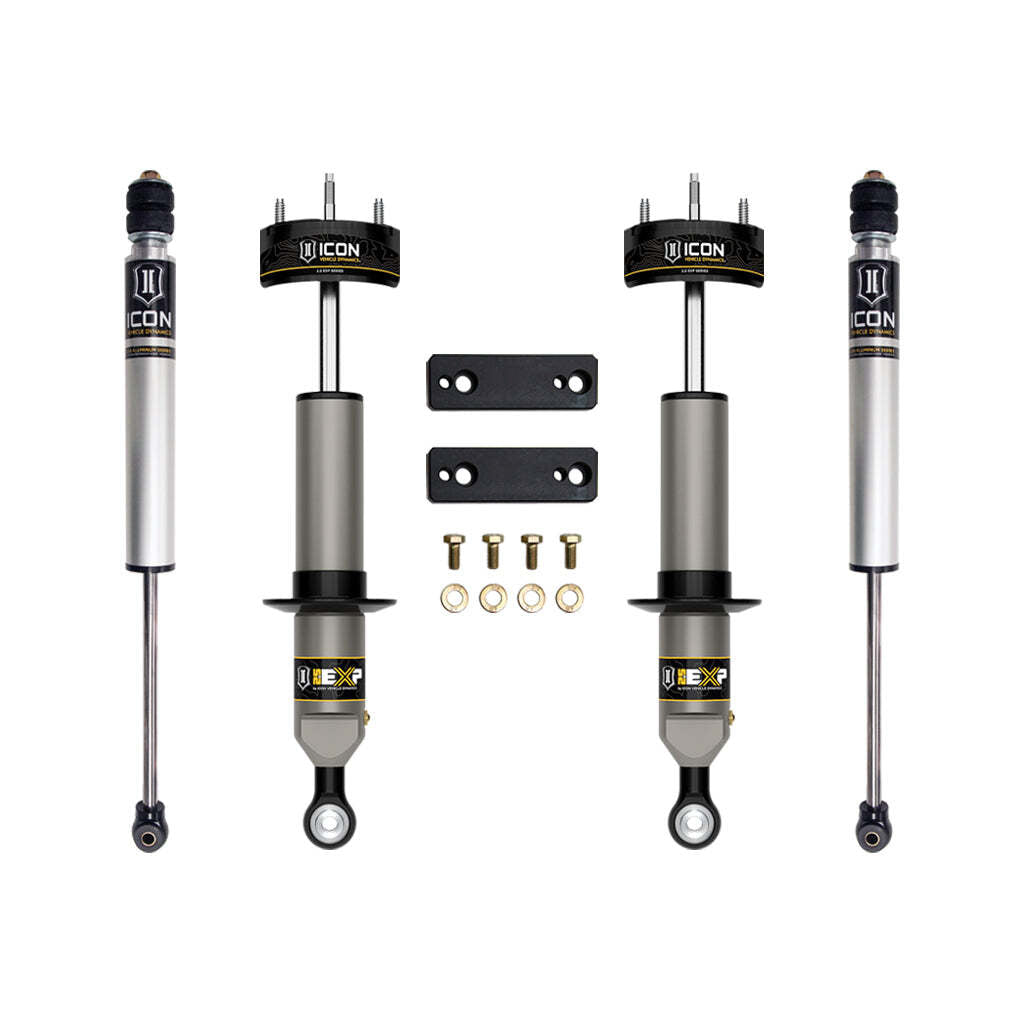

ICON K53220 Stage 1 EXP Suspension System Toyota Tacoma 0-2" Lift

The ICON Vehicle Dynamics Stage 1 EXP suspension system for the 2005-2022 Toyota Tacoma represents our entry level performance suspension system providing improved on- and off-road performance as well as front-end lift and leveling for a proper stance and fitment of up to 33" tires. This system features the innovative new 2.5 EXP series coilover shocks along with our proven 2.0 Aluminum Series nitrogen charged monotube shocks for the rear.

• Vehicle specific design for 2005-2022 Toyota Tacoma
• 2.5 EXP Series front shocks with internal reservoirs utilize factory coil and coil hardware
• Adjustable front ride heights from 0-2" of front lift over stock with the use of snap ring
• Included sway bar relocation brackets reduce ensure sway bar clearance from EXP coilovers
• Allows for full wheel travel without overstressing OE components
• 2.0 Aluminum Series rear shocks provide balanced tune with coilovers and increased performance
• All ICON shock absorbers are fully rebuildable and re-tunable

• OEM Wheels & Tires Fitment: Yes
• APPLICATION NOTE #55: SHOCKS ARE FULLY SERVICEABLE. LIFT HEIGHTS INDICATED ARE FOR A STOCK EQUIPPED VEHICLE.
• APPLICATION NOTE #110: TRIMMING REQUIRED FOR RECOMMENDED TIRE SIZE
• APPLICATION NOTE #144: NOT COMPATIBLE WITH TRD PRO
• TECH NOTE: Not compatible with 2005-2015 rear wheel drive Tacomas with 5 wheel lug studs
• TECH NOTE: Not compatible with 2021-2022 Tacoma Trail
• TECH NOTE: Included rear shocks are compatible with 0-1.5" of rear lift over stock
