ICON K63156R Stage 6 Suspension System w/Radius Arm Ford F250/F350 4-5.5" Lift

Designed to provide a height-adjustable option to the extremely popular ICON Vehicle Dynamics 4.5" Ford Super Duty Suspension Systems, these coilover conversions provide excellent on-road ride quality and off-road performance while at the same time allowing for end-user ride height adjustability.

• Bolt-in system fits in OE coil bucket location
• Corrosion resistant anodized aluminum shock bodies with 7/8" shafts (2.5 Aluminum Series shocks)
• Eibach coil springs guaranteed for life against sagging or breakage
• FK Rod End bearings for extended longevity and minimal deflection
• Ride height adjustable coilovers provide 4-5.5" or 4.75-6.25" of lift, depending on year model of truck
• Increased wheel travel and ride quality over stock
• Decreased body roll and improved on and off-road ride dynamics
• Vehicle-specific shock valving provides unparalleled ride quality and control
• Shocks are fully rebuildable and revalveable
• Coilover conversion allows for addition of secondary shock
• Corrosion resistant CAD plated coilover shock body with 7/8" shaft

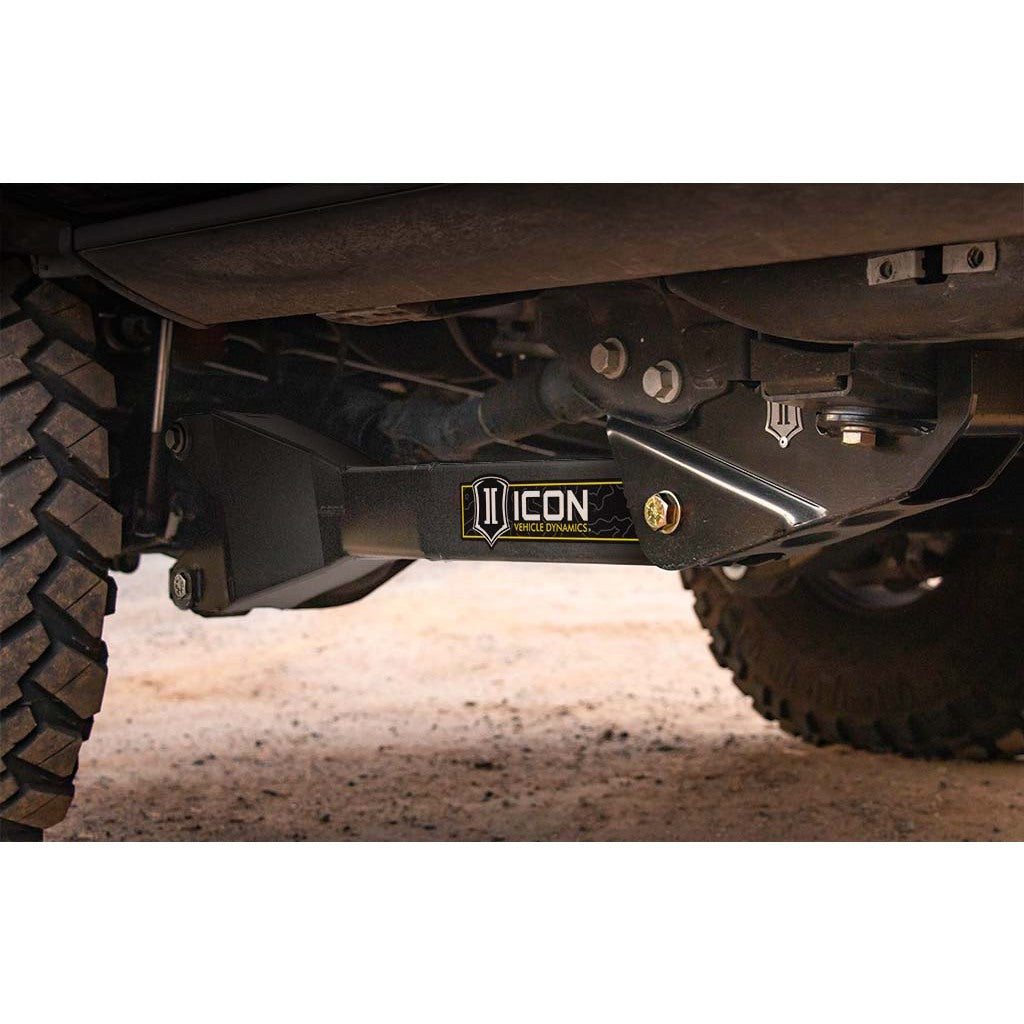

• Fabricated radius arms offer on vehicle caster adjustment, increased strength, and improved tire clearance at steering lock

• OEM Wheels & Tires Fitment: Yes
• APPLICATION NOTE #6: SPRINGS ARE RATED FOR DIESEL ENGINES ONLY
• APPLICATION NOTE #8: THIS SYSTEM MAY REQUIRE A CARRIER BEARING DROP BRACKET KIT (33700)
• APPLICATION NOTE #55: SHOCKS ARE FULLY SERVICEABLE. COILOVER HEIGHTS INDICATED ARE FOR A STOCK EQUIPPED VEHICLE
• APPLICATION NOTE #88: REMOVAL OF THE COIL CENTERING CUP IN FACTORY COIL BUCKET REQUIRED FOR INSTALLATION.
• TECH NOTE: 2017-2019 Super Duty models will have front lift height range of 4-5.5 over stock
• TECH NOTE: 2020-2022 Super Duty models without Tremor package will have front lift height range of 4.75-6.25" over stock
• TECH NOTE: 2020-2022 Super Duty models equipped with Tremor package will have front lift height range of 3.75-5.25" over stock
• TECH NOTE: Brake line kit (Part # 61110) is optional for end users who do not want to bend the factory steel lines or are looking for a braided stainless upgrade (not necessary for complete install)
• TECH NOTE: Track bar bracket part number 64039 is optional, but recommended to correct steering geometry.
• Ships in multiple boxes
