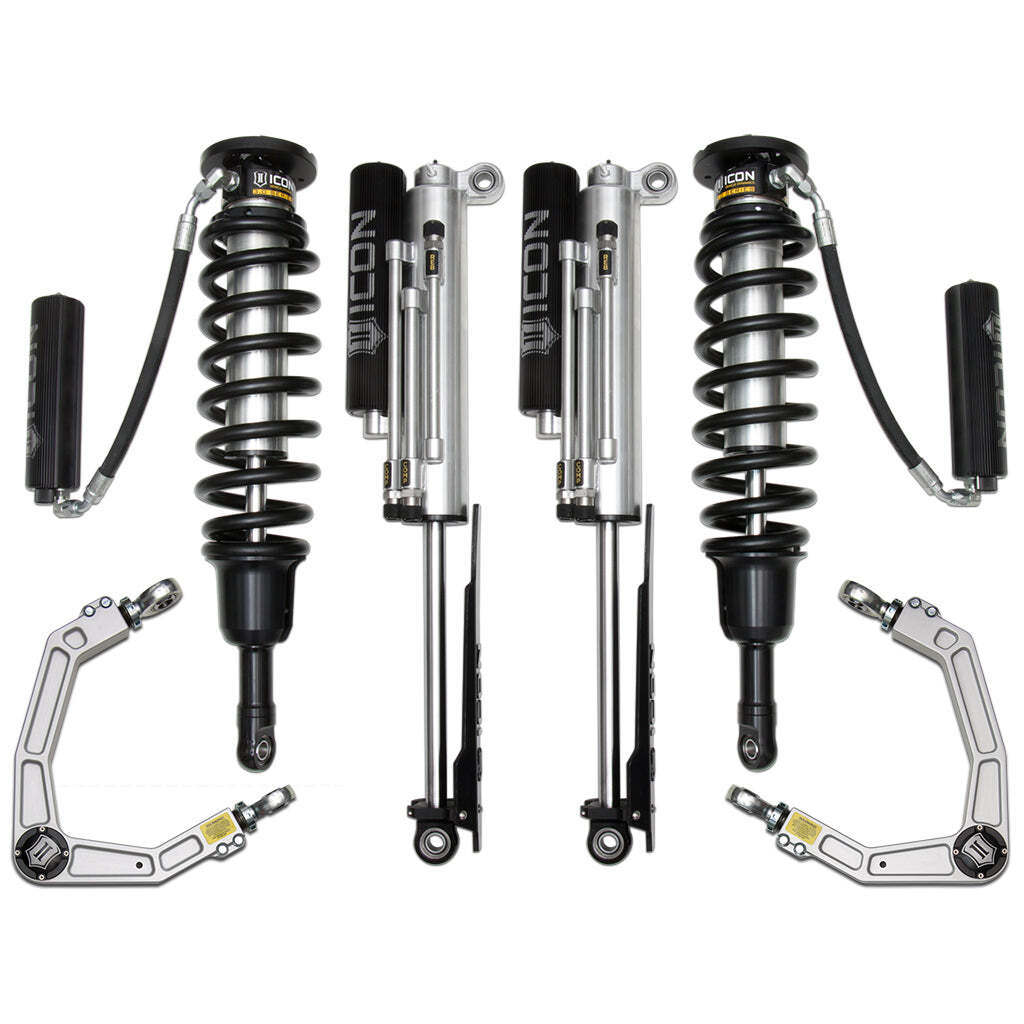

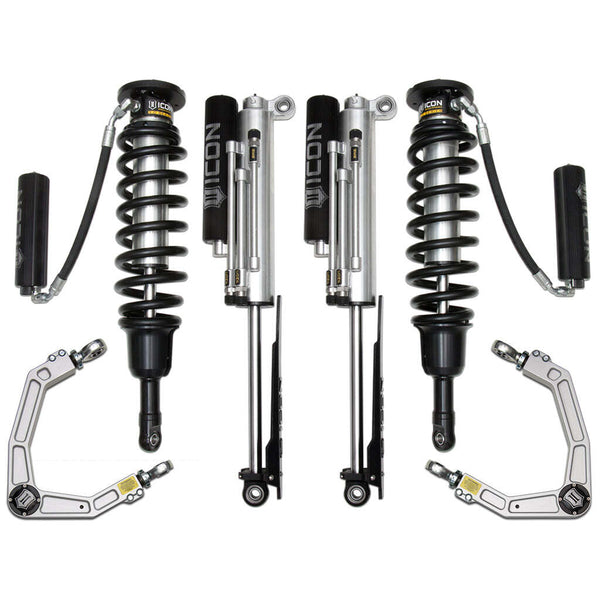

ICON K93152 Stage 2 Suspension System Ford Raptor 1-3" Lift 3.0

After hundreds of hours of R&D and thousands of miles of real world on and off-road testing, ICON engineers have developed products that provide a true performance upgrade over the factory components found on the 2017-2020 Ford F150 Raptor. The Gen. 2 Raptor is faster, lighter, and smarter than its older brother - suspension mounting locations have changed, a significant amount of weight was trimmed off of the truck, and new technology has been introduced both on the side of safety and performance. In typical ICON fashion, the new Raptor was pushed to its limits in stock trim to build a list of performance "needs and wants". After this process, the ICON engineering team began to go over the truck front to rear to identify any opportunities to overcome the limits of the OE suspension and achieve the gains laid out in the previous phases of R&D.

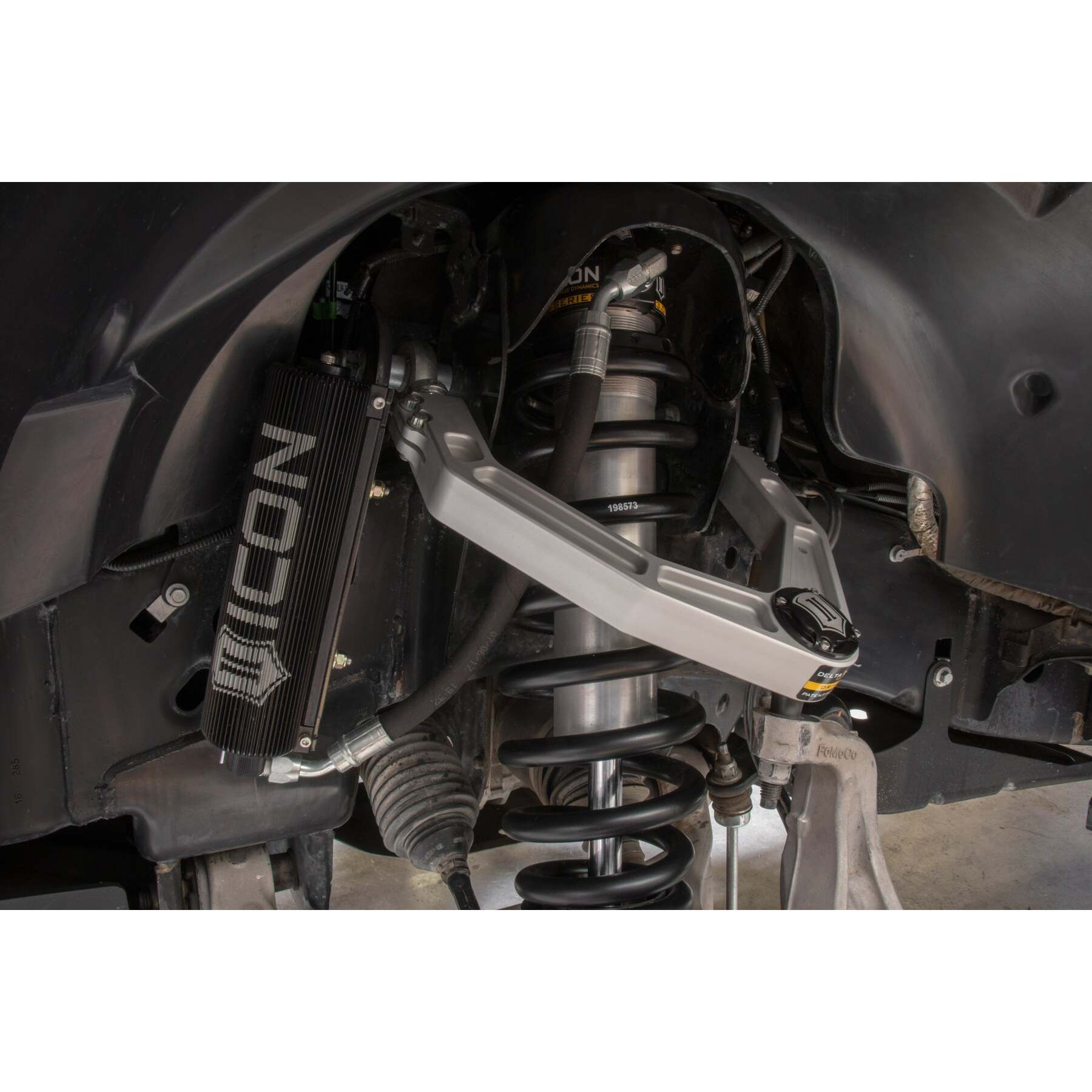

• 3.0 SERIES COILOVER SHOCK KIT
• Adjustable coilovers yield 1-3" of front lift height
• Increased wheel travel and vehicle specific valving provides unrivaled ride quality across a wide range of on and off-road use
• Superior low speed control reduces body roll and increases on-road stability
• Easy-to-adjust CDC Valve (Compression Damping Control) has 10 compression damping settings to suit all types of driving styles across varying terrain and vehicle cargo setups
• ICON's multi-stage hydraulic "Bump Zone" exponentially increases bottom-out resistance in the last 40% of compression travel
• 10" finned aluminum reservoirs provide generous oil volume and increased surface area for enhanced cooling properties and consistent damping
• Barreled coil spring design maximizes travel and provides more efficient packaging
• High quality ICON-engineered coil springs are guaranteed for life against sagging or breakage
• Heavy duty CNC machined 1" shock shafts
• FK Rod End COM12 spherical bearings ensure maximum strength and durability
• CAD plated shock body with hard anodized piston and top cap
• Fully serviceable design allows for revalves, rebuilds, and an immeasurable service life
• Bolt-in design makes for an easy install into OEM shock location

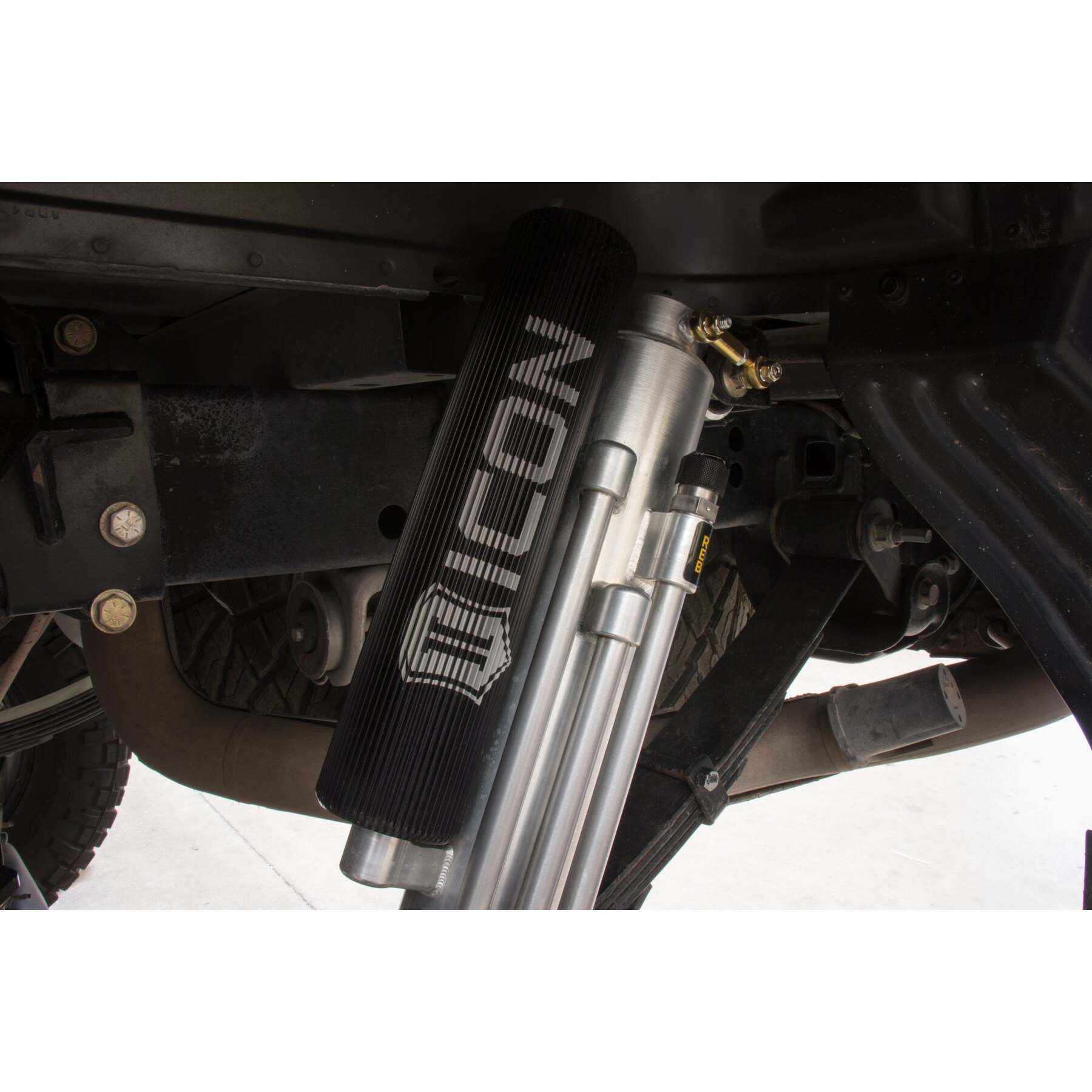

• 3.0 SERIES 3-TUBE BYPASS SHOCK KIT
• 3-tube bypass design and "Bump Zone" technology provides multiple unique zones of damping and rebound control
• 50% increase in damping ability over OE shocks for excellent performance in extreme off-road conditions
• 12" finned aluminum reservoirs provide generous oil volume and increased surface area for enhanced cooling properties and consistent damping
• Offset upper eyelet with patented ICON Anti-Wobble link for optimized shock mounting and packaging
• Easy-to-adjust detented knobs offer quick adjustability without the use of tools
• Specially engineered damped valve stops for quiet and precise operation without the loud "clicking" noise common with other brands
• Urethane shin guards help to protect the shock shaft & rod end from premature wear

• OEM Wheels & Tires Fitment: Yes
• APPLICATION NOTE #55: SHOCKS ARE FULLY SERVICEABLE. COILOVER HEIGHTS INDICATED ARE FOR A STOCK EQUIPPED VEHICLE
• TECH NOTE: 2019-2020 VEHICLES WITH FACTORY LIVE VALVE SHOCKS WILL NEED AN ICON DAMPER INTERFACE DEVICE (PN: 95199) TO ALLOW THE VEHICLE DRIVE MODES TO OPERATE CORRECTLY WITH THE OE SHOCKS REMOVED.
• Ships in multiple boxess
