Features & Benefits

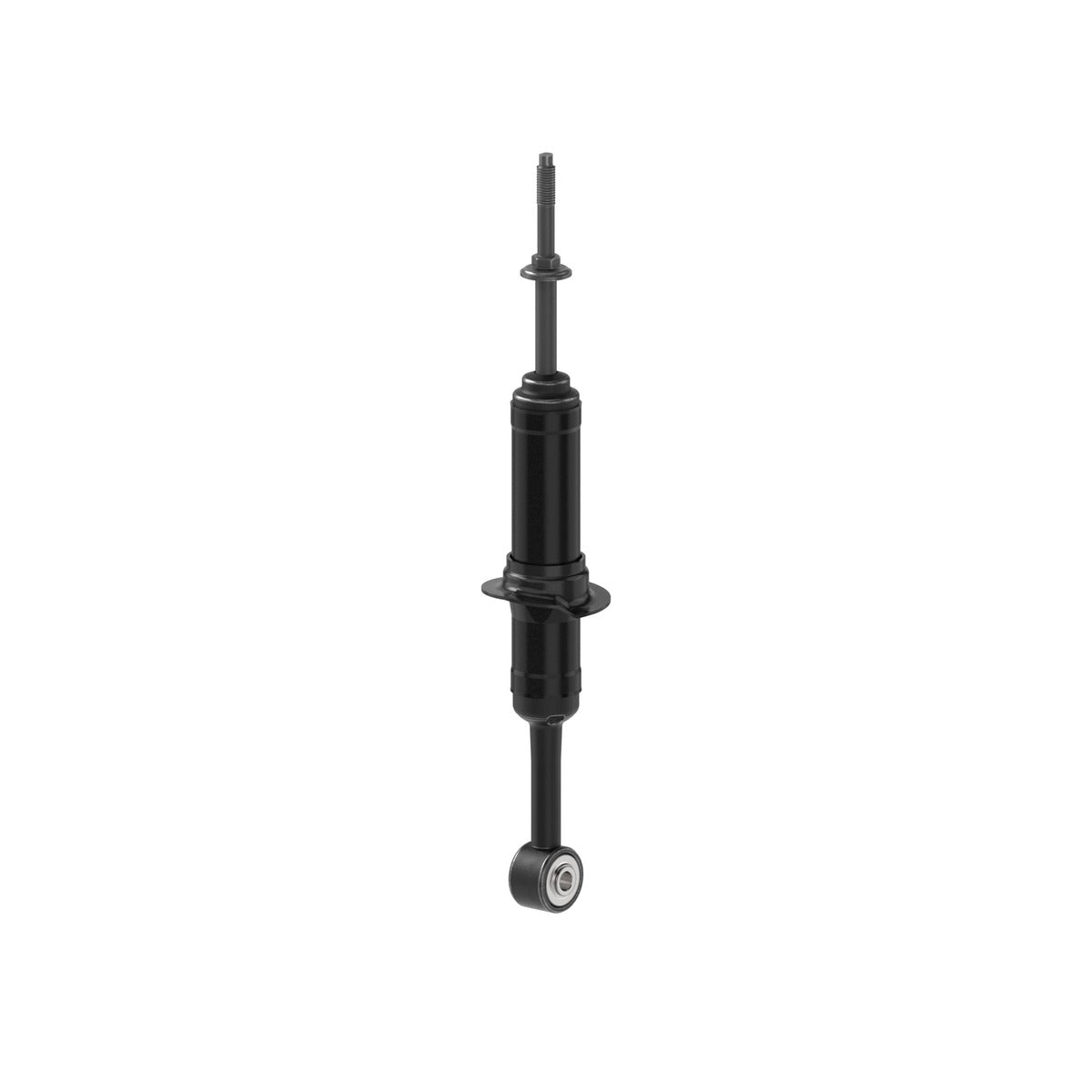

Monroe® OESpectrum® struts are designed with the right technology specific for each application. Providing an exceptional level of handling precision and control, OESpectrum struts filter out noise, vibration and harshness. Backed by Monroe's Limited Lifetime Warranty and Feel the Difference™ Guarantee, OESpectrum shocks restore a vehicle's original factory drivability and performance.
Specifications
- Active or Passive SuspensionPassive
- AdjustableNo
- Adjustable DampingNo
- Air AdjustableNo
- Air Ride SuspensionNo
- Bearing Plate IncludedNo
- Bladder Heavy Duty Crimping Rings IncludedNo
- Bladder(s) IncludedNo
- Body ColorBlack
- Body Diameter (IN) (IN)1.96
- Body Diameter (MM) (MM)50
- Body Length (IN) (IN)16.34
- Body Length (MM) (MM)415
- Body TypeSS2
- Boot IncludedNo
- Coil Over Springs IncludedNo
- Compressed Length (IN) (IN)16.96
- Compressed Length (MM) (MM)431
- Cylinder ColorBlack
- Cylinder MaterialSteel
- Dust Shield IncludedNo
- Extended Length (IN) (IN)21.83
- Extended Length (MM) (MM)554.4
- FinishPainted
- Gas ChargedYes
- Grade TypePerformance
- Grade TypeProgressive
- Includes Bump StopNo
- Internal Construction TypeSingle Tube
- Internal Rebound BumperYes
- Internal Rebound SpringNo
- Lower Mount TypeLoop Bushing and Sleeve
- Mounting Hardware IncludedYes
- New Or RemanufacturedNew
- Parts Pack(s)17111246
- Shaft Diameter (IN) (IN)0.55
- Shaft Diameter (MM) (MM)14
- Shaft MaterialChrome
- Spring IncludedNo
- Spring Isolators IncludedNo
- Spring Seat IncludedNo
- Travel Length (IN) (IN)4.87
- Travel Length (MM) (MM)123.4
- Upper Mount TypeStem
-
