• Features & Benefits

    Designed to deliver a more comfortable ride while restoring original air ride functionality, Monroe® air springs give a high level of control. Adjust the ride height and firmness by inflating to a specific height and pressure to smooth out the bumps on the road.

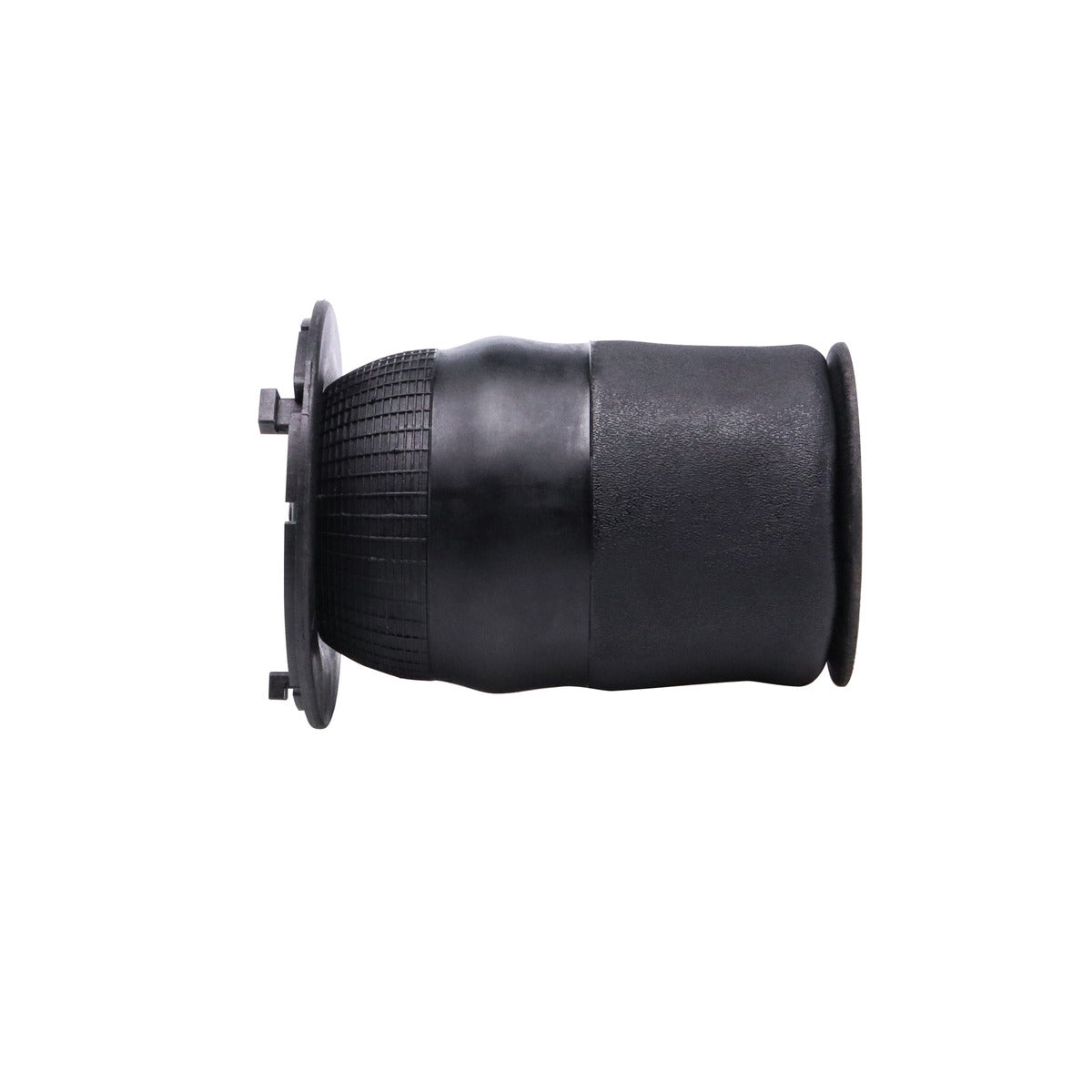

    Specifications of the 40302:

    • Air Spring Type: Sleeve Style
    • Bearing Plate Included: No
    • Bearing Plate Mounting Hole Gap: N/A
    • Bellows Color: Black
    • Bellows Material: Rubber/Fabric-CR/PA
    • Bellows Material Thickness (IN): 0.2
    • Bellows Material Thickness (MM): 5
    • Contents: Air Spring Assembly
    • Dust Shield: No
    • Grade Type: Premium
    • Lower Mount Type: BaseCup
    • Maximum Height (IN): 17.87
    • Maximum Height (MM): 454
    • Maximum Load Rating: 3580
    • Minimum Height (IN): 5.79
    • Minimum Height (MM): 147
    • Mounting Hardware Included: Yes
    • O-Ring Included: No
    • Upper Mount Type: Stud
    • Upper Mounting Isolator Included: N/A
