Features & Benefits
Designed to deliver a more comfortable ride, Monroe® air shocks and struts isolate impact-related noise, vibration and harshness. Leak and burst tested to ensure a reliable seal, they feature specially formulated air bellows for extended product life.

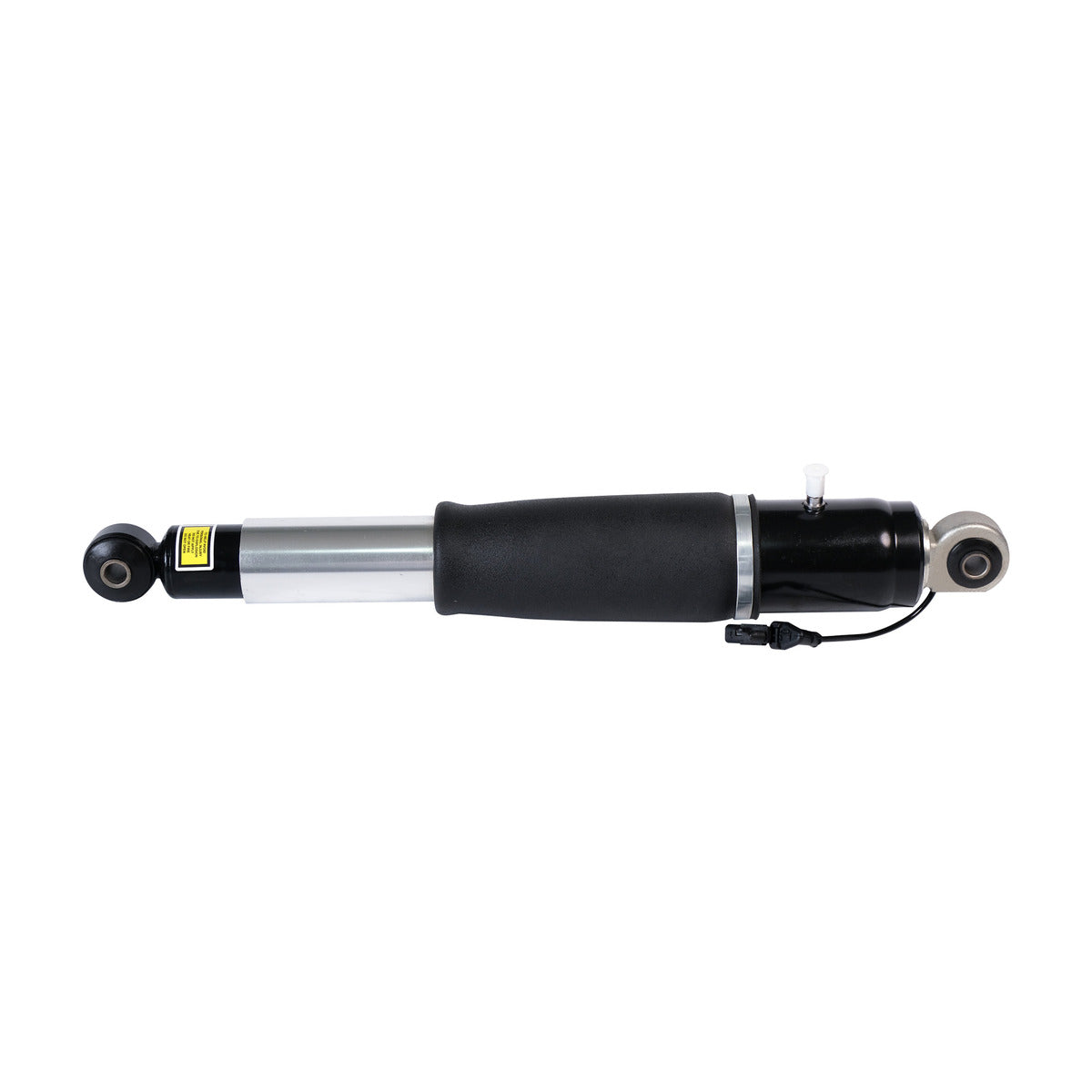

Specifications of the 40303:
- Adjustable: No
- Adjustable Damping: No
- Air Bladder: Yes
- Air Ride Suspension: Yes
- Bearing Plate Included: Yes
- Body End Measuring Point: Center Eye
- Body/housing Diameter (IN): 3.78
- Body/housing Diameter (MM): 96
- Boot Color: Black
- Boot/dust Shield Included: Yes
- Coil Over Springs Included: N/A
- Compressed Length (IN): 17.52
- Compressed Length (MM): 445
- Contents: Air Shock Assembly
- Dust Shield Material: N/A
- Extended Length (IN): 23.54
- Extended Length (MM): 598
- Gas Charged: Yes
- Grade Type: Premium
- Heavy Duty Crimping Rings: Yes
- Internal Construction Type: Twin-tube
- Internal Damper Type: Hydraulic
- Lower Mount Type: Loop/Eyelet
- Mounting Hardware Included: No
- Progressive Spring Rate: Progressive
- Protective Aluminum Can: No
- Shock Absorber Rod End Measuring Point: Shoulder of Stud
- Shock Spring Assisted: Yes
- Shock/strut Design: Twin-tube
- Spring Isolators Included: Yes
- Spring Rate Type: Progressive
- Spring Seat Included: No
- Springs Included: Yes
- Travel Length (IN): 6.02
- Travel Length (MM): 153
- Upper Mount Type: Loop/Eyelet
- Upper Mounting Isolator Included: Yes
-
