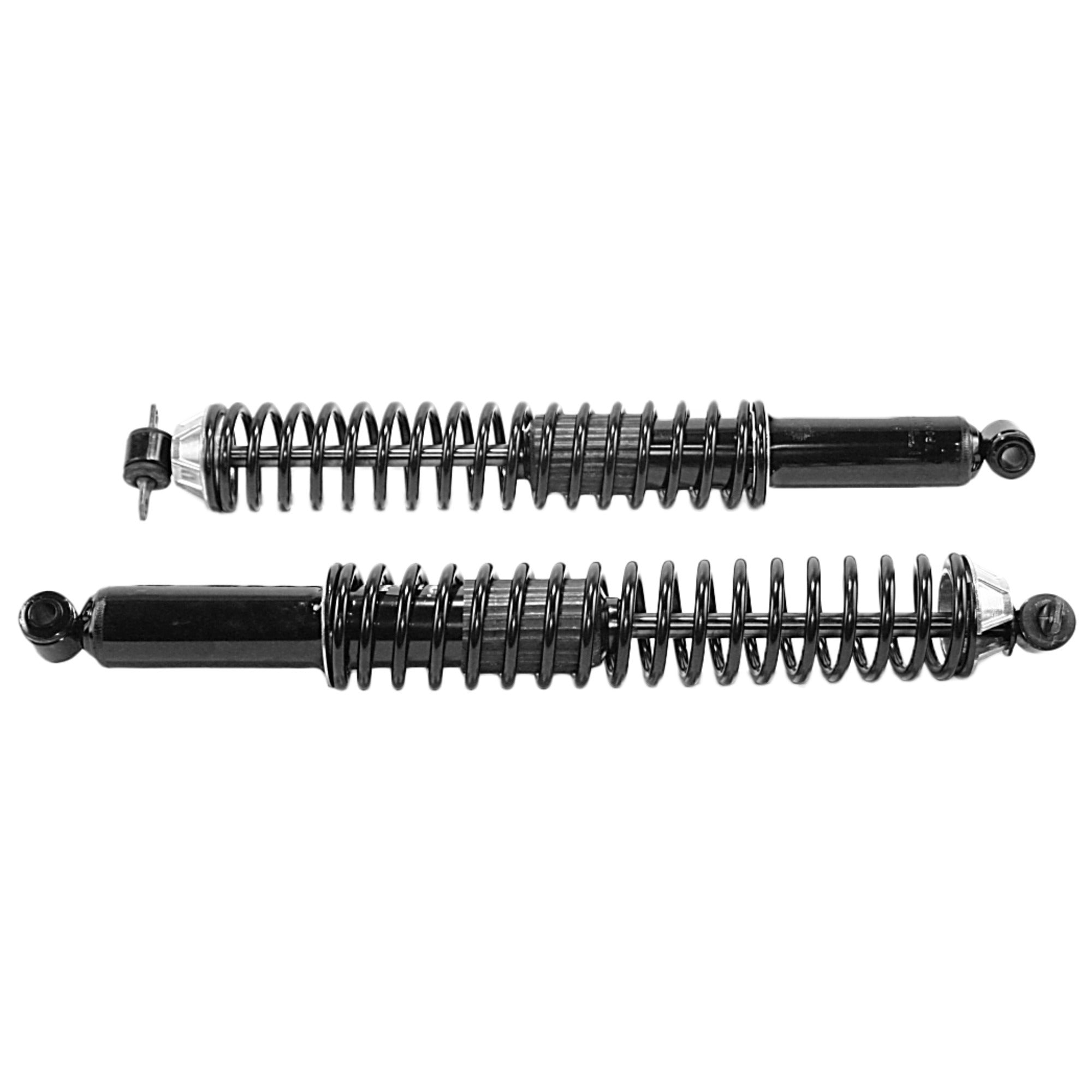

Monroe 58612 Rear Load Adjusting Shock Absorber and Coil Spring Assembly Cadillac Escalade, Chevrolet, GMC

Monroe Load Adjusting Shocks 58612 for Chevrolet Express 2500, 3500

Monroe Load Adjusting shocks 58612 are self-adjusting air-assisted shocks that automatically compensate for varying load conditions without any driver input. An internal coil spring and air chamber work together to support added weight and maintain consistent ride height, preventing rear sag and keeping the vehicle level whether it is lightly loaded for a day trip or fully packed for an extended journey.

For motorhome owners who want automatic load compensation without the complexity of a separate air management system, the Monroe Load Adjusting shock is a self-contained solution that handles it all in one unit.

Features of the Monroe Load Adjusting 58612:

• Integrated Air Chamber: Built-in air chamber provides automatic load support without a separate compressor or air management system
• Internal Coil Spring: Works alongside the air chamber to provide consistent support across a range of load conditions
• Self-Adjusting Design: Automatically compensates for load changes without driver intervention or manual adjustment
• Heavy-Duty Construction: Built to handle the load and stress demands of motorhome applications over extended mileage
• Direct-Fit Design: Engineered for specific applications for a straightforward, no-modification installation

Benefits of the Monroe Load Adjusting 58612:

• Eliminated Rear Sag: Automatically supports the added weight of a fully loaded motorhome and maintains proper ride height
• Consistent Ride Quality: Keeps the vehicle riding and handling predictably regardless of how much load is being carried
• No Manual Adjustment Required: Self-adjusting design handles load changes automatically without any driver input
• Improved Headlight Aim: Maintaining proper ride height keeps headlights aimed correctly for safer nighttime driving when loaded
• Simplified Installation: A single unit replaces the standard shock and provides air assist capability without additional plumbing or components

The Monroe Load Adjusting shock is the right choice for motorhome owners who want automatic load compensation in a self-contained, easy-to-install package that requires no ongoing adjustment or maintenance.

Specifications of the 58612

• Adjustable Compression: No
• Adjustable Rebound: No
• Adjustable Ride Height: No
• Compressed Length (IN): 14.625
• Compressed Length (IN): 14.62
• Compressed Length (MM): 371.5
• Damping Type: Oil
• Dust Shield Included: Yes
• Dust Shield Material: Metal
• Extended Length (IN): 23.75
• Extended Length (IN): 23.8
• Extended Length (MM): 603.3
• Grade Type: Premium
• Hydraulic Lockout: No
• Includes Bump Stop: No
• Internal Rebound Bumper: Yes
• Lower Mount Code: LS47
• Lower Mount Type: Loop Bushing and Sleeve Mount - 9/16" Sleeve ID X 1.5/8" Sleeve OAL
• Part Description: Shock Absorber and Coil Spring Assembly
• Parts Pack(s): None
• Shock Absorber Body End Measuring Point: Center of Loop
• Shock Absorber Rod End Measuring Point: Center of Cross Pin
• Travel Length (IN): 9.125
• Travel Length (MM): 231.8
• Upper Mount Code: XP7
• Upper Mount Type: Cross Pin Mount - Closed Ended, 5/16" Hole ID (Both Ends) X 2.7/8" Pin Length (Hole Center to Center)
