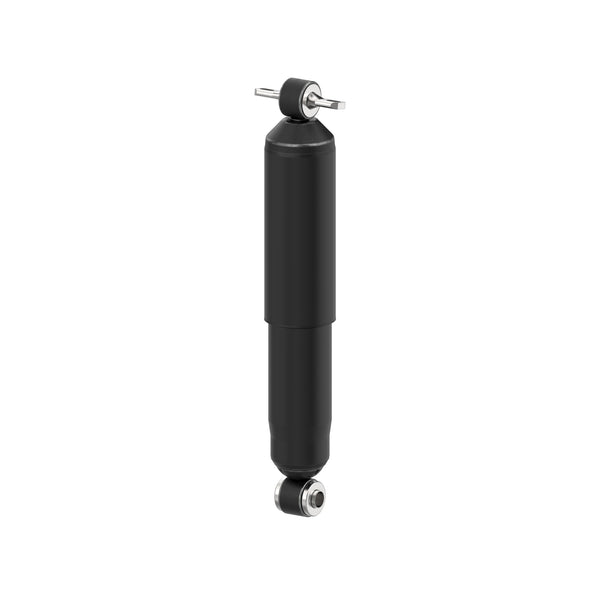

Monroe 911086 Rear Reflex Light Truck Shock Absorber Cadillac Escalade, Chevrolet, GMC

Monroe Reflex Light Truck Shock Absorber 911086 for Chevrolet Express 2500, 3500

The Monroe Reflex Light Truck 911086 is a premium shock absorber specifically engineered for vehicles with a high center of gravity, such as light trucks, SUVs, and full-size vans. Utilizing patented ASD (Acceleration Sensitive Damping) technology, this shock automatically adjusts to road conditions by sensing impact speed. This provides a unique balance of a smooth, comfortable ride during normal cruising and firm, aggressive control when the vehicle encounters rough terrain or sudden maneuvers.

This series is ideal for drivers who use their vans for both daily commuting and demanding tasks like towing or hauling. By reducing vehicle sway and "pitch", the Reflex shock helps maintain a level and stable platform, significantly improving driver confidence and passenger comfort.

Features of the Monroe Reflex Light Truck 911086:

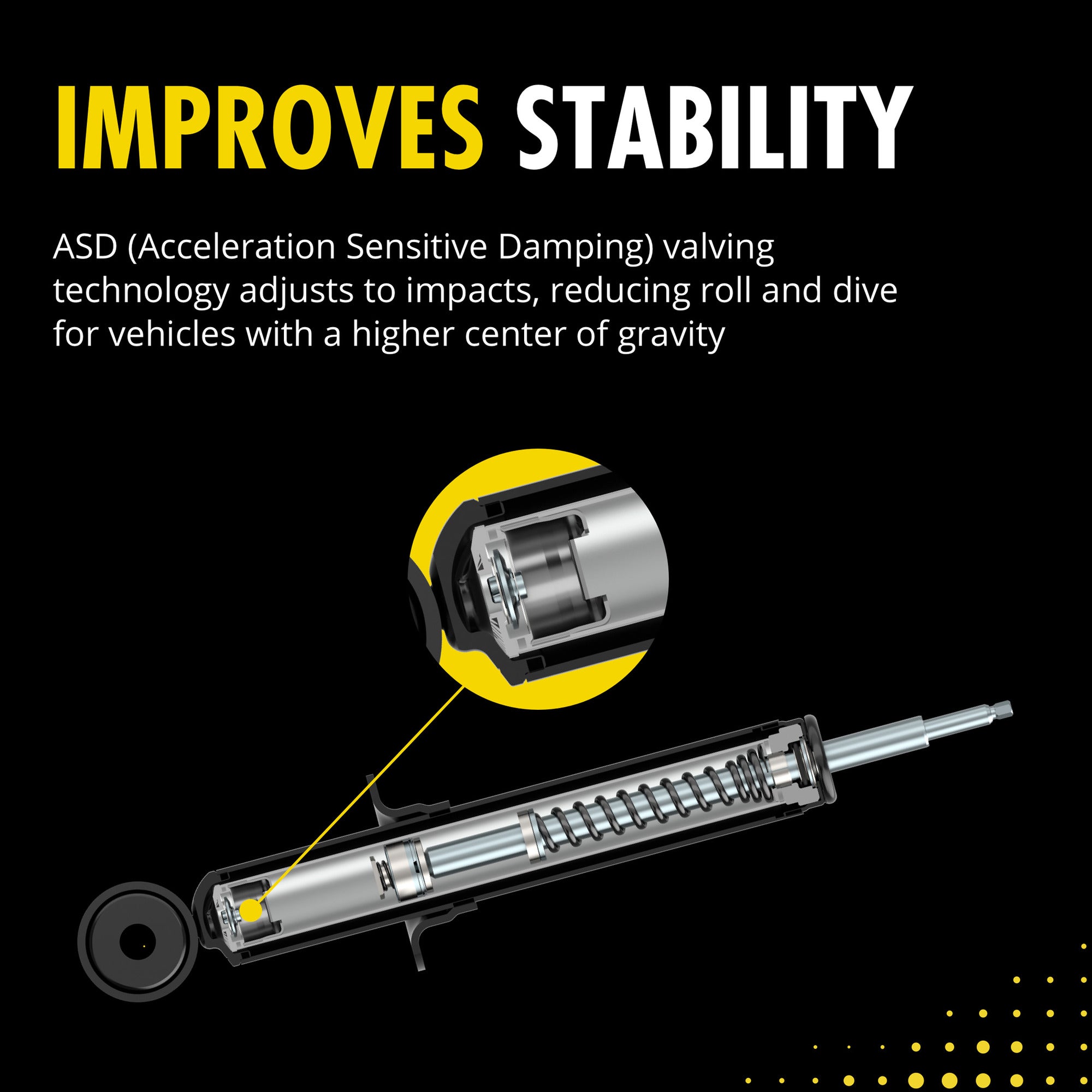

• Acceleration Sensitive Damping (ASD): A specialized valving system that instantly transitions from soft to firm damping based on the speed of the impact.

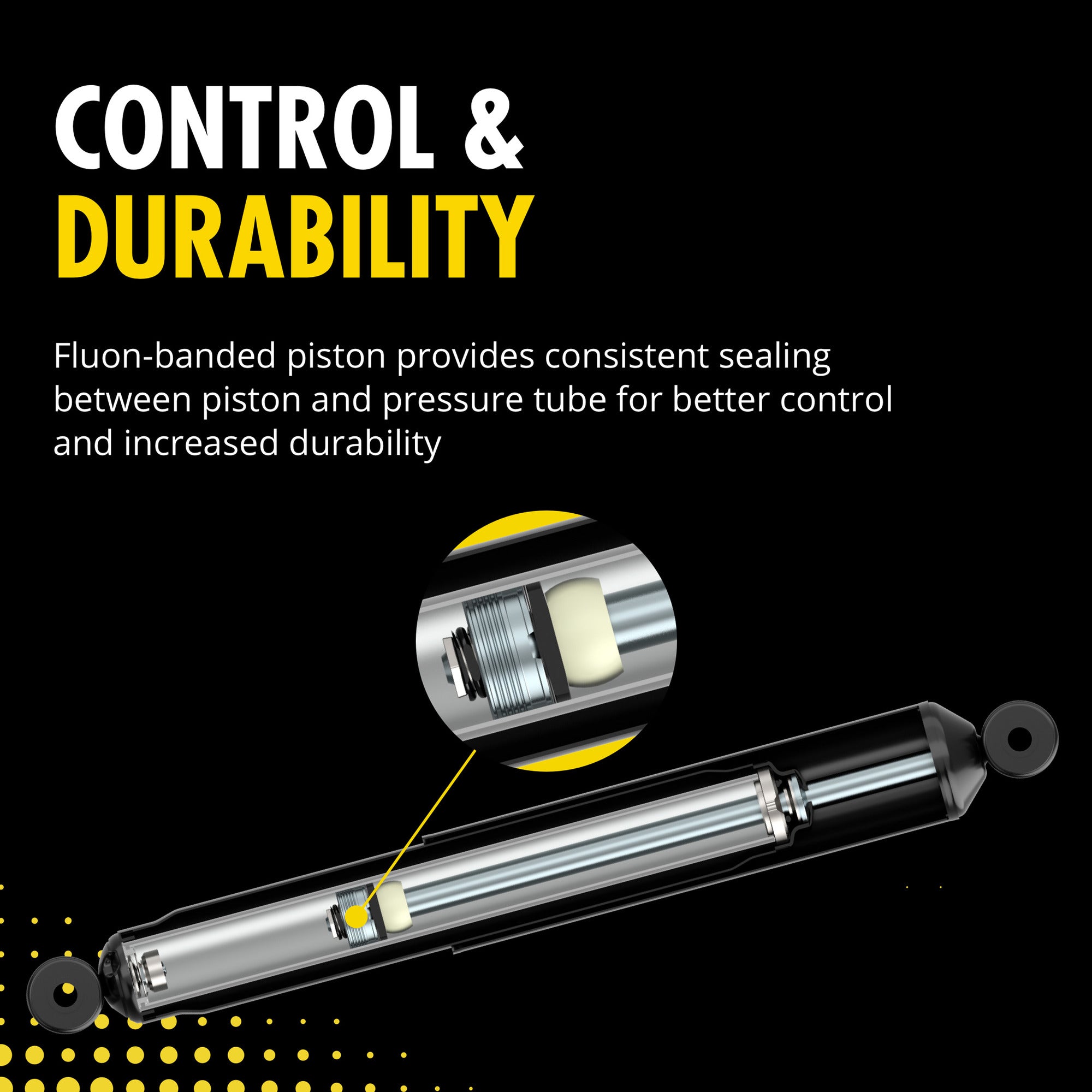

• Fluon-Banded Piston: Provides a consistent seal between the piston and pressure tube for better control and increased durability.

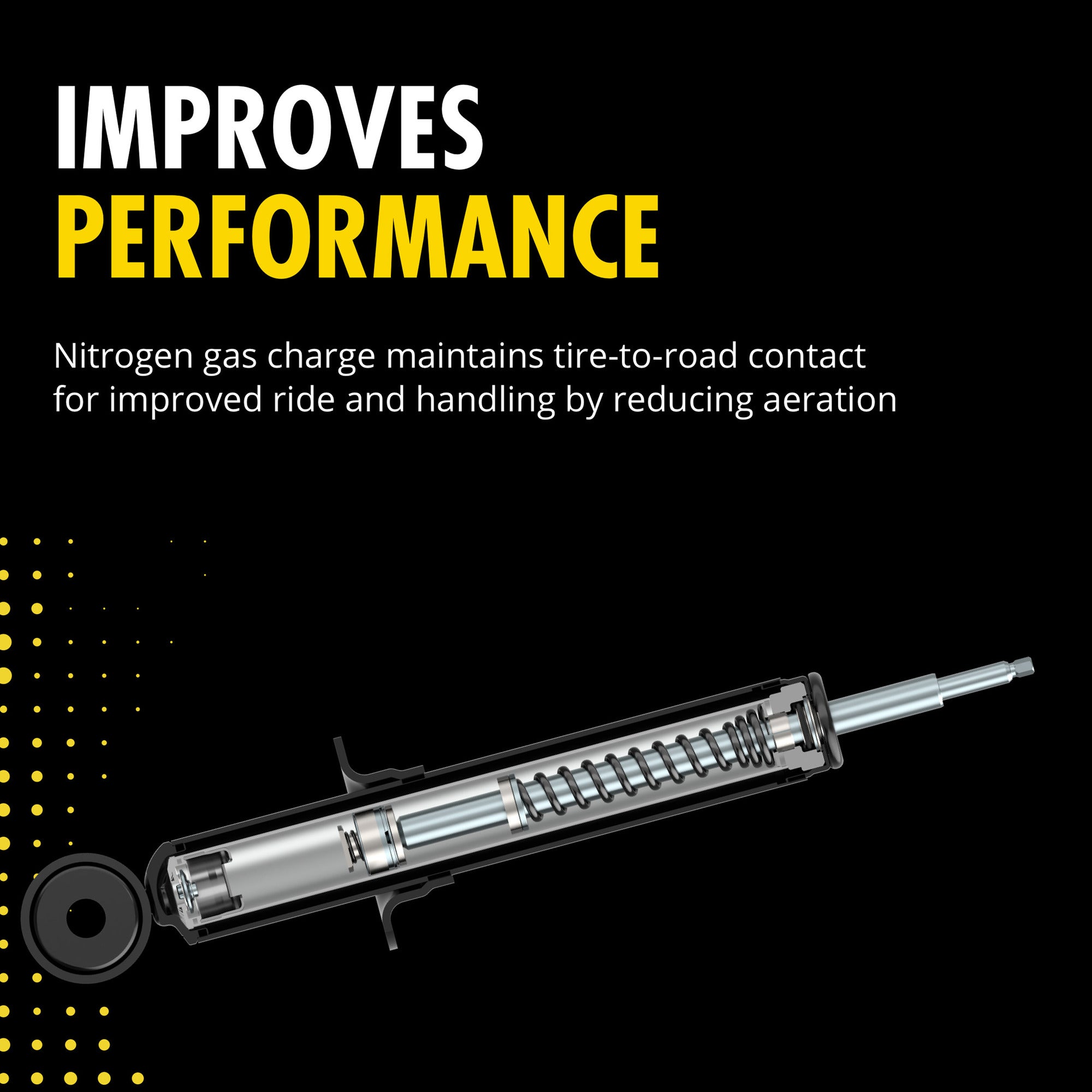

• Nitrogen Gas Charged: Improves ride and handling by reducing aeration and maintaining consistent tire-to-road contact.

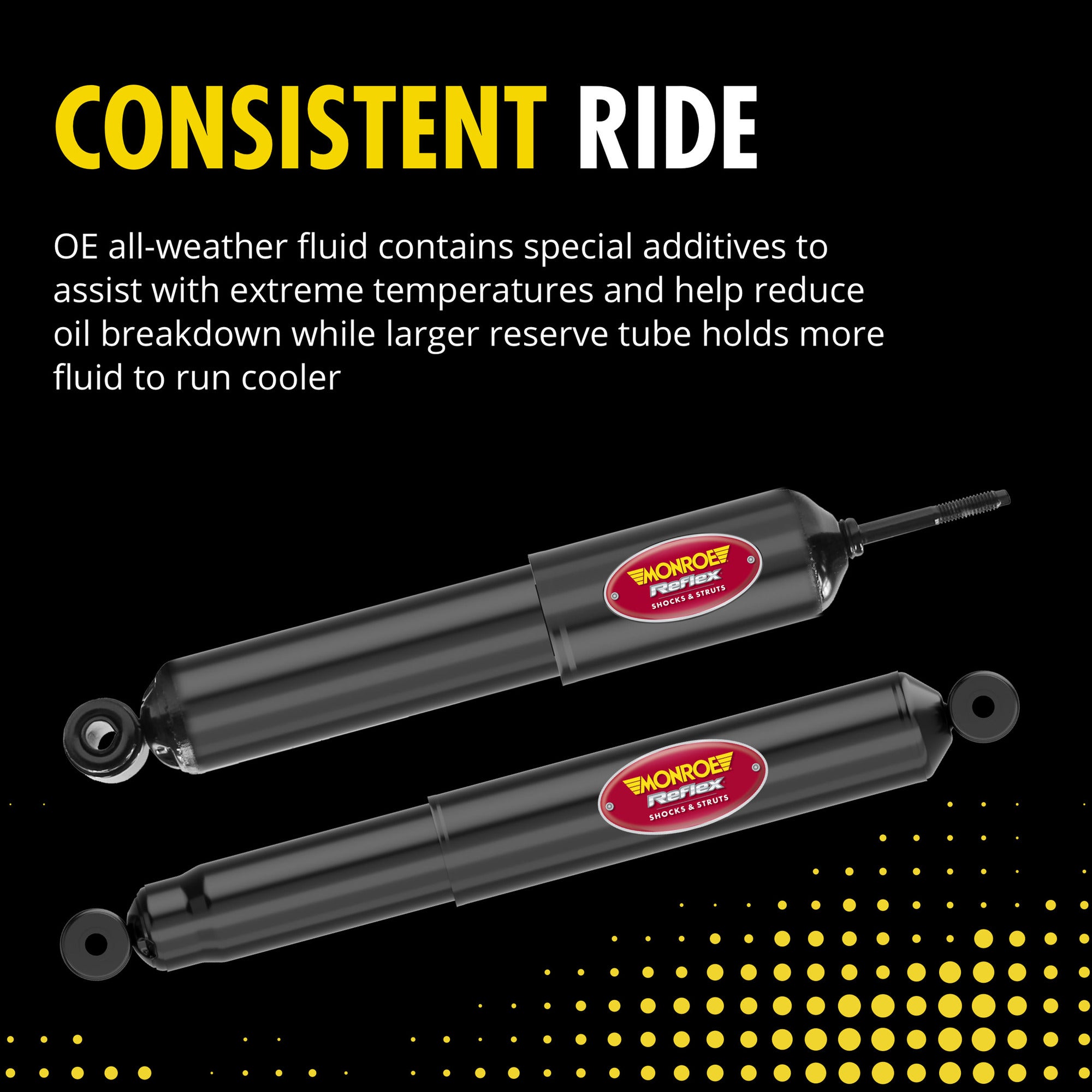

• All-Weather Fluid: Contains special modifiers to handle extreme temperatures without changing viscosity, ensuring consistent damping.
• Hardened Chrome Piston Rod: Precision-ground for consistent performance and a long-lasting seal.

Benefits of the Monroe Reflex Light Truck 911086:

• Reduces Body Roll and Sway: Specifically tuned to keep high-profile vehicles more stable during cornering and emergency maneuvers.
• Improved Handling Precision: Minimizes "nose dive" during braking and "squat" during acceleration for a more controlled feel.
• Enhanced Off-Road and Towing Control: Automatically firms up when it senses the high-impact forces of rough roads or heavy trailers.
• Consistent Ride Comfort: Filters out minor road harshness on the highway while providing maximum support when it matters most.

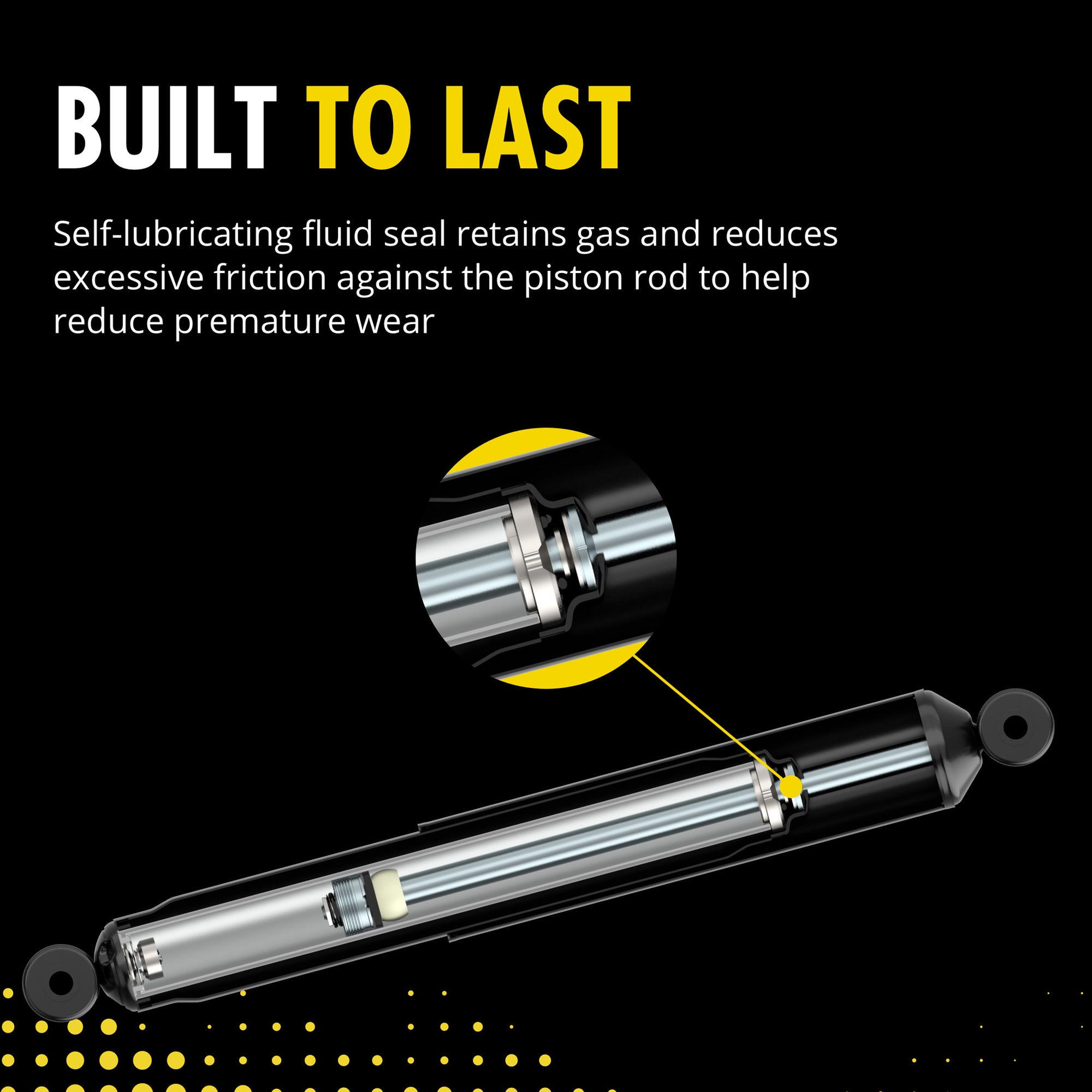

• Long-Term Reliability: Built with a self-lubricating fluid seal designed to retain gas and reduce friction against the piston rod.

Specifications of the 911086

• Active or Passive Suspension: Passive
• Adjustable Compression: No
• Adjustable Rebound: No
• Adjustable Ride Height: No
• Compressed Length (IN): 14.75
• Compressed Length (MM): 374.7
• Dust Shield Included: Yes
• Dust Shield Material : Metal
• Extended Length (IN): 23.75
• Extended Length (MM): 603.3
• Gas Charged: Yes
• Grade Type: Premium
• Hydraulic Lockout: No
• Includes Bump Stop: No
• Internal Rebound Bumper: Yes
• Lower Mount Code: LS47
• Lower Mount Type: Loop Bushing and Sleeve Mount - 9/16" Sleeve ID X 1.5/8" Sleeve OAL
• Lower Mount Type: Loop (Eyelet) Bushing and Sleeve
• Mounting Hardware Included: No
• Part Description: Shock Absorber
• Parts Pack(s): None
• Shock Absorber Body End Measuring Point: Center of Loop
• Shock Absorber Rod End Measuring Point: Center of Cross Pin
• Travel Length (IN): 9
• Travel Length (MM): 228.6
• Upper Mount Code: XP7
• Upper Mount Type: Cross Pin Mount - Closed Ended, 5/16" Hole ID (Both Ends) X 2.7/8" Pin Length (Hole Center to Center)
