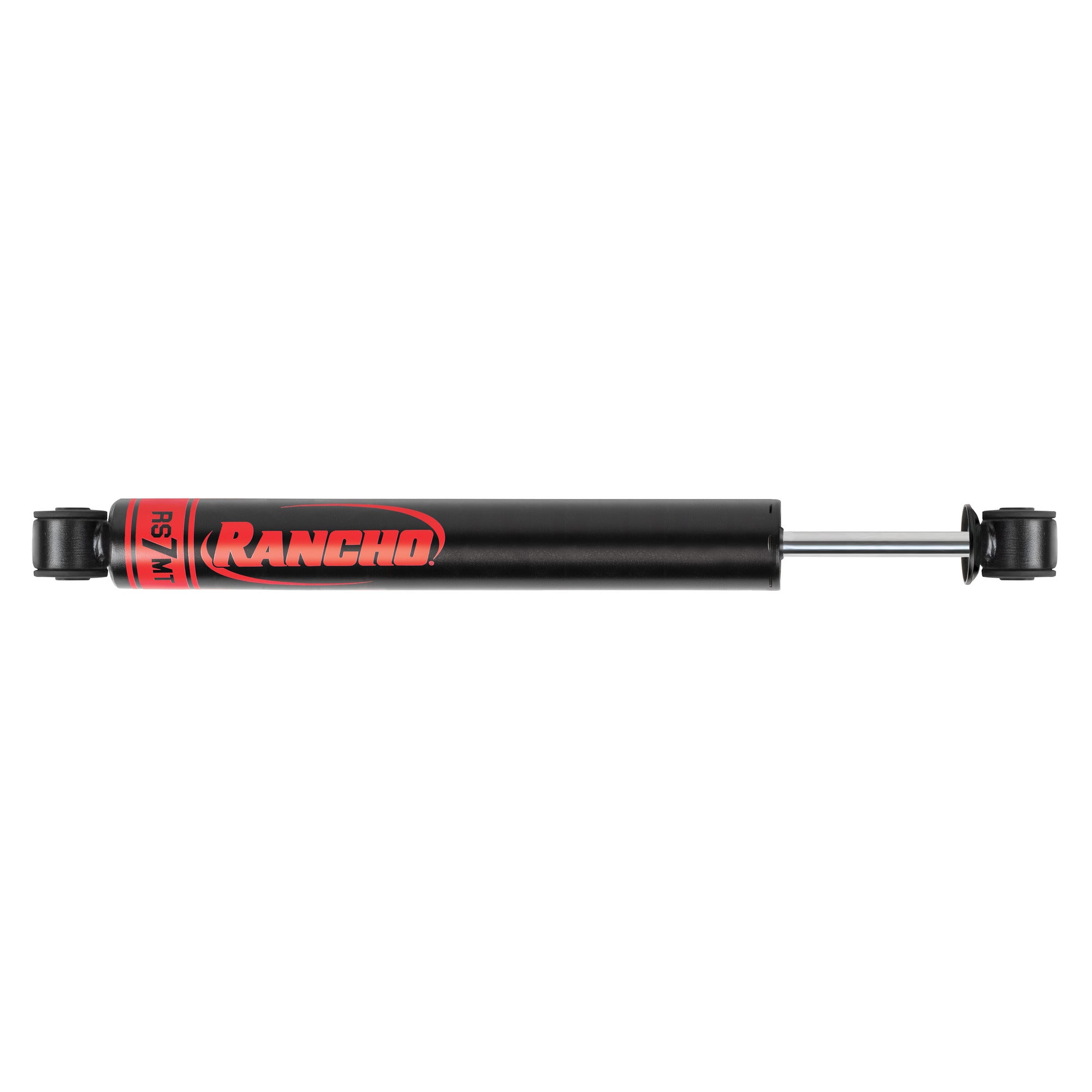

Rancho RS77198 Rear RS7MT Shock Chevrolet, Dodge, GMC

Rancho RS7MT Shock RS77198

Upgrade your Chevrolet, Dodge, GMC with Rancho RS7MT Shock RS77198, designed for precision on-road and off-road handling. These monotube shocks are perfect for extreme off-road use and larger tire packages, offering superior heat dissipation and durability. Engineered with advanced deflective disc valving and a dirt wiper sealing system, the RS7MT shocks provide a smooth, controlled ride, even in the most challenging conditions.

Features of the RS77198:

• Deflective Disc Valving: This technology offers digressive, linear, or progressive tuning based on application requirements, providing precision handling and enhanced performance on and off the road.
• 14mm Hardened Chrome Piston Rod: Built to resist scuffs and corrosion, this durable rod ensures long-lasting performance, even in harsh driving conditions.
• 2-Inch Monotube Body: The large body is filled with all-weather fluid, allowing for cooler operation and increased control. It can withstand extreme temperatures ranging from -40°F to 248°F.
• High-Pressure Nitrogen Gas: This gas maintains constant pressure against the hydraulic oil, reducing aeration and preventing shock fade, ensuring consistent damping performance.
• Integrated Dirt Wiper Sealing System: This system prevents moisture, dirt, and debris from entering the shock, protecting the internal components and prolonging the shock's life.
• Internal Rebound Bumper: Reduces noise, vibration, and harshness, ensuring a smoother ride over various terrains.

Benefits of the RS77198:

• Precision Handling: The advanced deflective disc valving system offers customized tuning to match the specific needs of your vehicle, improving both on-road handling and off-road performance.
• Extreme Durability: With a hardened chrome piston rod and double-welded loops at stress points, these shocks are built to handle the most challenging conditions and resist wear over time.
• Smooth Ride: Features like the internal rebound bumper and PTFE-banded piston ensure a quieter, smoother ride by absorbing vibrations and providing responsive handling.
• Improved Temperature Resistance: These shocks can handle extreme temperature fluctuations and maintain reliable performance regardless of the environment.
• Greater Protection: The integrated dirt wiper sealing system and fluon-banded piston ensure that your shocks remain free of contaminants, extending their lifespan.

Specifications of the RS77198:

• Active or Passive Suspension: Passive
• Adjustable Damping: No
• Air Adjustable: No
• Air Ride Suspension: No
• Bearing Plate Included: No
• Body Color: Black
• Body Diameter (in): 1.97
• Body Diameter (mm): 50
• Boot Included: No
• Coil Over Springs Included: No
• Color: Black
• Compressed Length (in): 16.43
• Compressed Length (mm): 417.3
• Cylinder Color: Black
• Cylinder Material: Steel
• Dust Shield Included: No
• Extended Length (in): 25.2
• Extended Length (mm): 640.1
• Finish: Painted
• Gas Charged: Yes
• Grade Type: Performance
• Grade Type: Progressive
• Hydraulic Lockout: No
• Includes Bump Stop: No
• Internal Construction Type: Single Tube
• Internal Rebound Bumper: Yes
• Internal Rebound Spring: No
• Lower Mount Code: LS92
• Lower Mount Type: 0
• Mounting Hardware Included: No
• New Or Remanufactured: New
• Parts Pack(s): None
• Rod Diameter (in): 0.5512
• Rod Diameter (mm): 14
• Shaft Material: Chromed
• Shock Absorber Body End Measuring Point: Center of Loop
• Shock Absorber Bore Size (in): 1.811
• Shock Absorber Bore Size (mm): 46
• Shock Absorber Rod End Measuring Point: Center of Loop
• Spring Included: No
• Spring Isolators Included: No
• Spring Seat Included: No
• Travel Length (in): 8.77
• Travel Length (mm): 222.8
• Type: Telescopic
• Upper Mount Code: LS92
• Upper Mount Type: 0

Upgrade your vehicle with Rancho RS7MT Shock RS77198 and enjoy superior handling, durability, and ride comfort. Whether tackling challenging off-road trails or driving through varying road conditions, these shocks ensure optimal performance and longevity.

For more information or to find the perfect fit for your vehicle, contact us at Shockwarehouse. We're here to help you optimize your vehicle's suspension system.
